Sanlixin

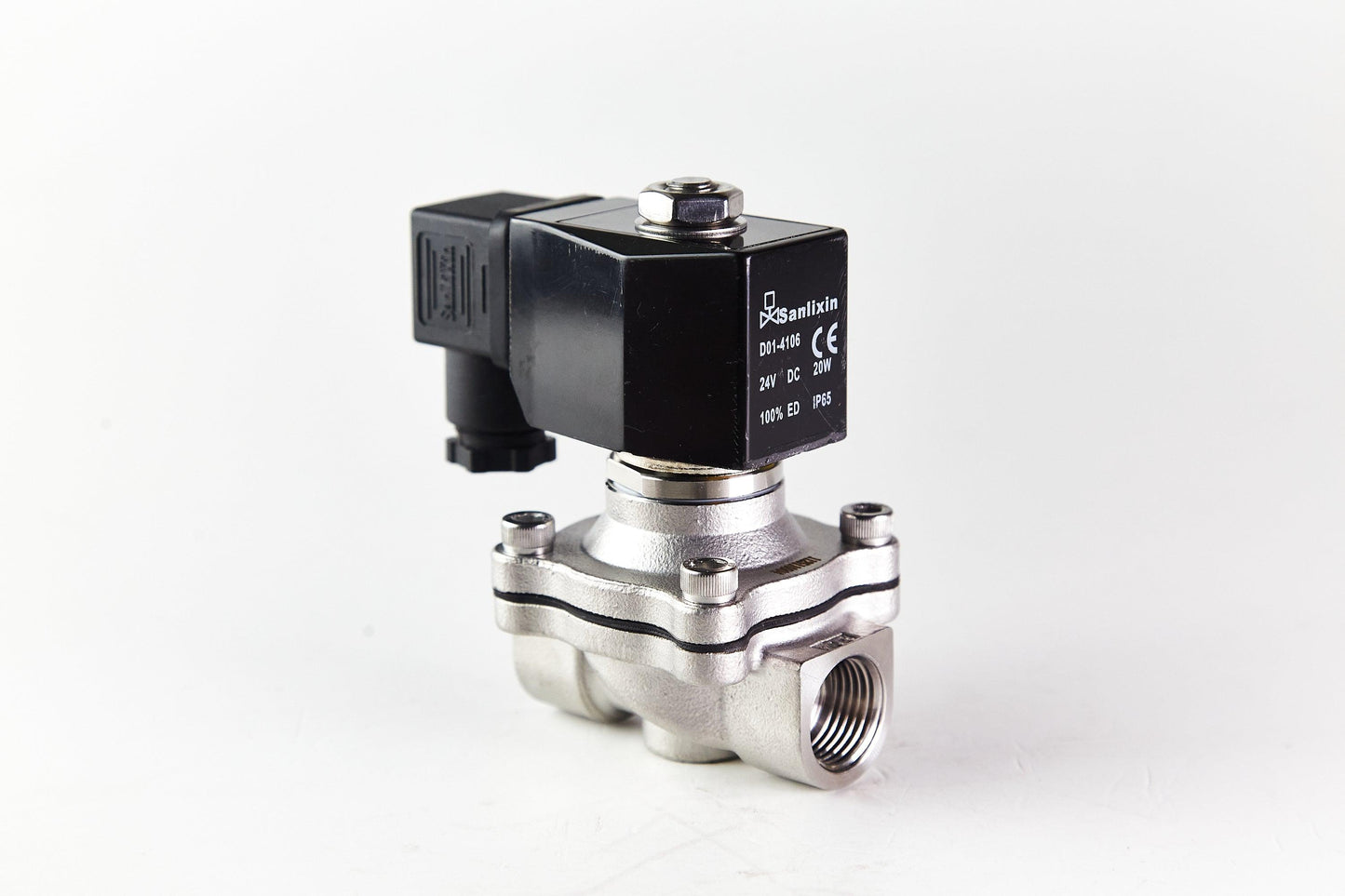

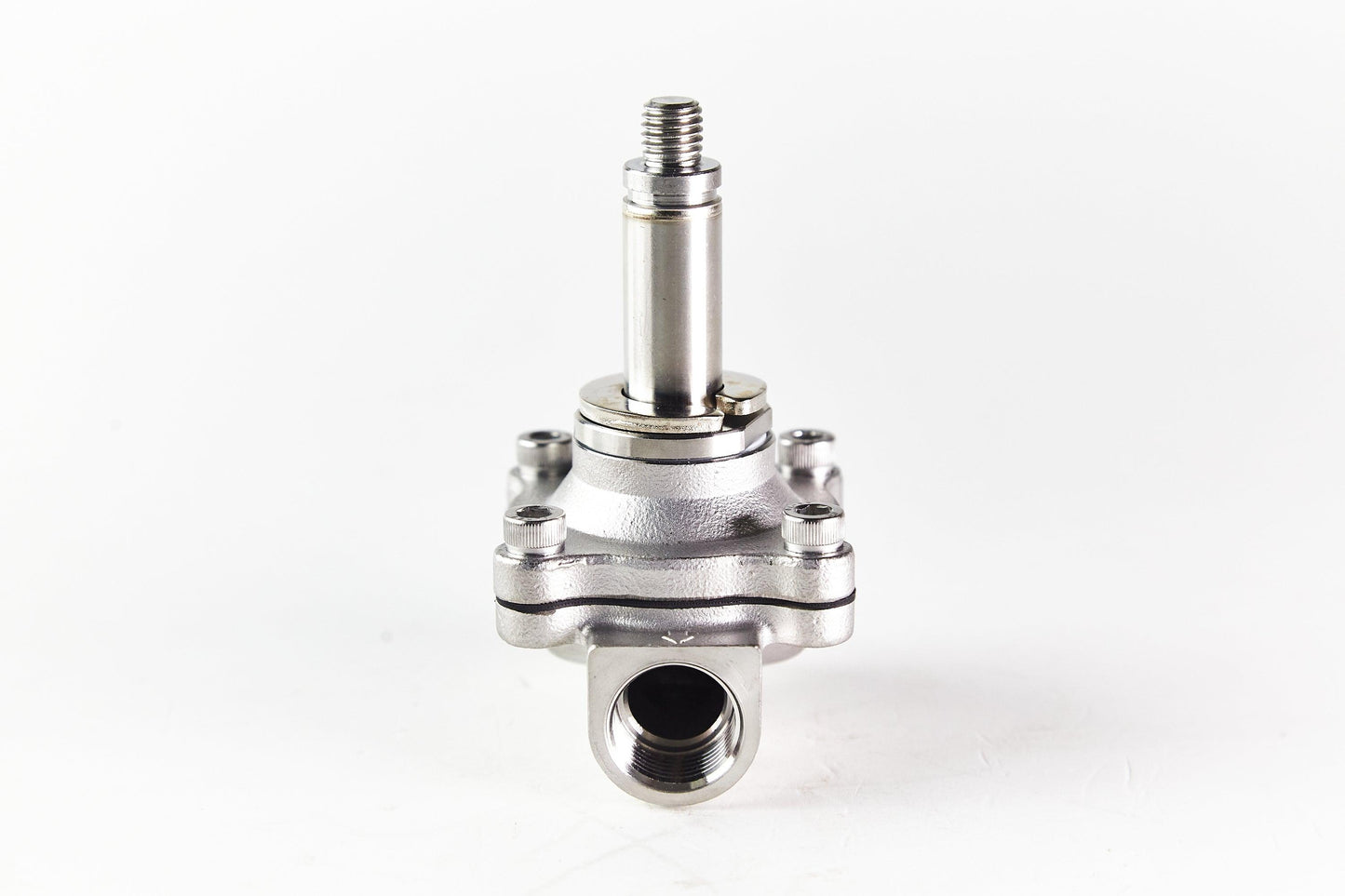

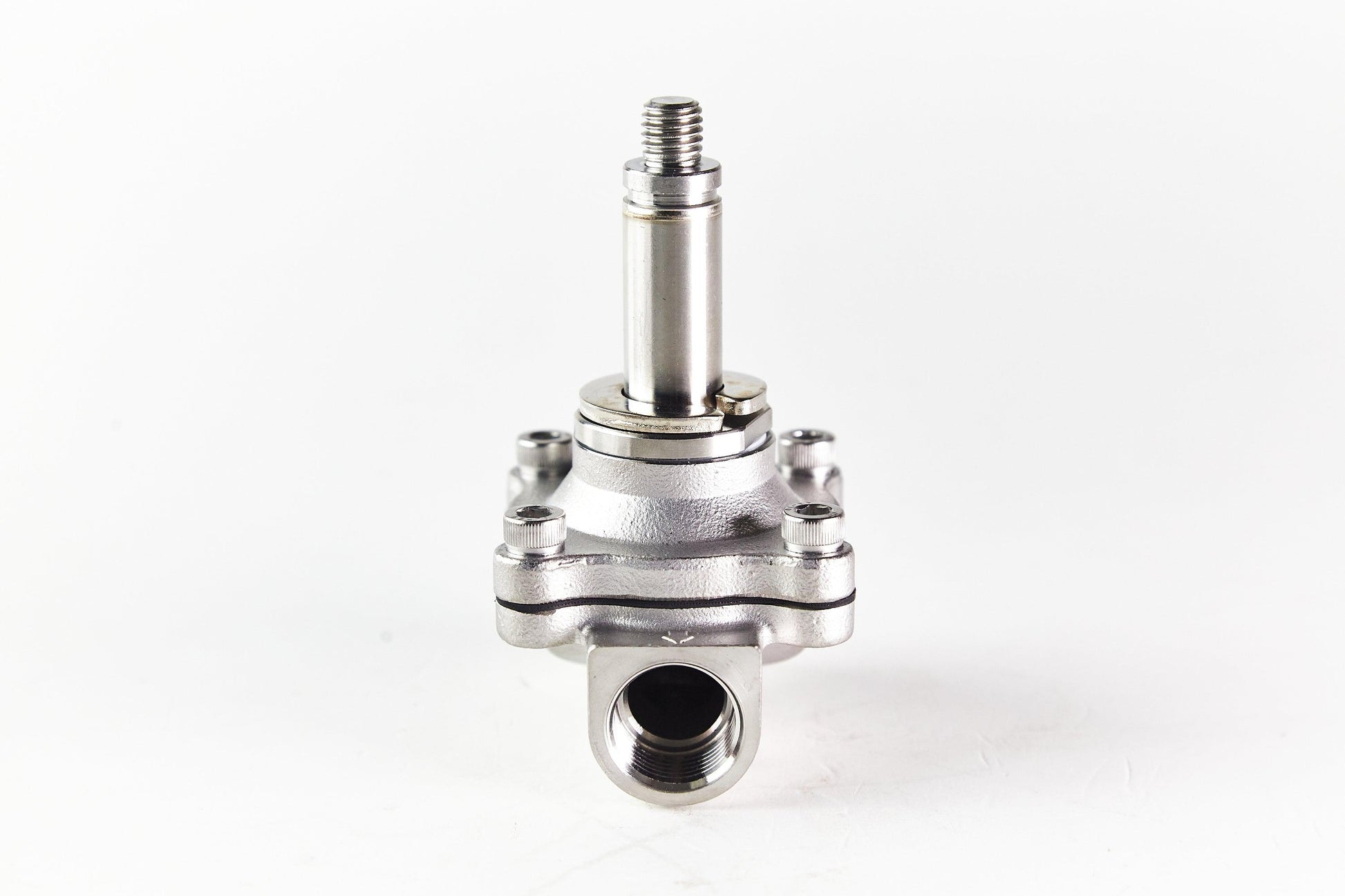

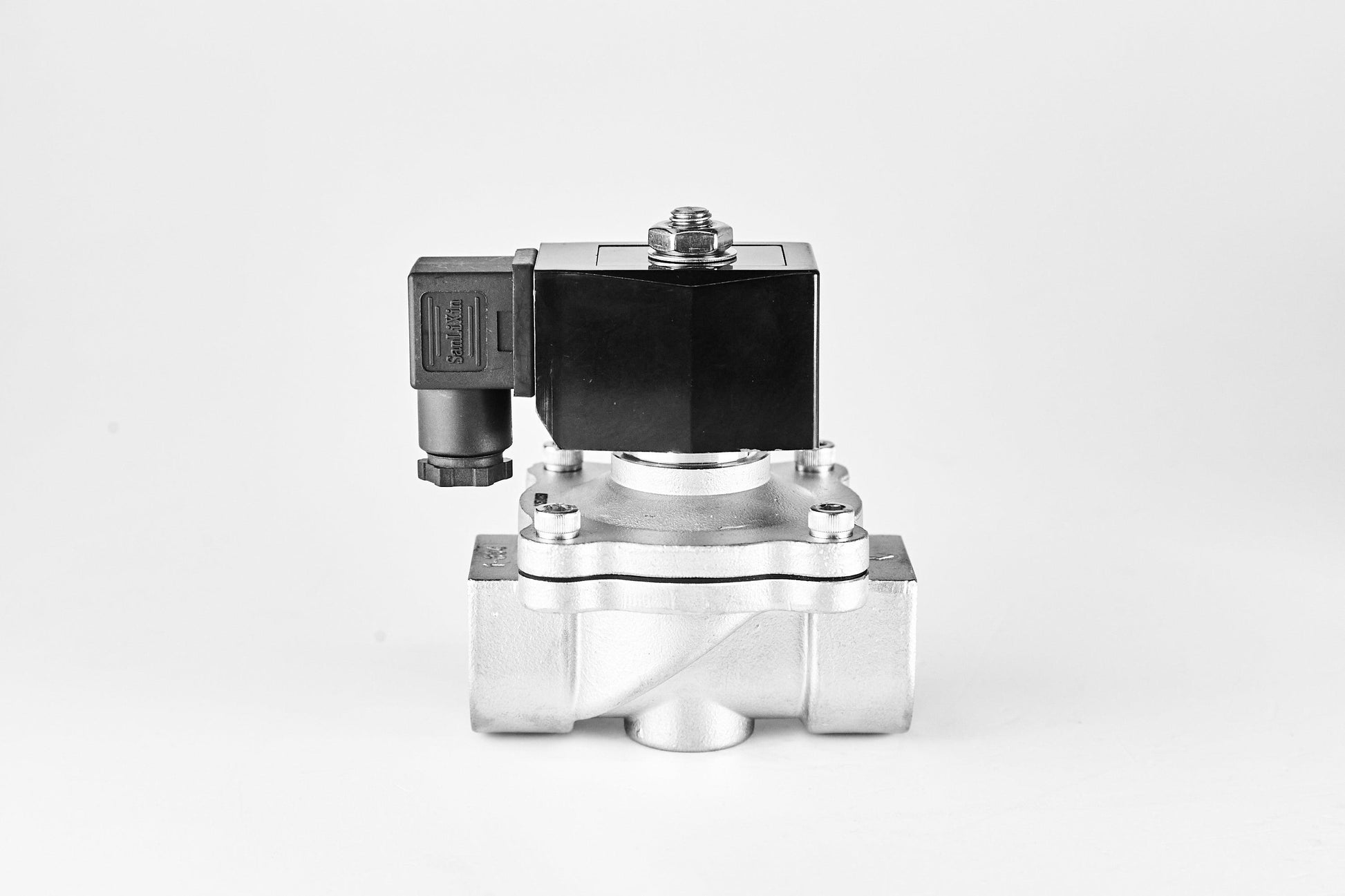

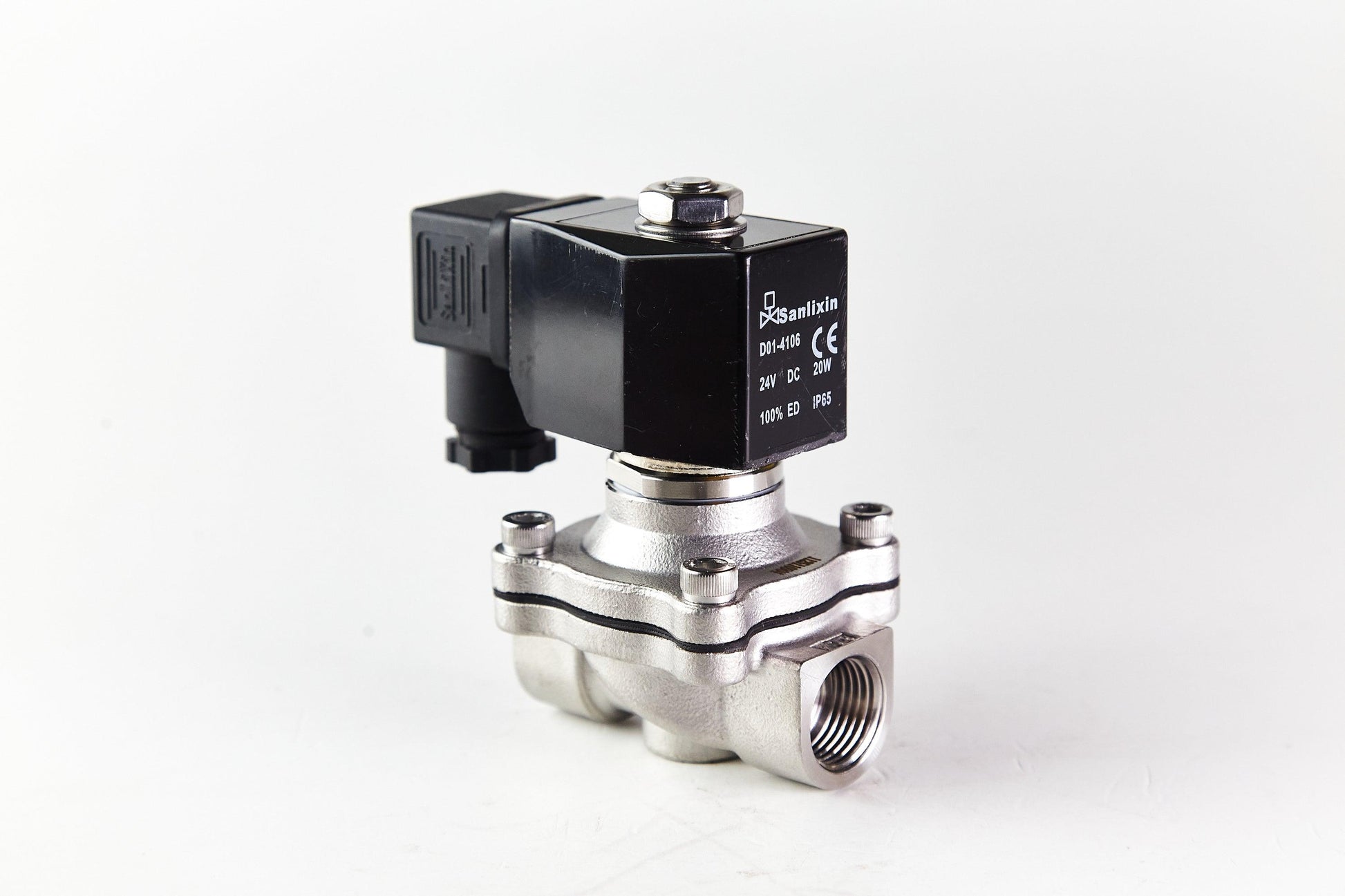

ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed
ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed
Regular price
£55.22
Regular price
Sale price
£55.22
Unit price
/
per
We have 16 in stock
Couldn't load pickup availability
Brand: Sanlixin
Body Material: Stainless Steel with Viton Seals
Ambient Temperature: 0°C - 65°C
Fluids Temperature: 0°C - 80°C
Working Pressure (Bar): AC: 0 - 10 | DC: 0 - 6
Flow as arrow, mounts in any position
Best position is solenoid vertical and upright direction.

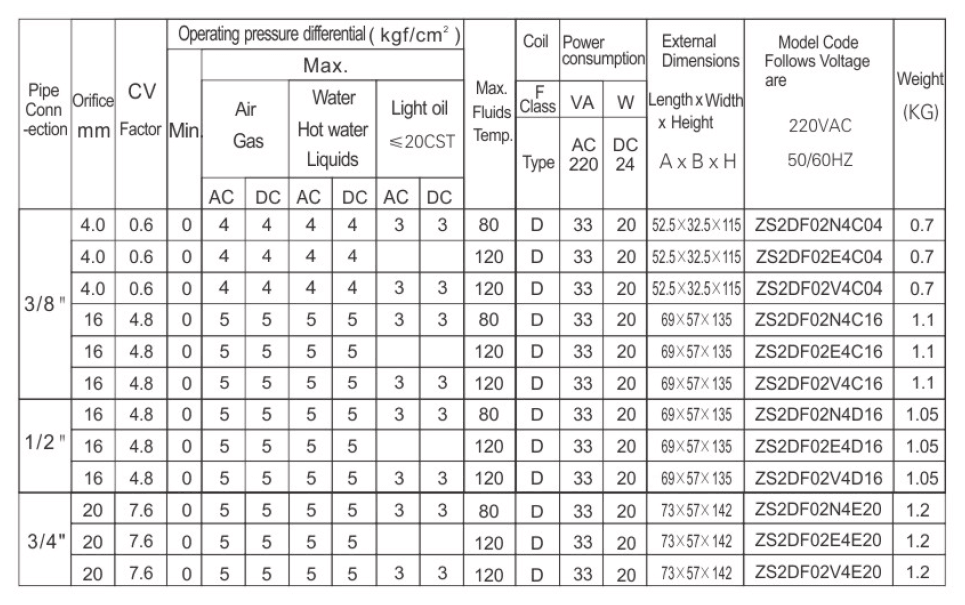

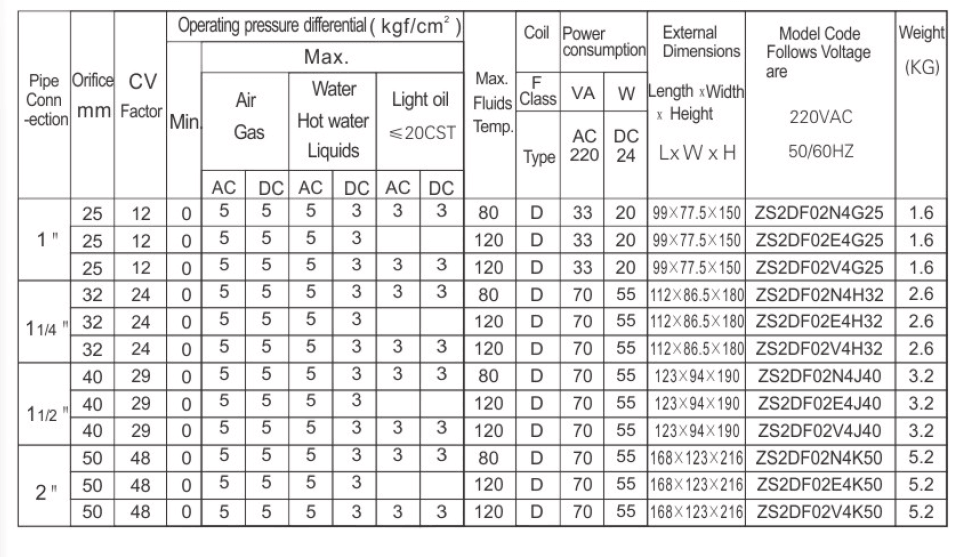

Part Code | Size | Coil | Orifice | CV Factor | Dimensions (LxWxH) |
---|---|---|---|---|---|
ZS1DF**V4D10 | 1/2" | No Coil | 16 | 4.8 | 69 x 57 x 106 |
ZS1DF**V4D10 c/w D01-4106 | 24 VDC | ||||
ZS1DF**V4D10 c/w D03-5104 | 24 VAC | ||||
ZS1DF**V4D10 c/w D01-4102 | 110 VAC | ||||
ZS1DF**V4D10 c/w D01-4101 | 220 VAC | ||||
ZS1DF**V4E20 | 3/4" | No Coil | 20 | 7.6 | 73 x 57 x 114 |
ZS1DF**V4E20 c/w D01-4106 | 24 VDC | ||||
ZS1DF**V4E20 c/w D03-5104 | 24 VAC | ||||
ZS1DF**V4E20 c/w D01-4102 | 110 VAC | ||||
ZS1DF**V4E20 c/w D01-4101 | 220 VAC | ||||
ZS1DF**V4G25 | 1" | No Coil | 25 | 12 | 99 x 77 x 121 |
ZS1DF**V4G25 c/w D01-4106 | 24 VDC | ||||
ZS1DF**V4G25 c/w D03-5104 | 24 VAC | ||||
ZS1DF**V4G25 c/w D01-4102 | 110 VAC | ||||
ZS1DF**V4G25 c/w D01-4101 | 220 VAC | ||||
ZS1DF**V4H32 | 1.1/4" | No Coil | 32 | 24 | 112 x 86.5 x 150 |
ZS1DF**V4H32 c/w D01-4106 | 24 VDC | ||||
ZS1DF**V4H32 c/w D03-5104 | 24 VAC | ||||
ZS1DF**V4H32 c/w D01-4102 | 110 VAC | ||||
ZS1DF**V4H32 c/w D01-4101 | 220 VAC | ||||
ZS1DF**V4J40 | 1.1/2" | No Coil | 40 | 29 | 123 x 94 x 160 |
ZS1DF**V4J40 c/w D01-4106 | 24 VDC | ||||
ZS1DF**V4J40 c/w D03-5104 | 24 VAC | ||||
ZS1DF**V4J40 c/w D01-4102 | 110 VAC | ||||
ZS1DF**V4J40 c/w D01-4101 | 220 VAC | ||||
ZS1DF**V4K50 | 2" | No Coil | 50 | 48 | 18 x 123 x 183 |
ZS1DF**V4K50 c/w D01-4106 | 24 VDC | ||||
ZS1DF**V4K50 c/w D03-5104 | 24 VAC | ||||
ZS1DF**V4K50 c/w D01-4102 | 110 VAC | ||||
ZS1DF**V4K50 c/w D01-4101 | 220 VAC |
Share

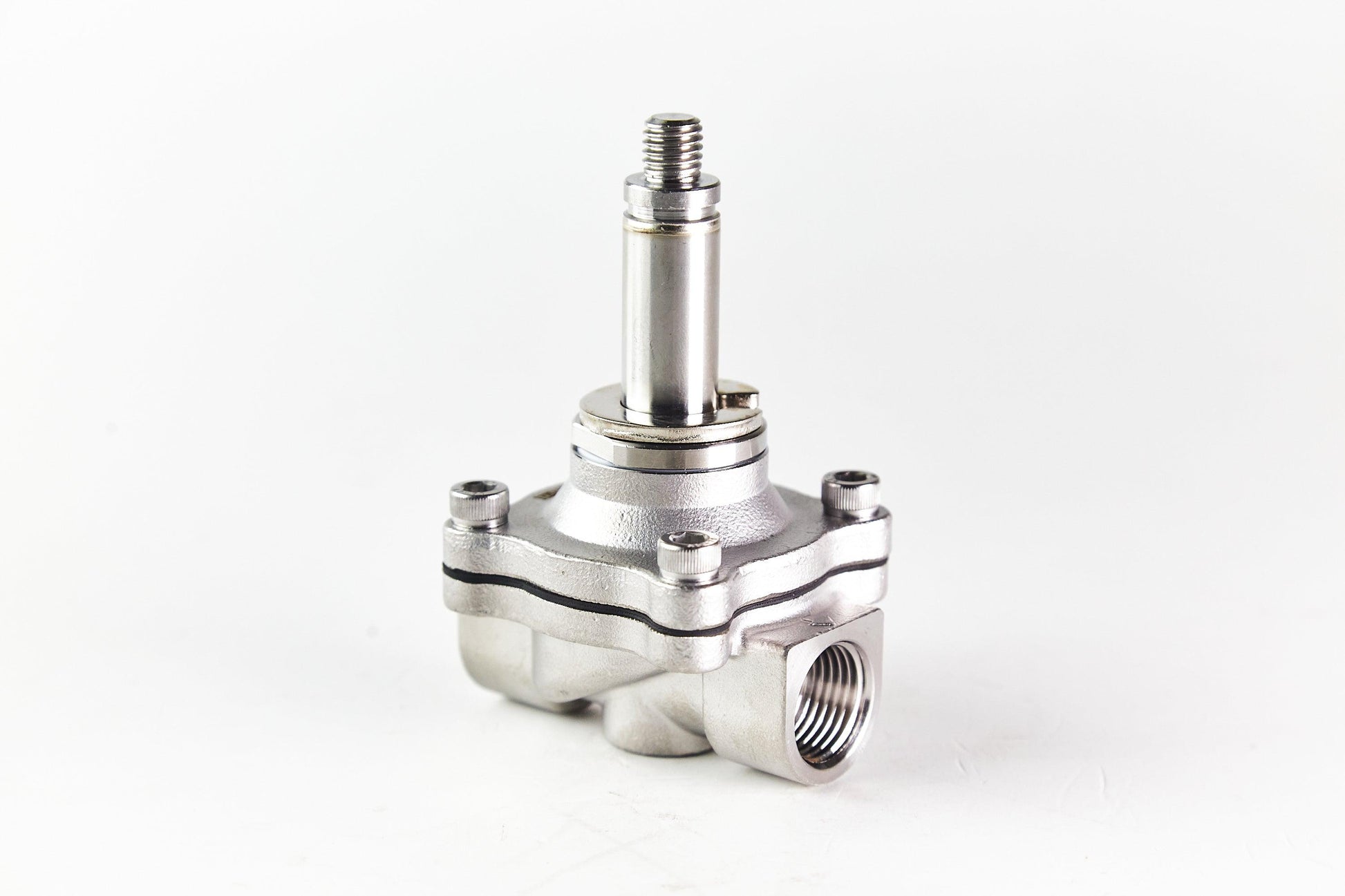

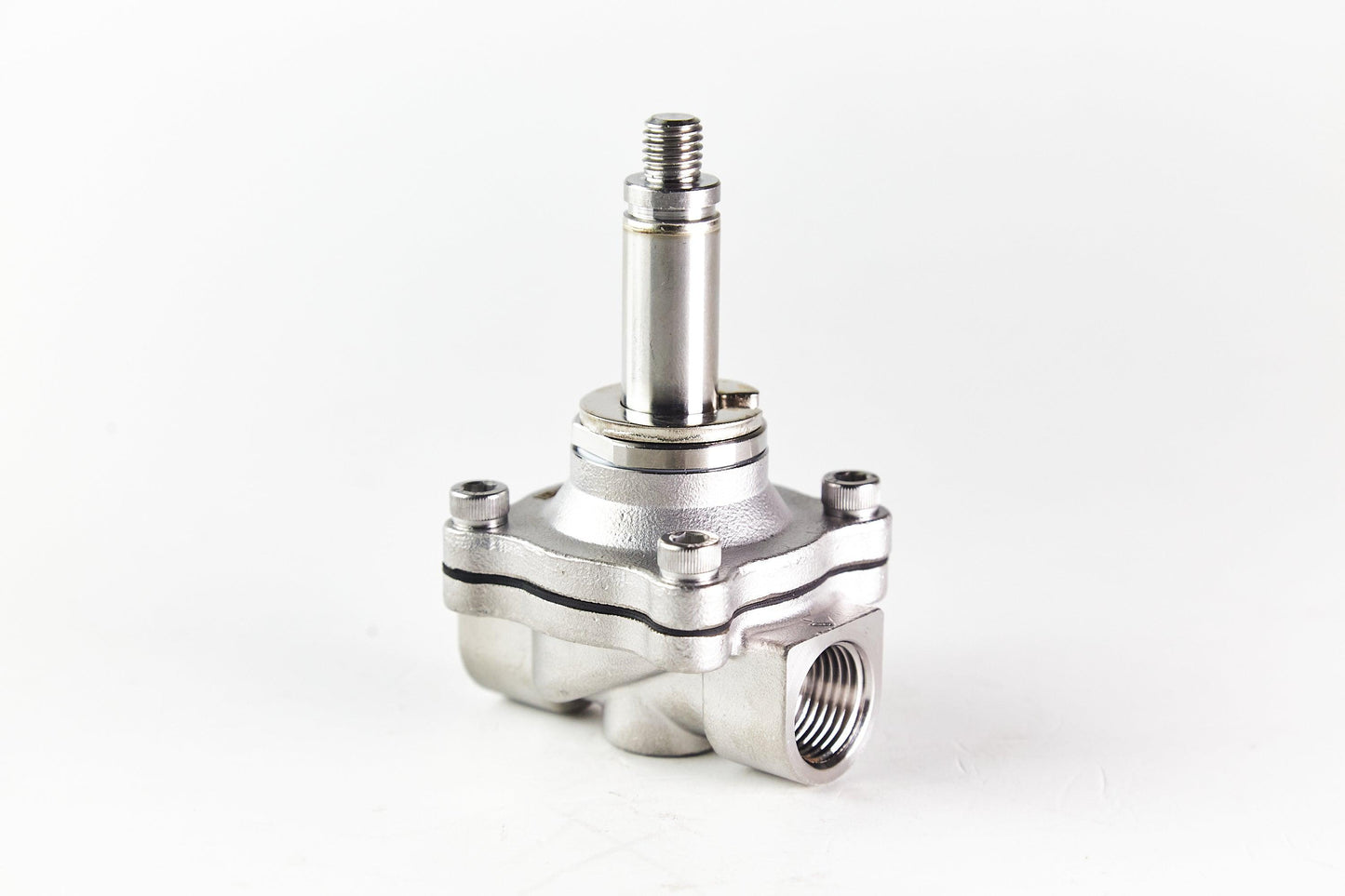

![ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed](http://aircoproducts.co.uk/cdn/shop/products/ZS1DF__V4D162.jpg?v=1668512428&width=1445)

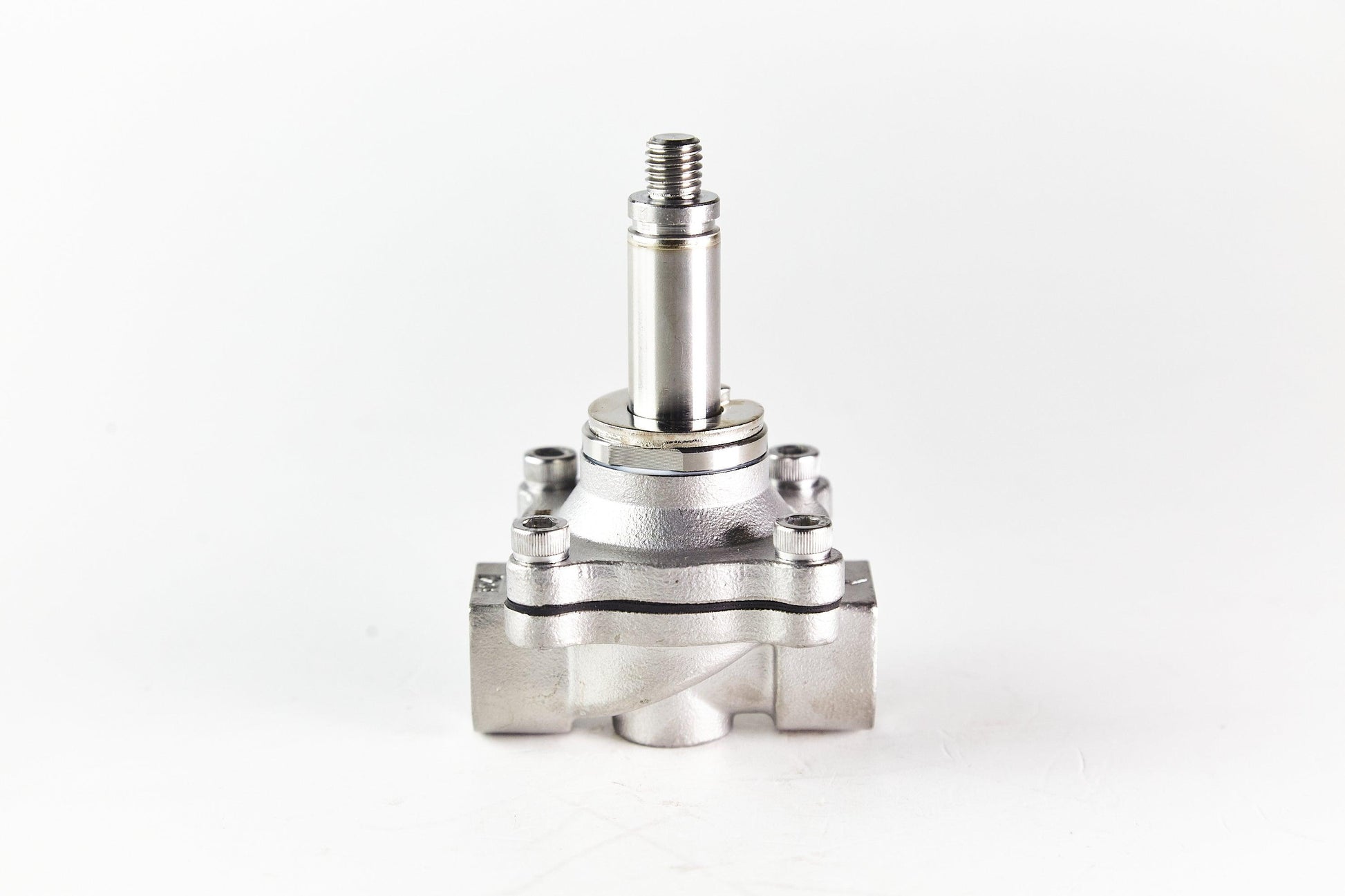

![ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed](http://aircoproducts.co.uk/cdn/shop/products/ZS1DF__V4D161.jpg?v=1668512429&width=1445)
![ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed](http://aircoproducts.co.uk/cdn/shop/products/ZS1DF__V4D163.jpg?v=1668512428&width=1445)
![ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed](http://aircoproducts.co.uk/cdn/shop/products/ZS1DF__V4D166.jpg?v=1668512429&width=1445)

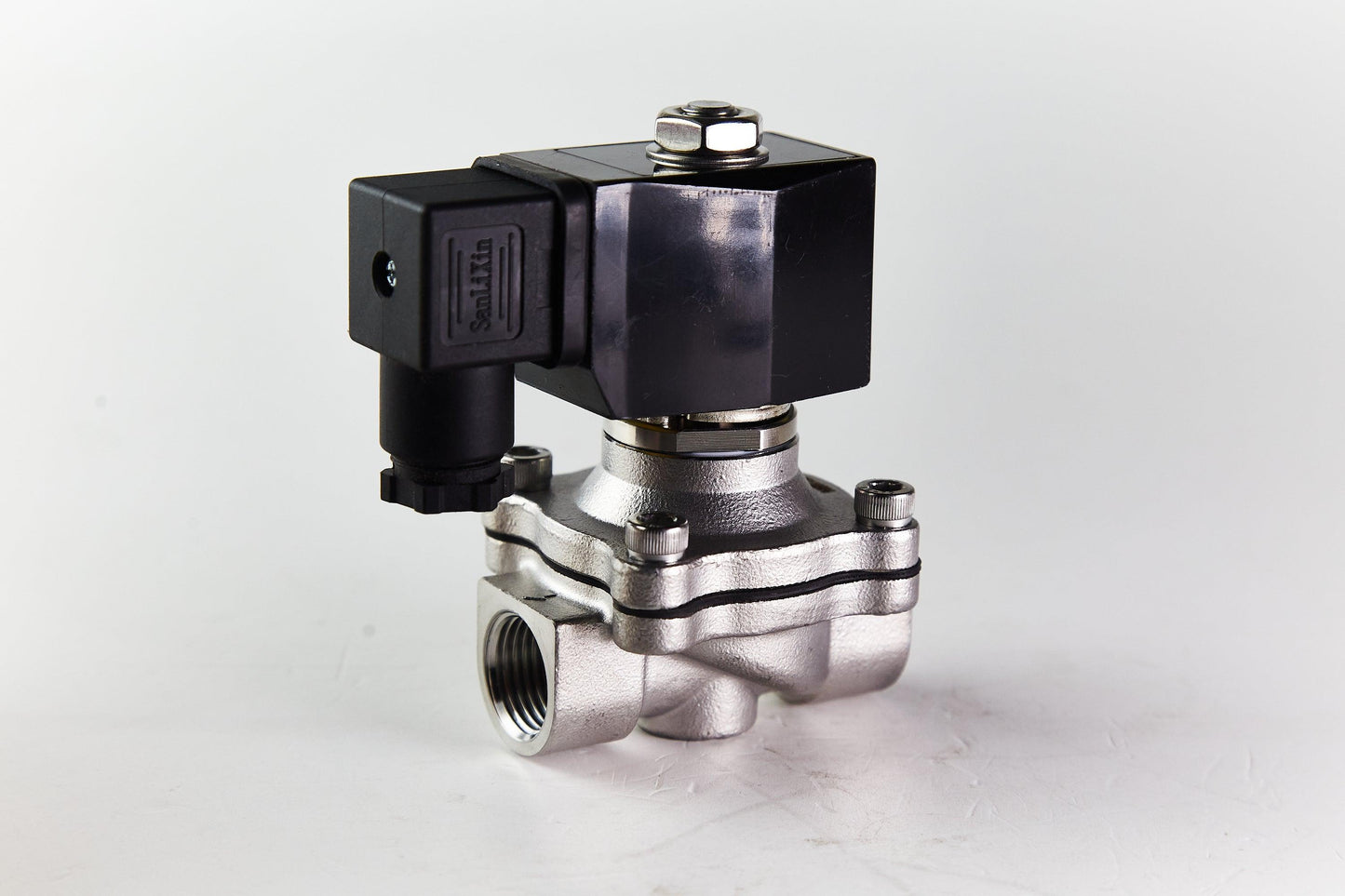

![ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed](http://aircoproducts.co.uk/cdn/shop/products/ZS1DF__V4D168.jpg?v=1668512428&width=1445)
![ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed](http://aircoproducts.co.uk/cdn/shop/products/ZS1DF__V4G253.jpg?v=1668512451&width=1445)

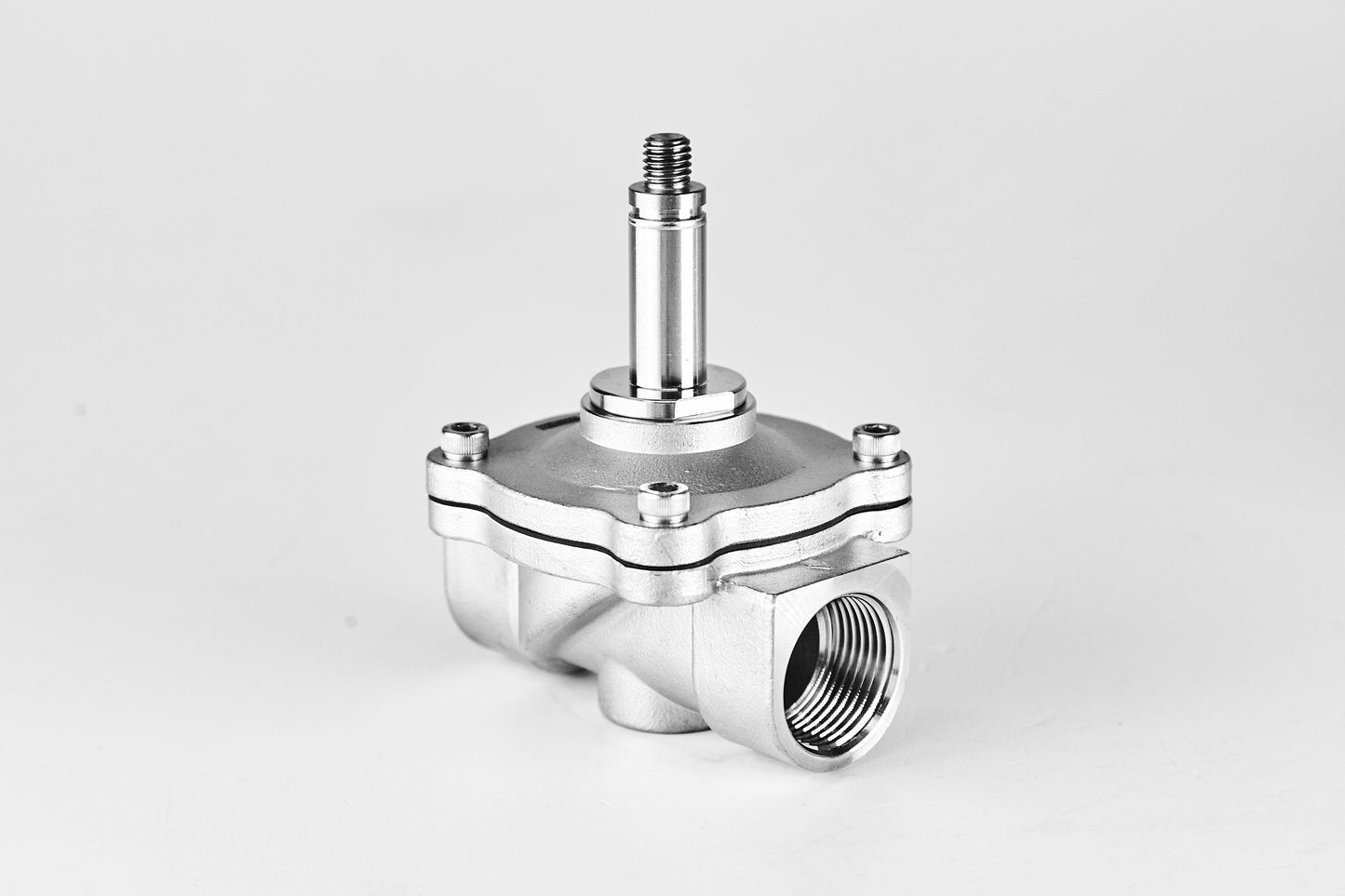

![ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed](http://aircoproducts.co.uk/cdn/shop/products/ZS1DF__V4G255.jpg?v=1668512451&width=1445)

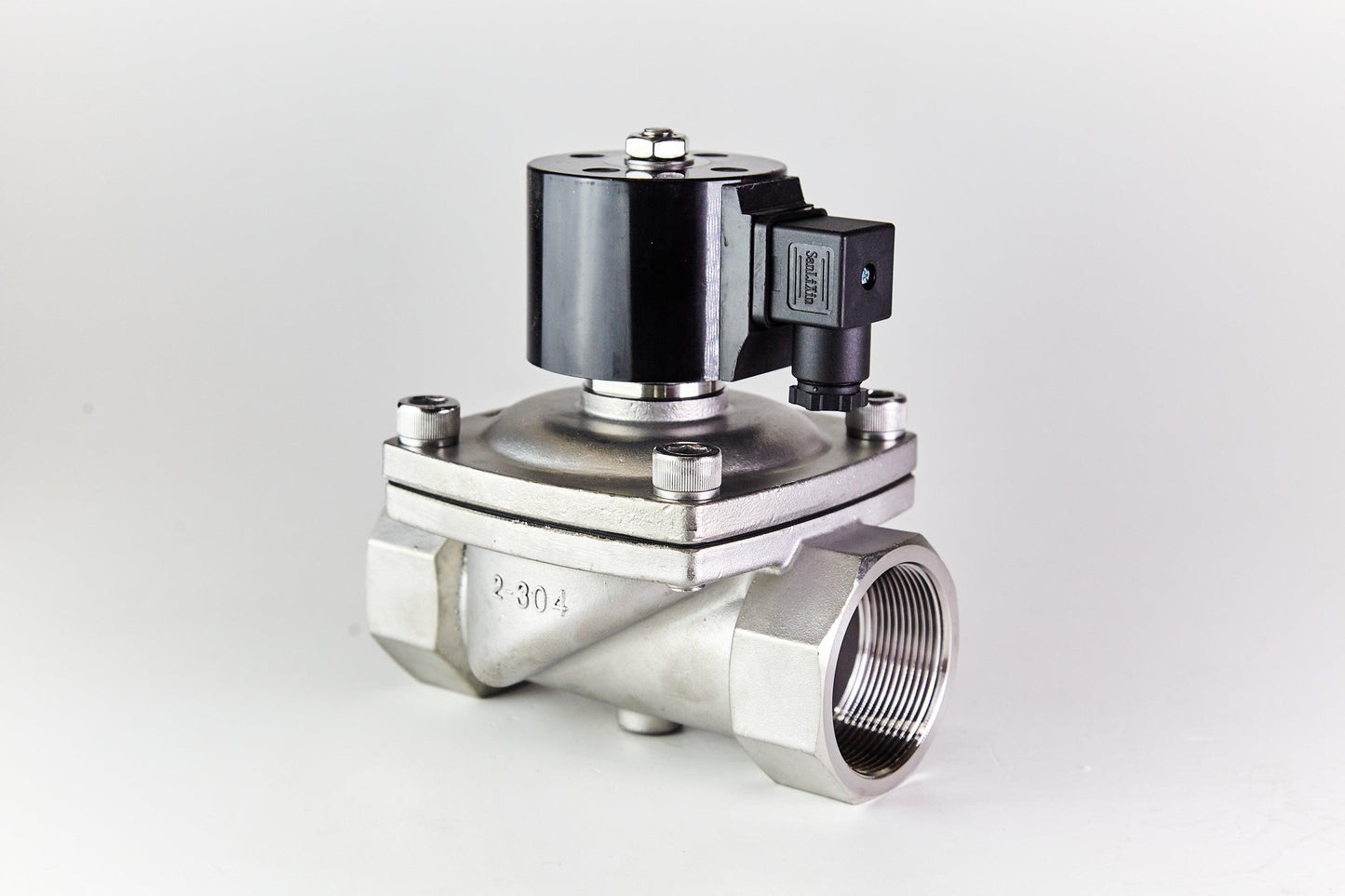

![ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed](http://aircoproducts.co.uk/cdn/shop/products/ZS1DF__V4K506.jpg?v=1668512466&width=1445)

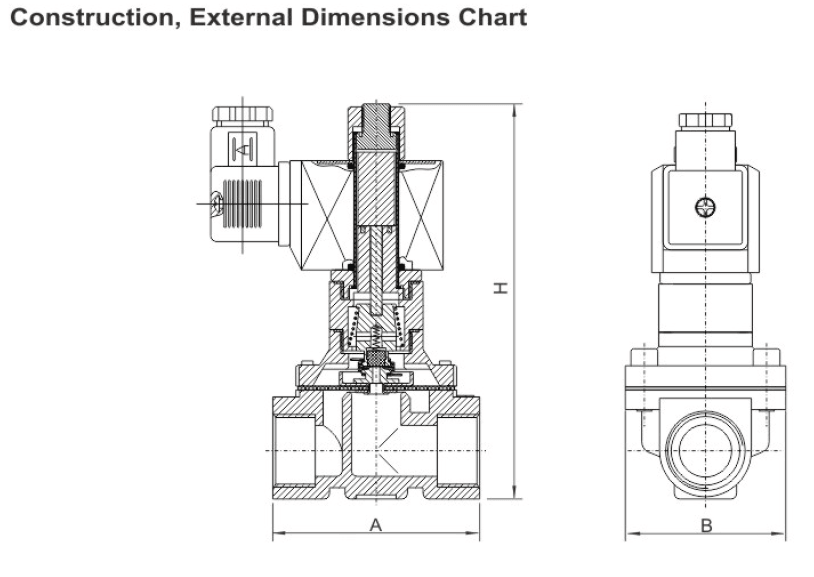

![ZS Stainless Steel 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed](http://aircoproducts.co.uk/cdn/shop/products/zssizesheetstainlesssteel.png?v=1668689476&width=1445)
