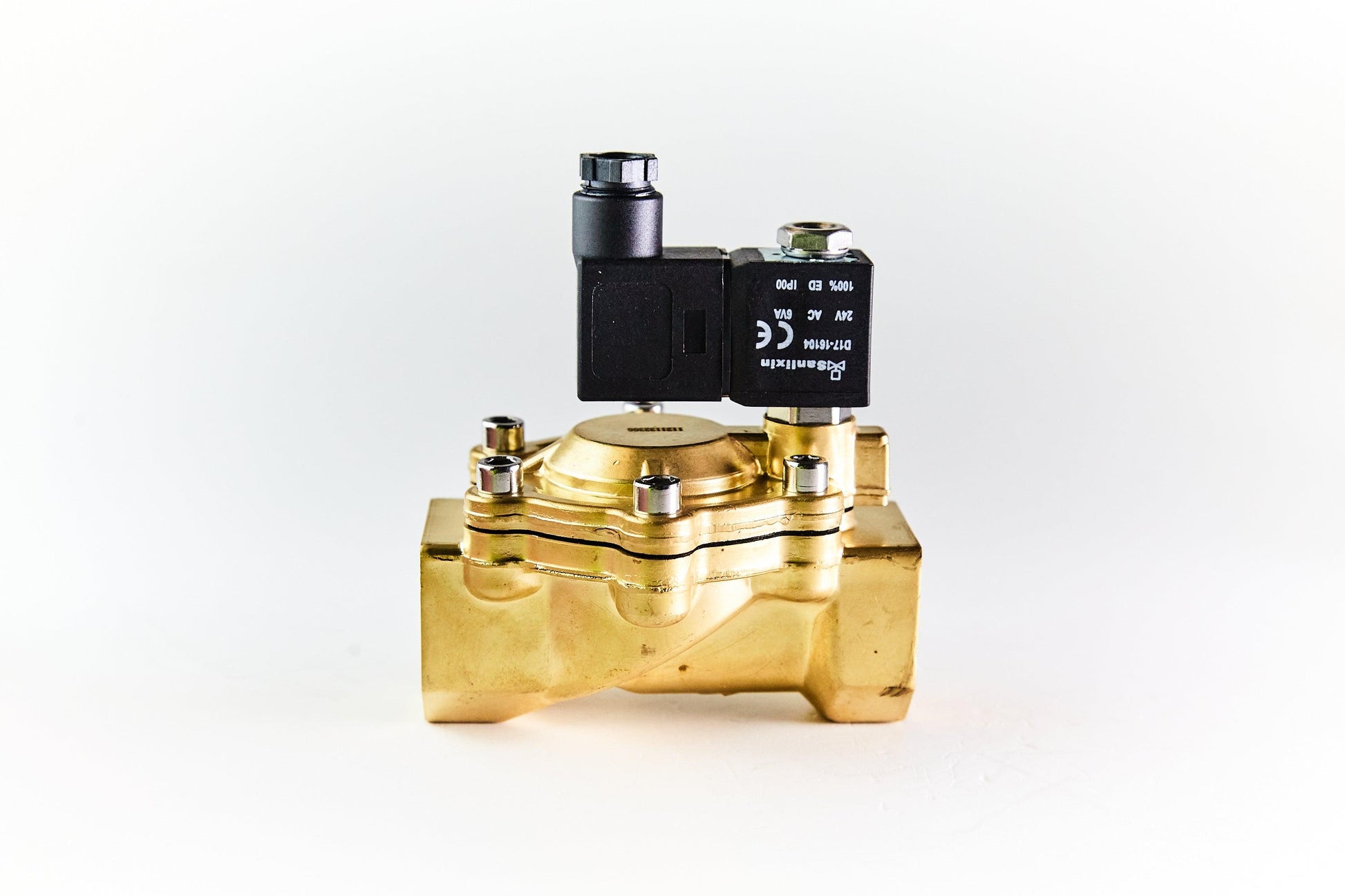

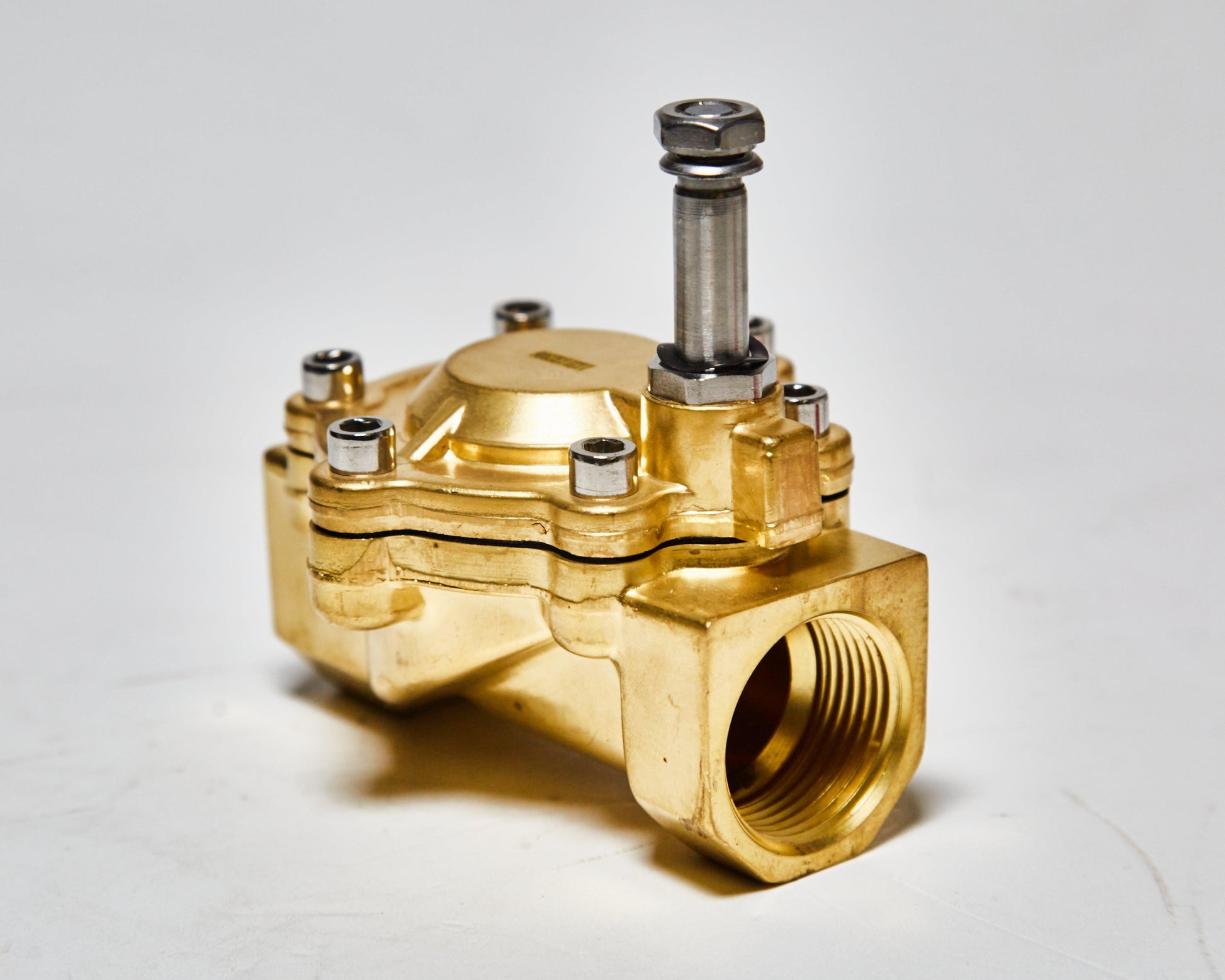

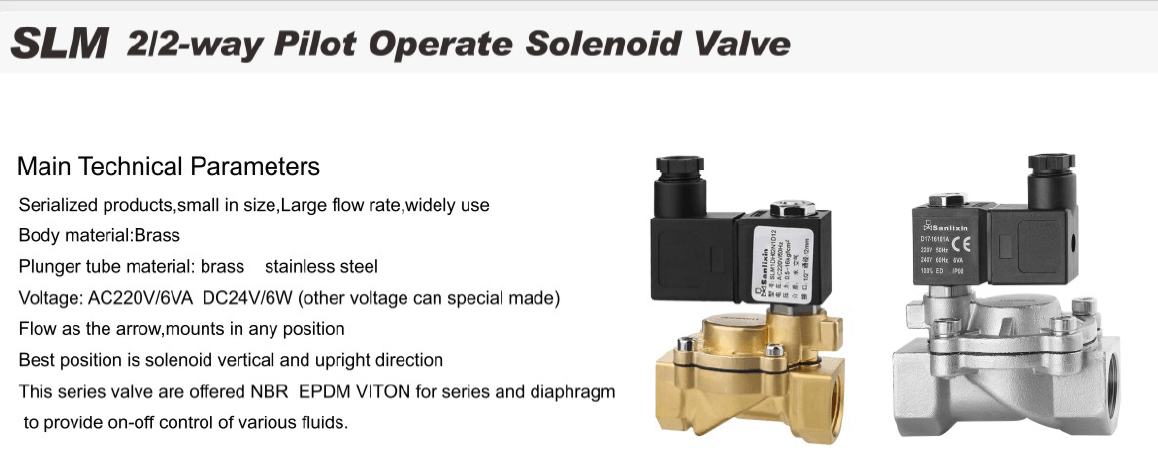

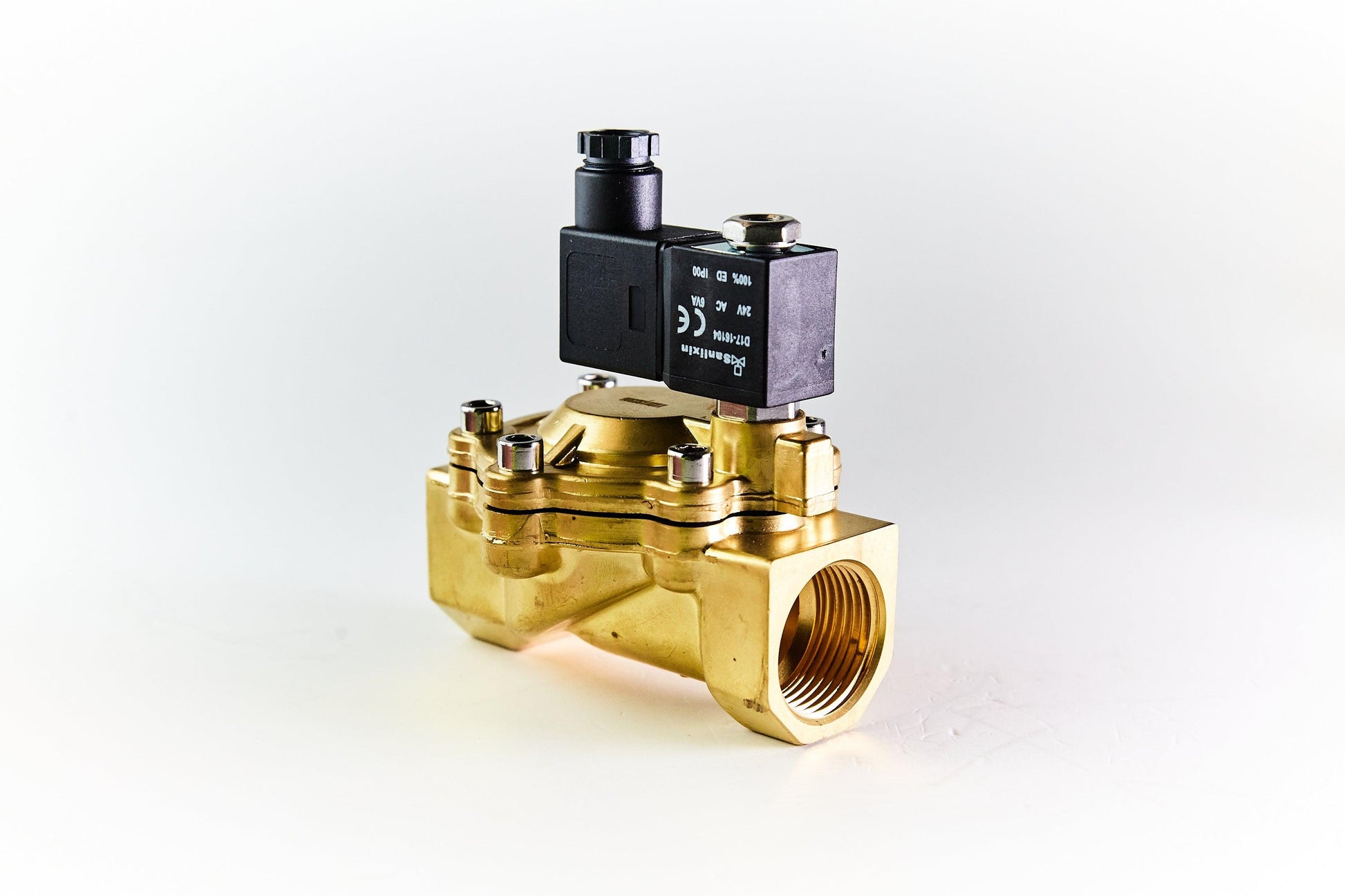

SLM 2/2-Way, Brass Nitrile, Pilot Operated Solenoid Valve, Normally Closed

Regular price
£22.75
Sale price
£22.75
Regular price
Sold out
Unit price
per

Body Material: Forged Brass
Ambient Temperature: 0°C - 65°C
Fluids Temperature: 0°C - 80°C
Liquid Max Pressure (Bar): AC: 16 | DC: 12
Gas Max Pressure (Bar): AC: 16 | DC: 12
Working Pressure (Bar): AC: 0.5 - 16 | DC: 0.5 - 12
CV Factor: 2.4
Orifice: 12 mm

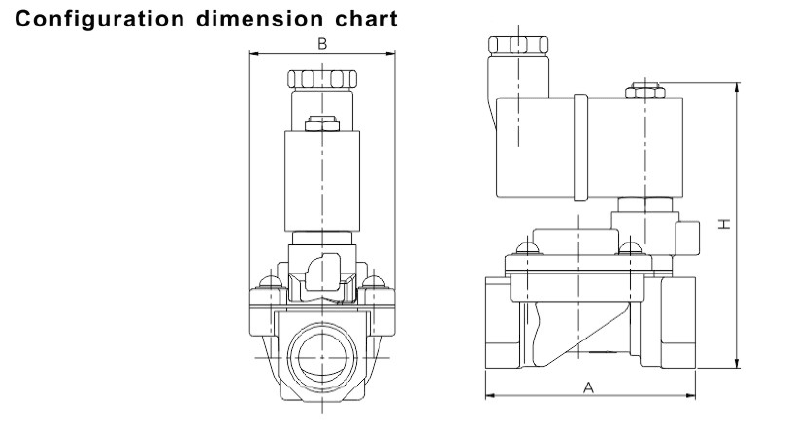

External Dimensions (L x W x H): 62 x 43 x 84.2

Flow as arrow, mounts in any position
Best position is solenoid vertical and upright direction.

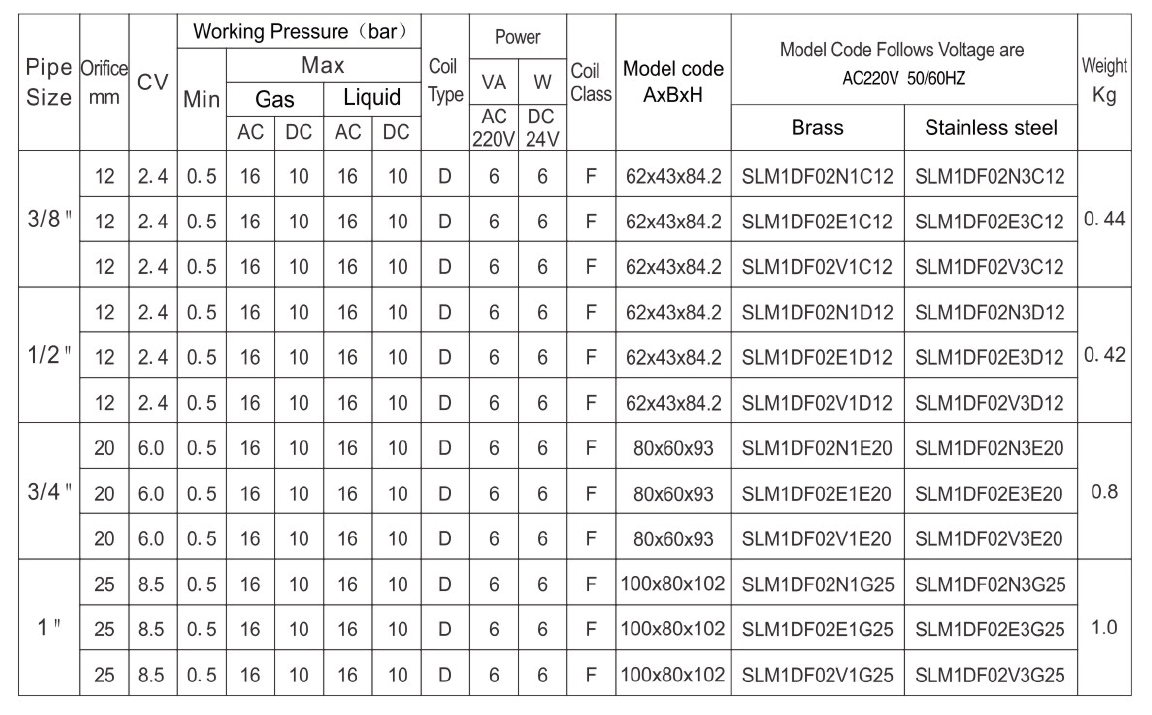

Pipe Connection BSP Orifice (mm) CV Factor Min. Pressure (Bar) Air/ Gas Pressure (Bar) Liquids (Bar) Coil Type Power Consumption
VA 220V
Power Consumption
W 24V
Coil Class Model Code Weight (kg)
3/8" 12 2.4 0.5 AC: 16
DC: 12
AC: 16
DC: 12
D 6 6 F SLM1DF**N1C12 0.44
1/2" 12 2.4 0.5 AC: 16
DC: 12
AC: 16
DC: 12
D 6 6 F SLM1DF**N1D12 0.42
3/4" 20 6.0 0.5 AC: 16
DC: 12
AC: 16
DC: 12
D 6 6 F SLM1DF**N1E20 0.80
1" 25 8.5 0.5 AC: 16
DC: 12
AC: 16
DC:12
D 6 6 F SLM1DF**N1G25 1.0
