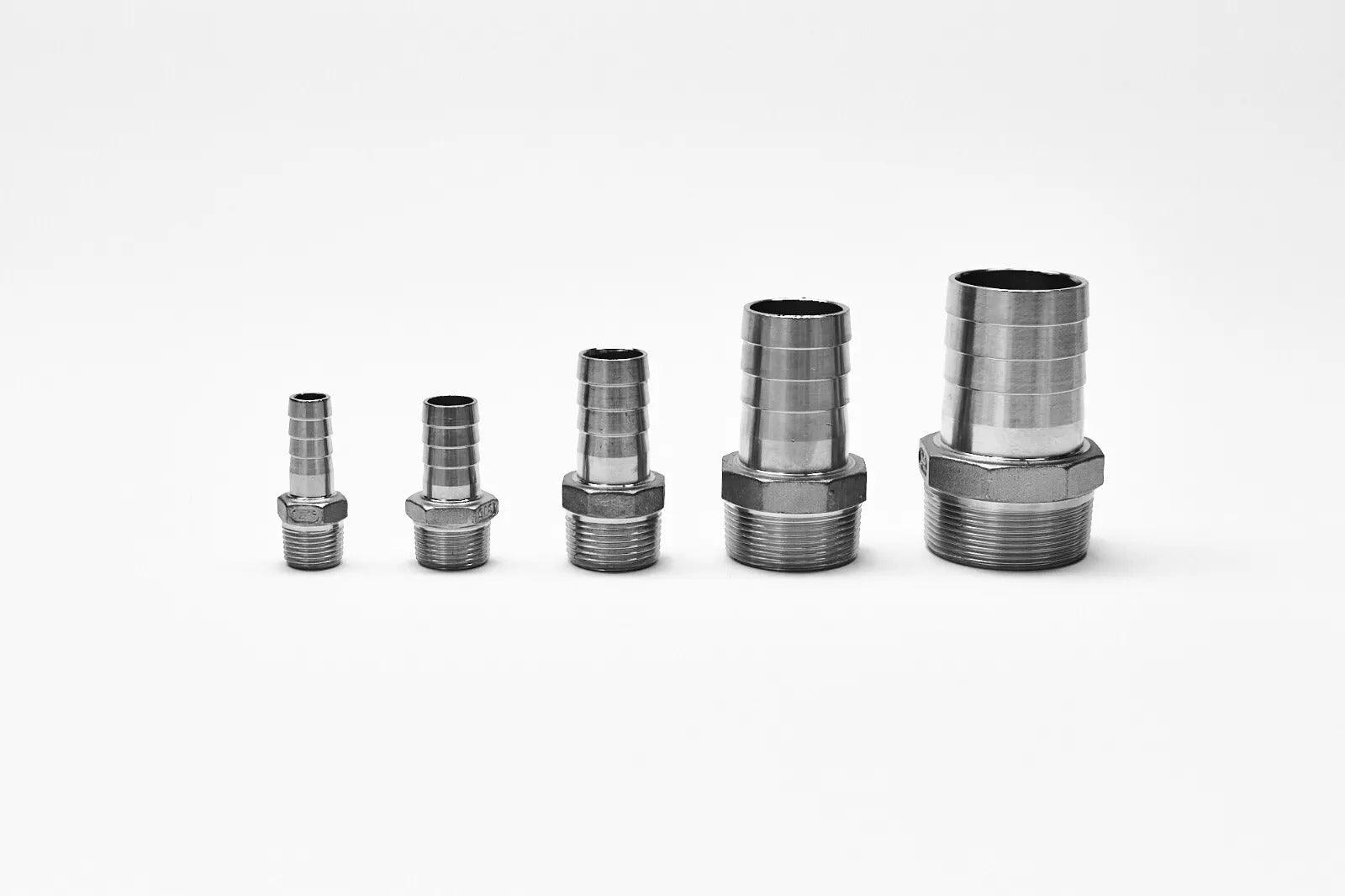

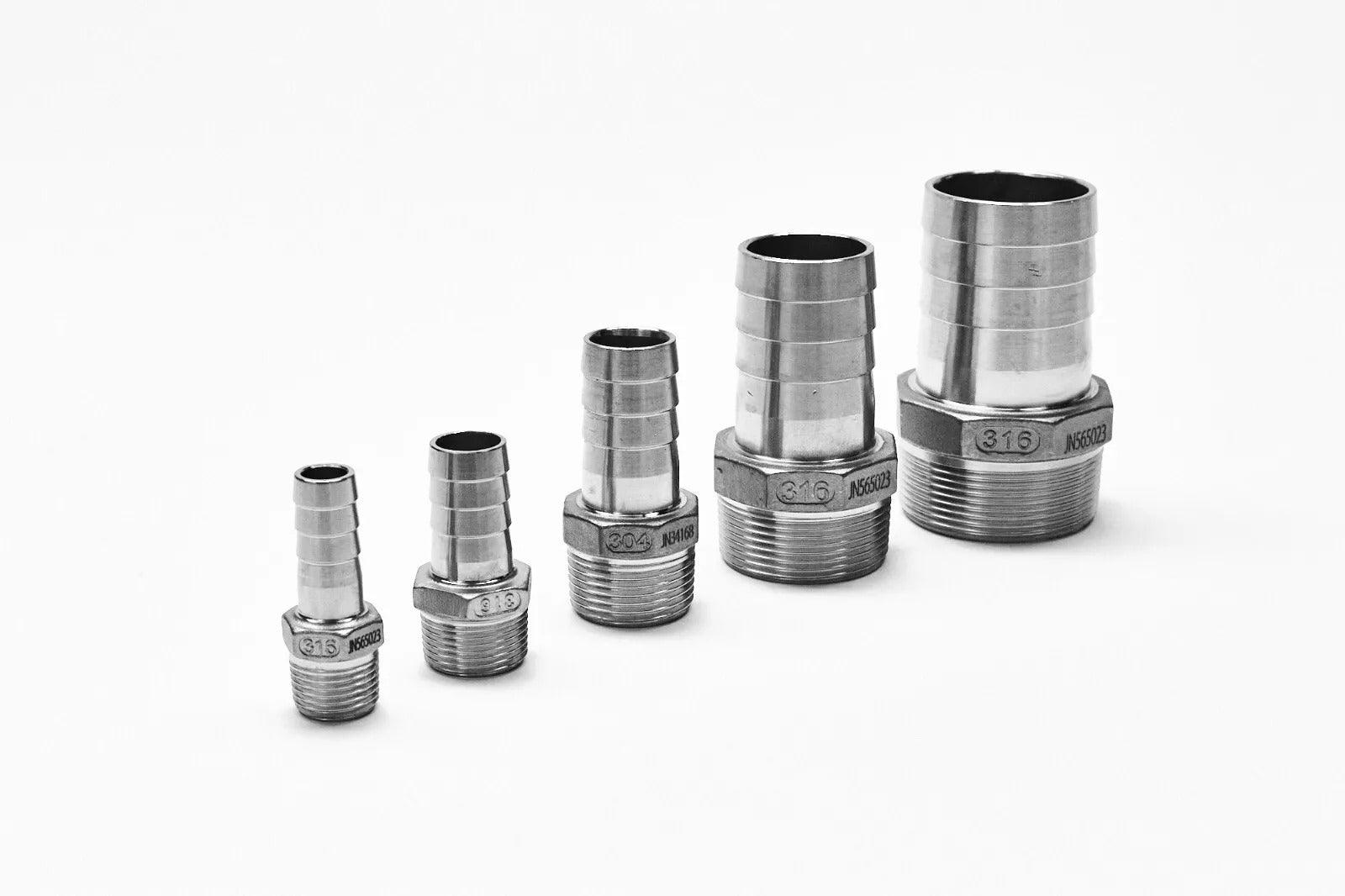

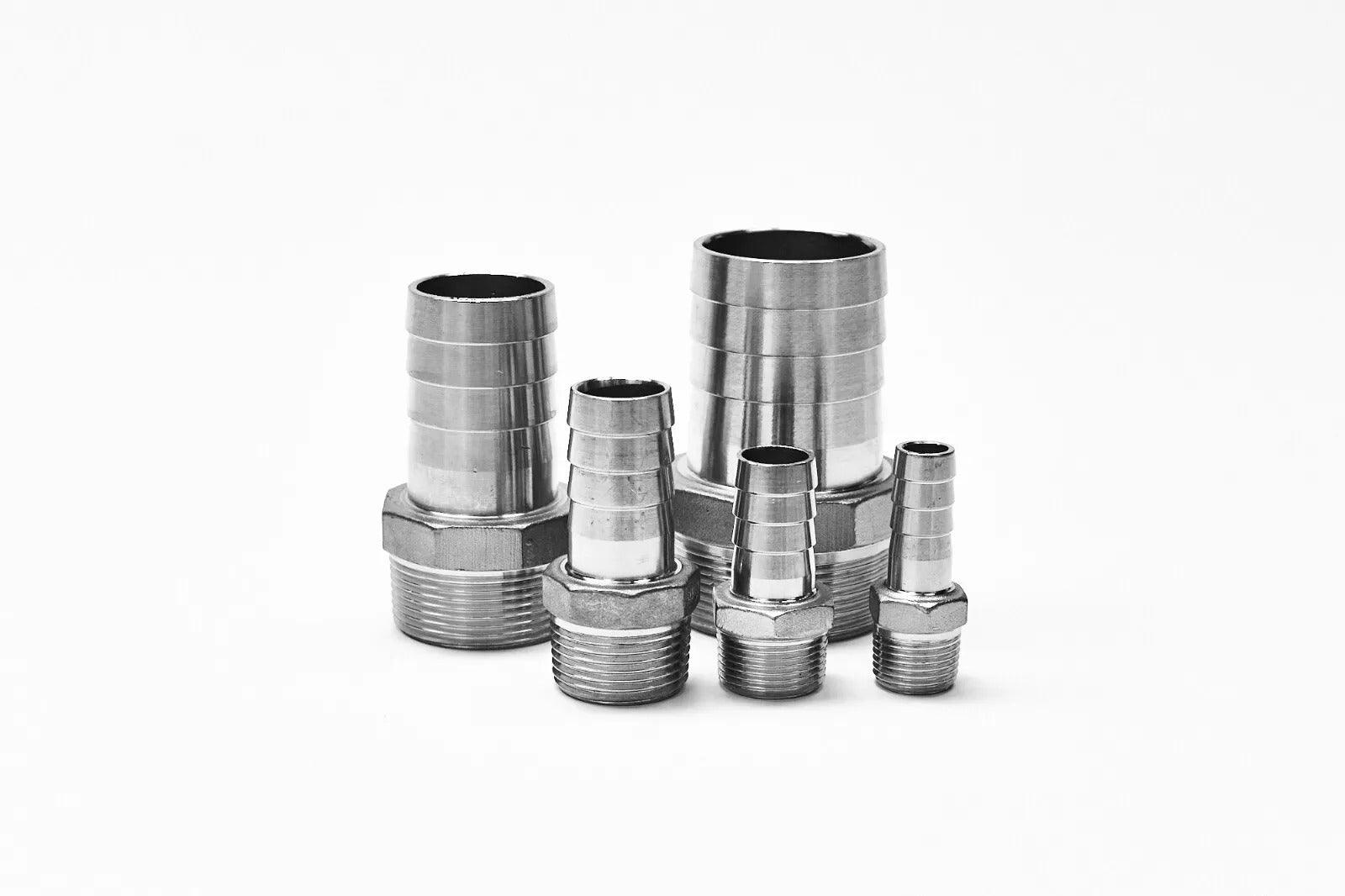

Threaded Hose Nipple 150lb Stainless Steel 316
Threaded Hose Nipple 150lb Stainless Steel 316
Regular price
£6.45 GBP
Regular price
Sale price
£6.45 GBP
Unit price
per
Couldn't load pickup availability
Overview
High-quality BSPT Hosetail crafted from 316 Stainless Steel, engineered for secure and reliable connections between hoses and pipe systems. Rated at 150LB with a maximum working pressure of 300 psi (20 bar), this fitting is ideal for plumbing, industrial, and marine applications, ensuring leak-free fluid transfer in various environments.
Key Features
- 316 Stainless Steel: Exceptional corrosion resistance and durability for harsh and corrosive environments.
- High Pressure Rating: Rated for 300 psi (20 bar), ensuring dependable performance.
- BSPT Threads: Manufactured to ISO 7-1 standards for a secure, precise fit and tight seal.
- Versatile Use: Suitable for indoor and outdoor fluid transfer applications.
Specifications
- Material: 316 Stainless Steel (CF8M)
- Thread Standard: BSPT (British Standard Pipe Taper) to ISO 228-1 and 7-1
- Pressure Rating: 300 psi (20 bar) maximum working pressure
- Grade: 150LB
- Manufacturing Standard: ISO 4144
- NPT Option: Available upon request (ANSI B2.1 standard)
Applications
- Hot and Cold Water: Reliable for water transfer systems.
- Oil and Gas: Suitable for industrial fluid management.
- Marine Environments: Corrosion-resistant for marine applications.
- Plumbing and Industrial Setups: Ideal for secure hose-to-pipe connections.
Available Sizes
- 1/8" (3.5mm) Hosetail × 1/8" BSPT Male Thread
- 3/16" (5mm) Hosetail × 1/8" BSPT Male Thread
- 1/4" (6.35mm) Hosetail × 1/4" BSPT Male Thread
- 5/16" (8.00mm) Hosetail × 1/4" BSPT Male Thread
- 3/8" (9.53mm) Hosetail × 3/8" BSPT Male Thread
- 1/2" (12.7mm) Hosetail × 1/2" BSPT Male Thread
- 5/8" (16mm) Hosetail × 1/2" BSPT Male Thread
- 3/4" (19.05mm) Hosetail × 3/4" BSPT Male Thread
- 1" (25.4mm) Hosetail × 1" BSPT Male Thread
- 1-1/4" (31.75mm) Hosetail × 1-1/4" BSPT Male Thread
- 1-1/2" (38.1mm) Hosetail × 1-1/2" BSPT Male Thread
- 2" (50.8mm) Hosetail × 2" BSPT Male Thread
- 2-1/2" (63.5mm) Hosetail × 2-1/2" BSPT Male Thread
- 3" (76.2mm) Hosetail × 3" BSPT Male Thread
- 4" (101.6mm) Hosetail × 4" BSPT Male Thread
Technical Drawing
Technical Dimensions
| Hosetail Size | BSPT Thread Size | A (mm) - Hexagon Width | B (mm) - Overall Length | C (mm) - Hosetail OD | D (mm) - Hosetail Length | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/8" | 1/8" | 13.9 | 34.9 | 3.5 | 20 | 0.02 |
| 3/16" | 1/8" | 13.9 | 40 | 5 | 25 | 0.03 |
| 1/4" | 1/4" | 15 | 38 | 6.3 | 20 | 0.03 |
| 5/16" | 1/4" | 14.5 | 47.2 | 8 | 29.2 | 0.03 |
| 3/8" | 3/8" | 19 | 51.5 | 9.53 | 32 | 0.06 |
| 1/2" | 1/2" | 23.2 | 63 | 12.7 | 38.5 | 0.06 |
| 5/8" | 1/2" | 23.2 | 63 | 16 | 38.8 | 0.06 |
| 3/4" | 3/4" | 29 | 66 | 19.05 | 38 | 0.10 |
| 1" | 1" | 34.8 | 71 | 25.4 | 42.2 | 0.21 |
| 1-1/4" | 1-1/4" | 45 | 77.8 | 31.8 | 46 | 0.25 |
| 1-1/2" | 1-1/2" | 50 | 89.5 | 38.1 | 55 | 0.38 |
| 2" | 2" | 61.3 | 96.2 | 50.8 | 59.5 | 0.61 |
| 2-1/2" | 2-1/2" | 78.5 | 116.5 | 63.5 | 72 | 0.93 |
| 3" | 3" | 93.5 | 128 | 76.2 | 80.6 | 1.39 |
| 4" | 4" | 118.5 | 138 | 101.6 | 84 | 2.23 |
Note: A = Hexagon width across flats, B = Overall length, C = Hosetail outside diameter, D = Hosetail length. NPT thread versions available upon request.
