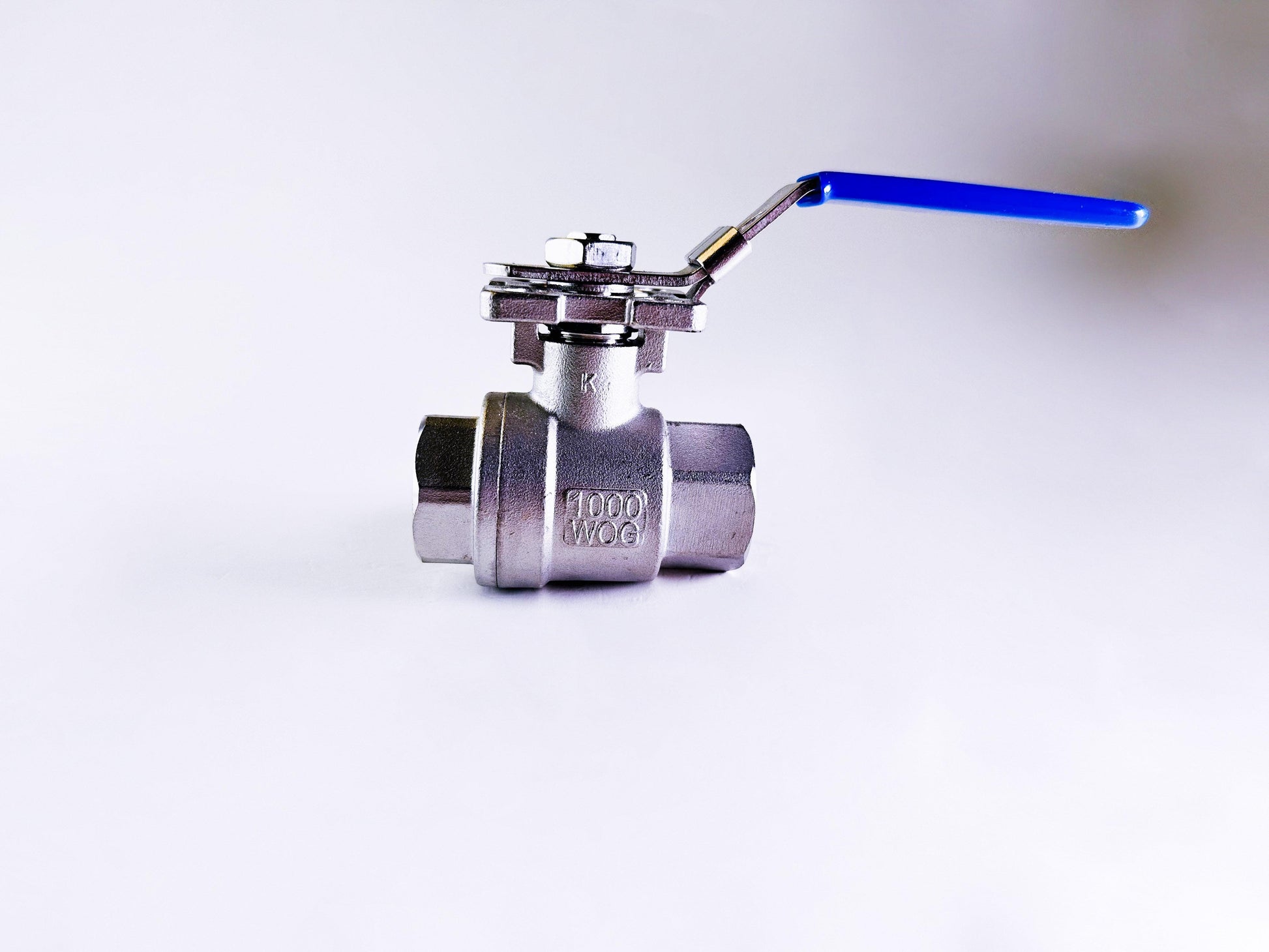

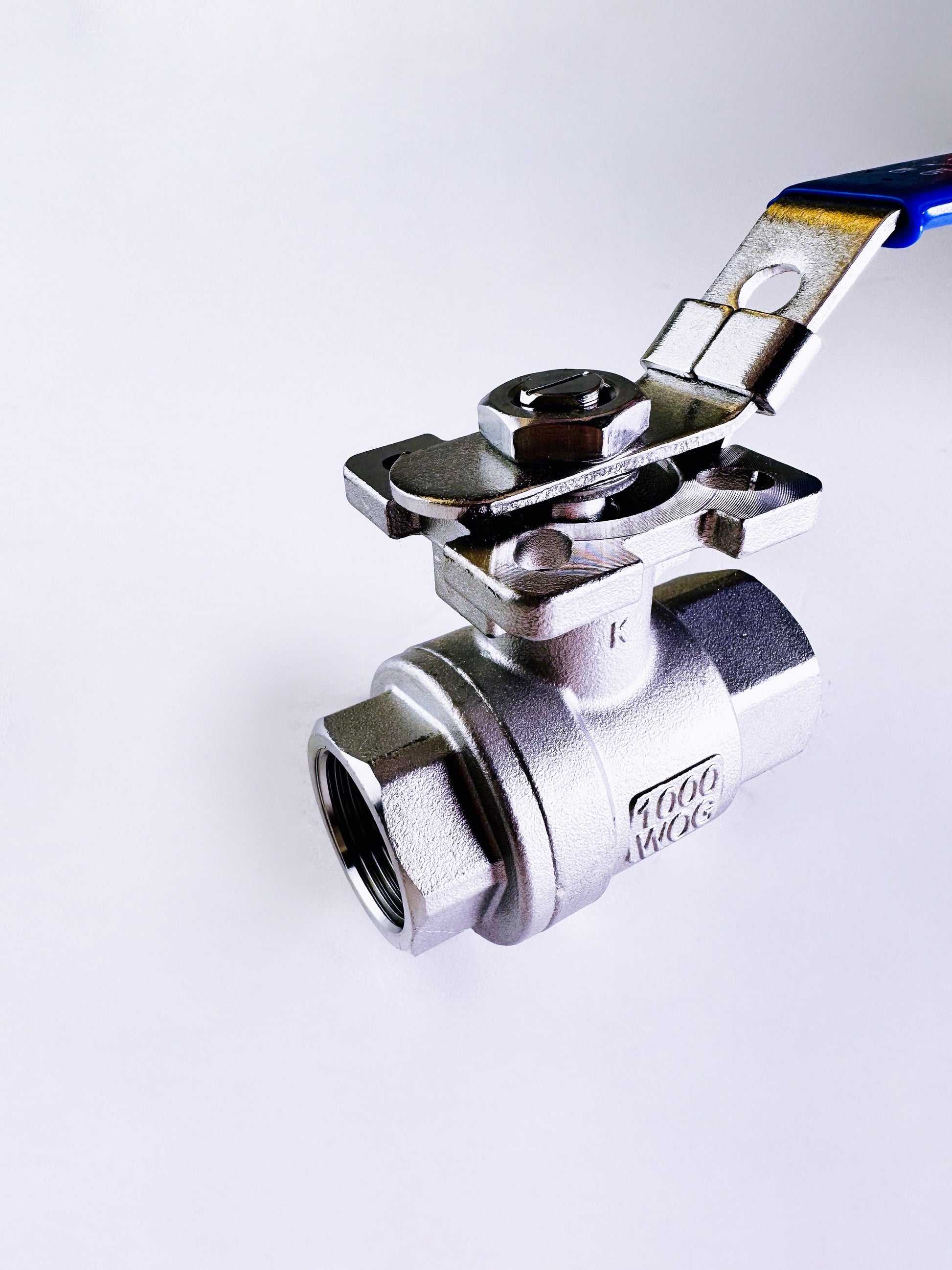

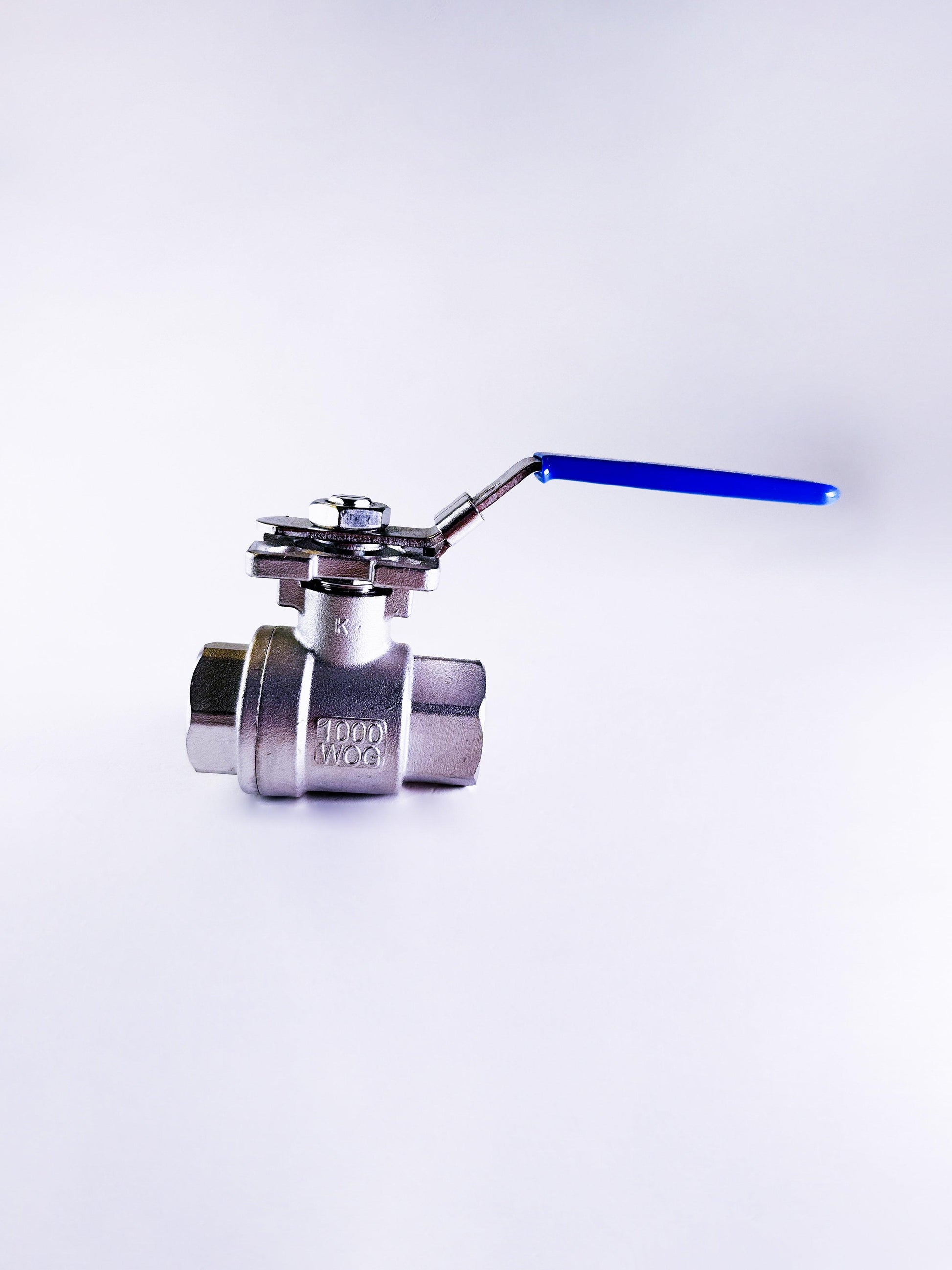

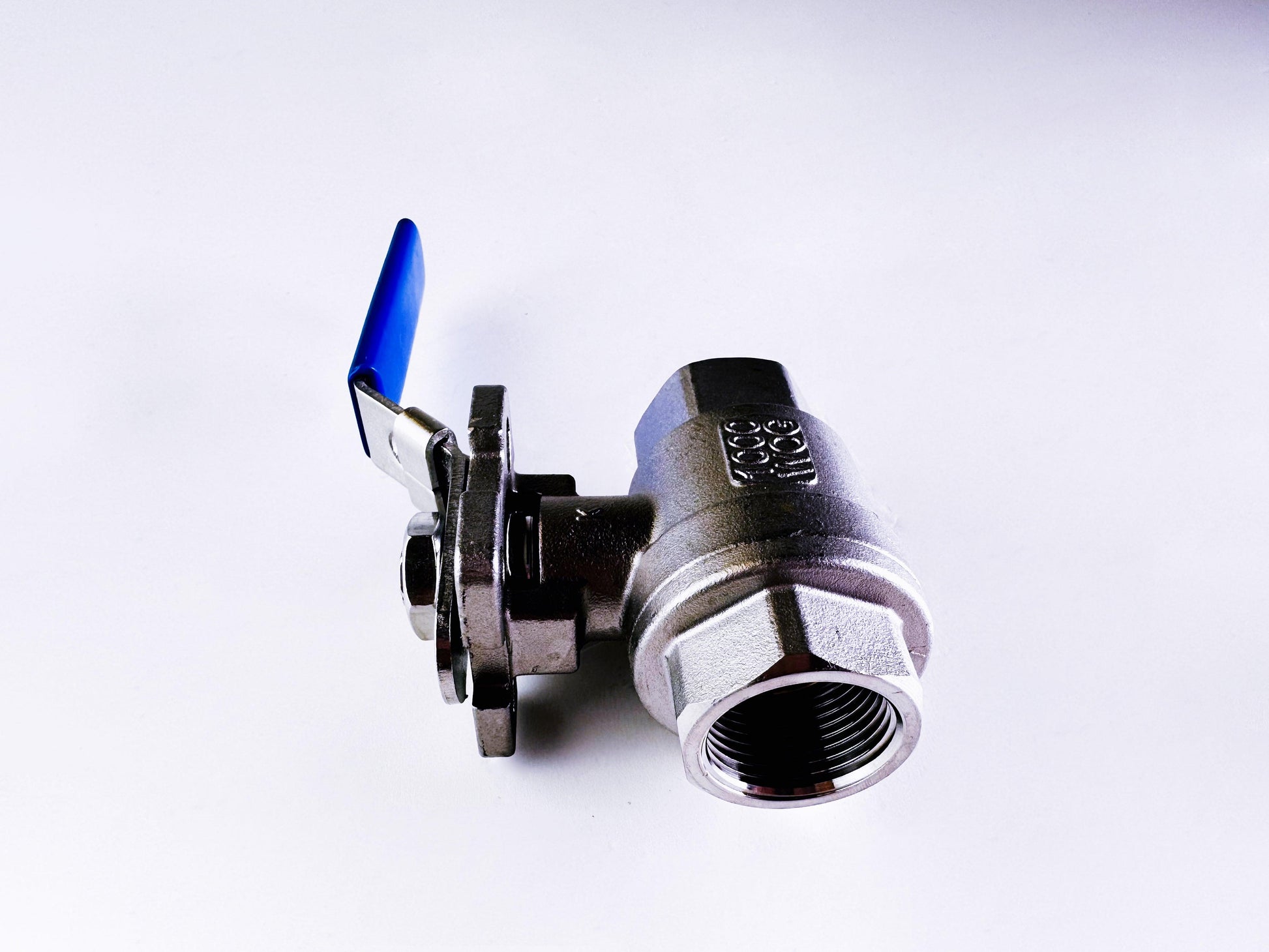

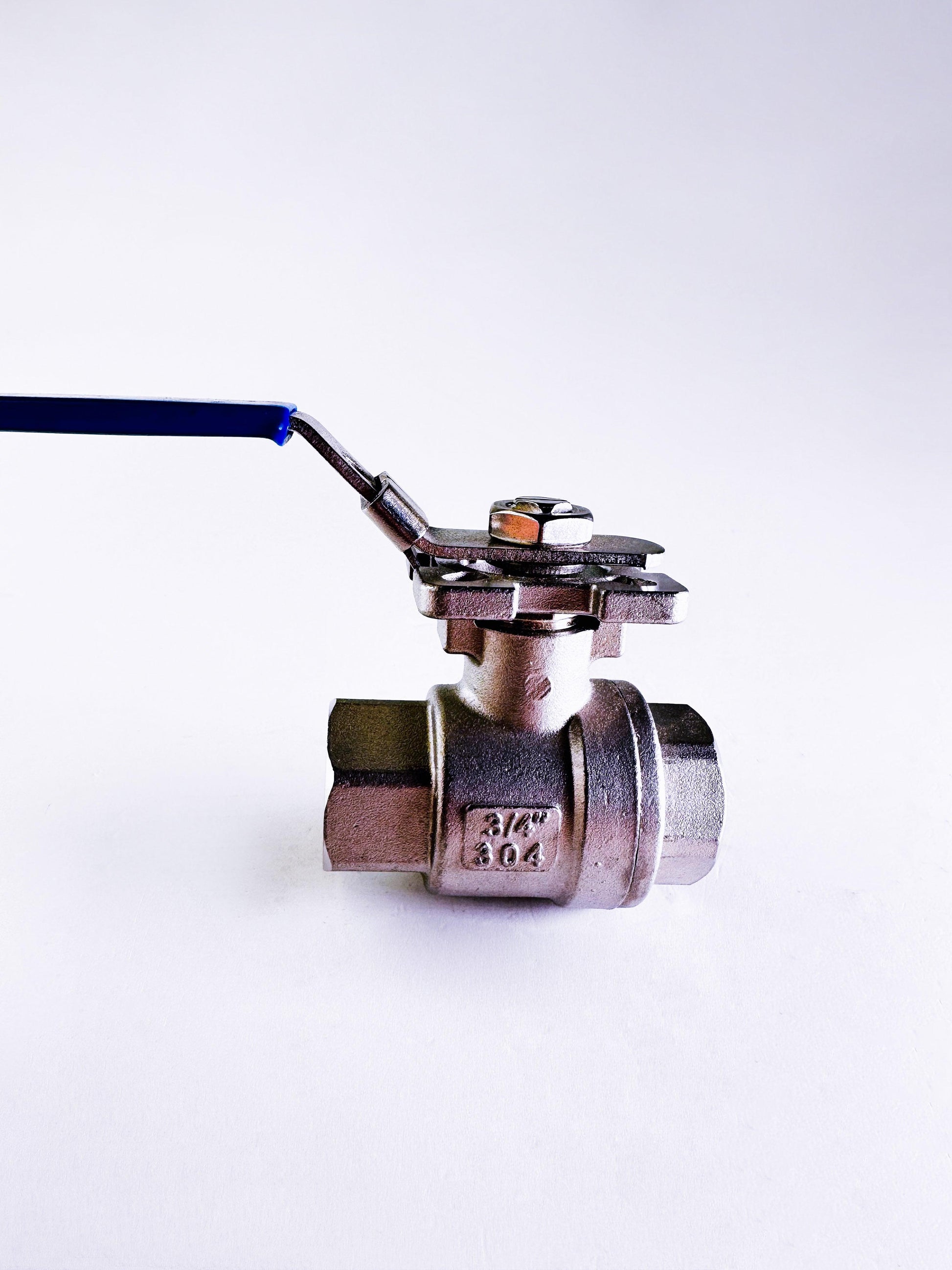

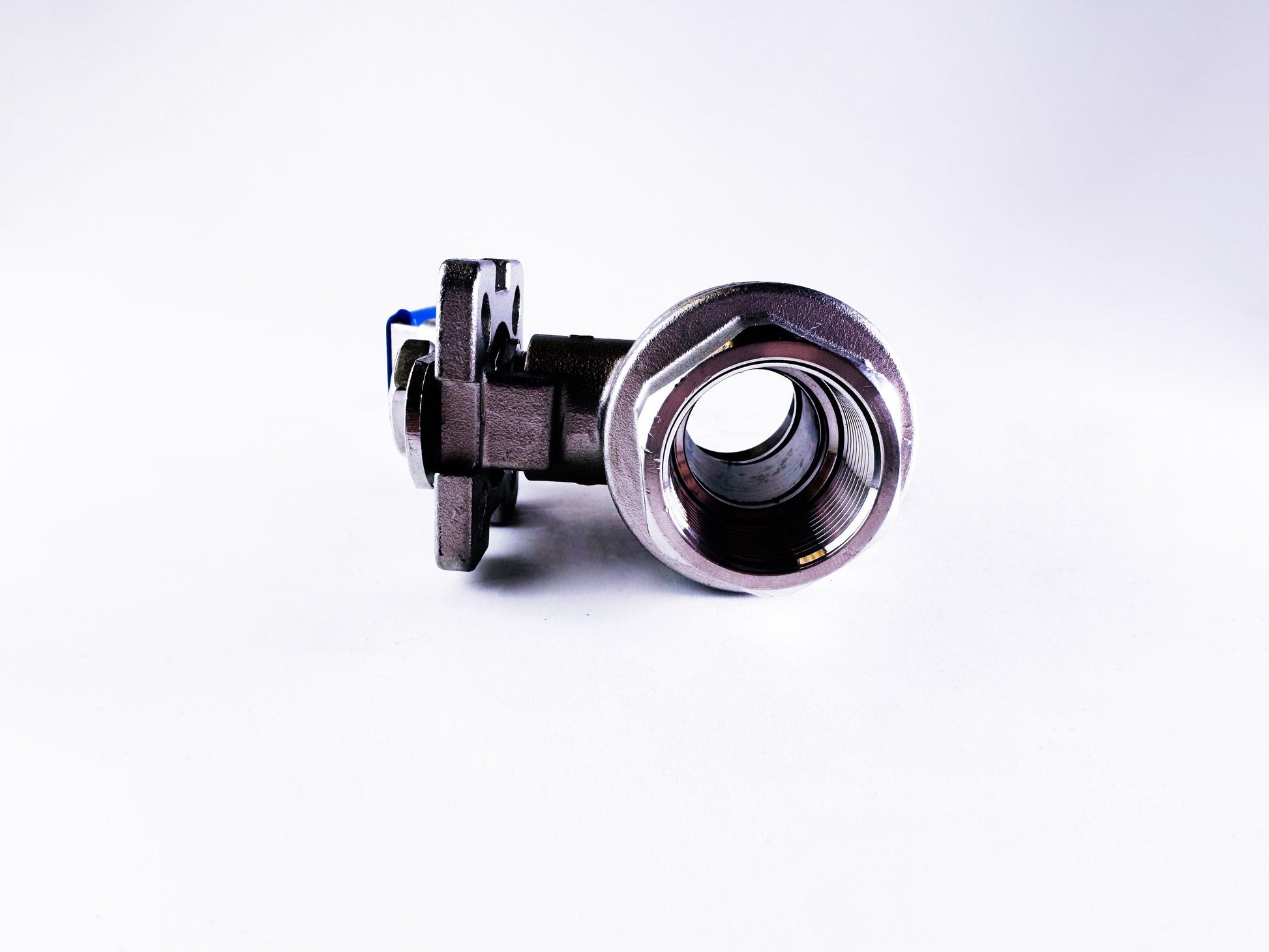

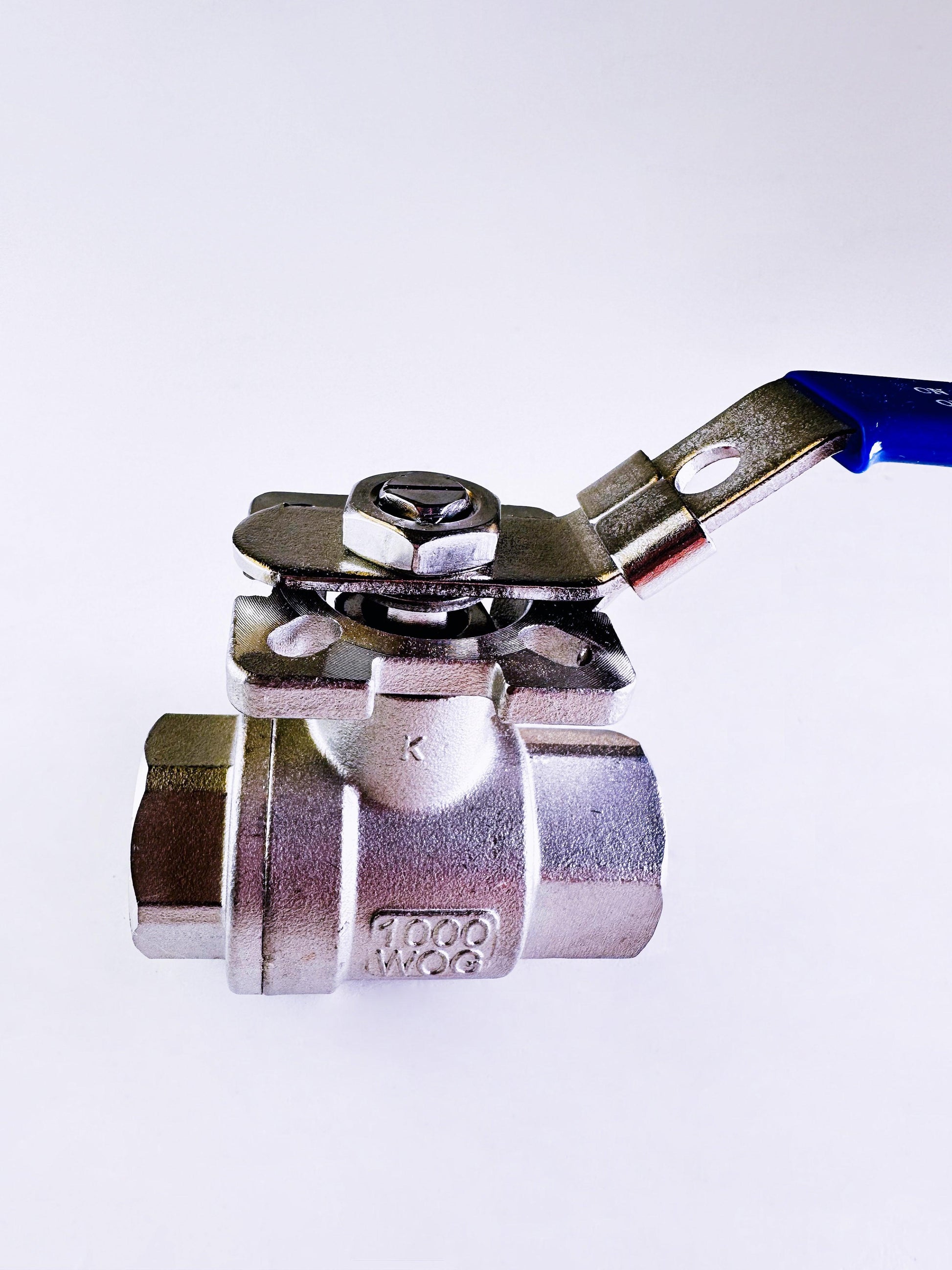

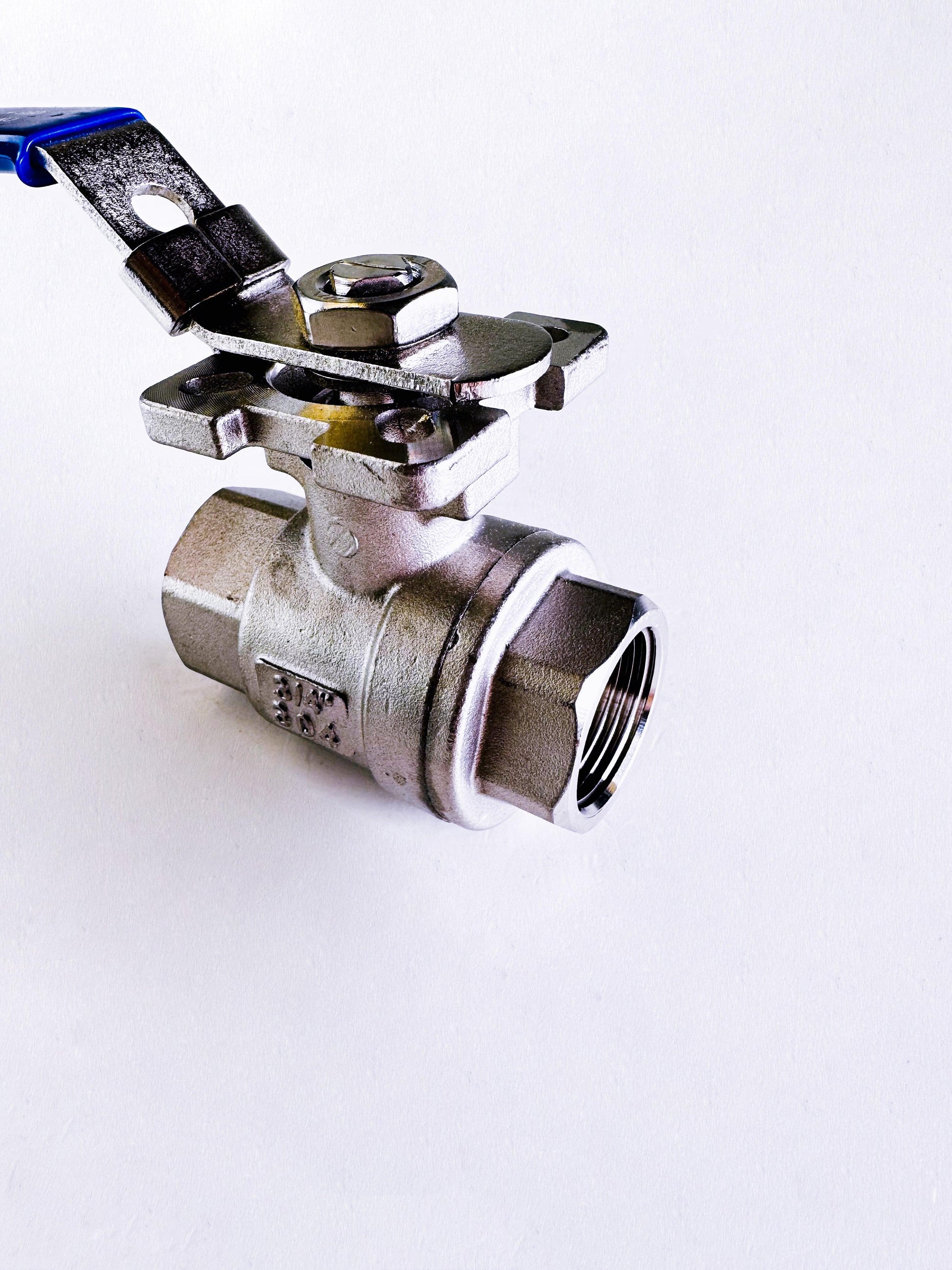

2 Piece Ball Valve with Mounting Pad
2 Piece Ball Valve with Mounting Pad
Regular price
£15.00
Regular price
Sale price
£15.00
Unit price
/
per
We have 20 in stock
2 Piece Ball Valve with Mounting Pad
Threaded Ends: ANSI B2.1, BS21, ISO7/1

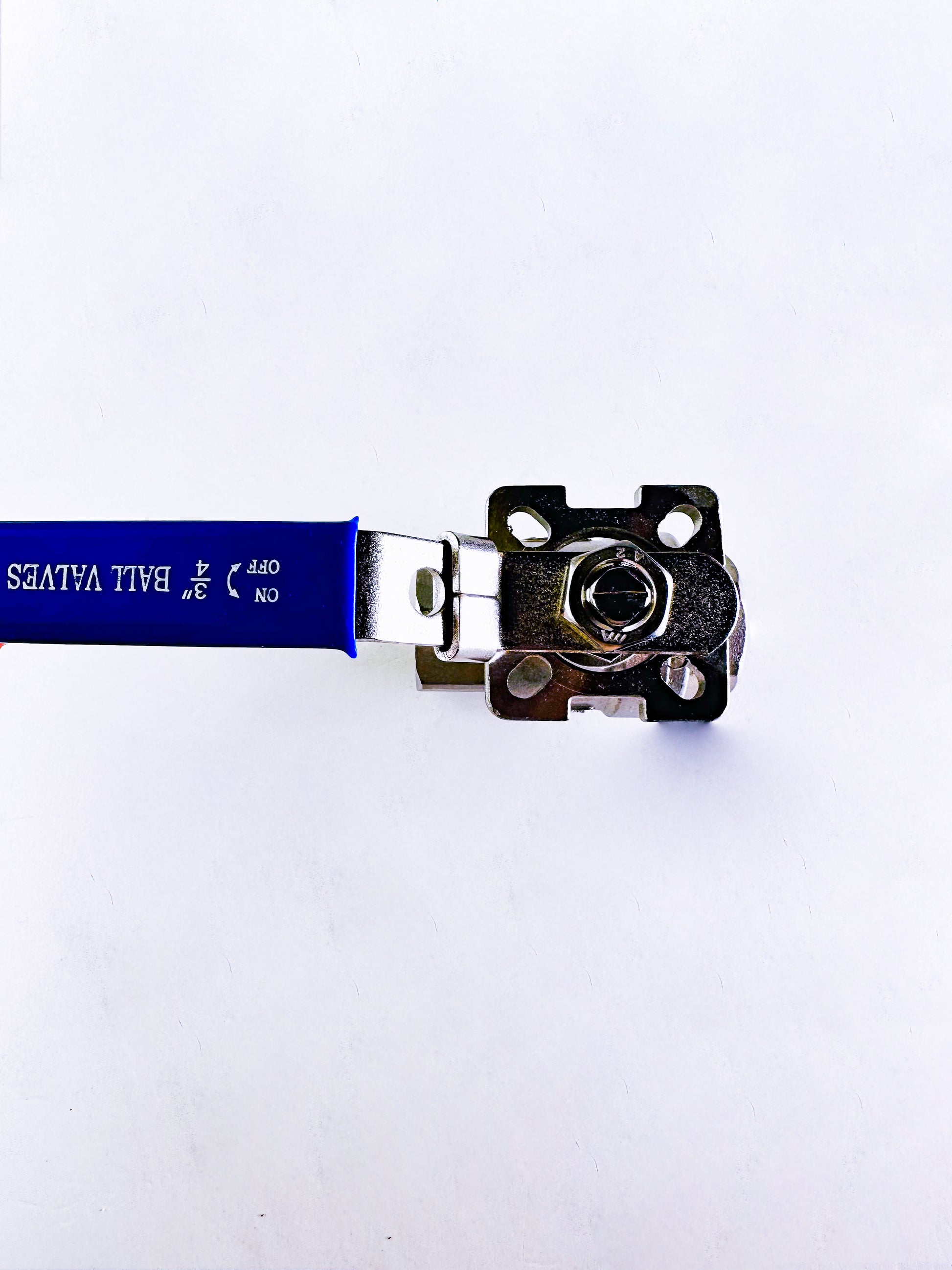

Mounting Pad: ISO5211
Pressure Carting: 1000PSI (PN63)
Working Temperature: -25°C to +180°C
Material: CF8
SIZE | d | L | H | W | C | ISO4211 | N . m | Kgs |
1/4" | 11.5 | 56 | 65 | 115 | 9 | F03 | 5 | 0.37 |
3/8" | 12.5 | 56 | 65 | 115 | 9 | F03 | 5 | 0.35 |
1/2" | 15 | 57 | 65 | 117 | 9 | F03 / F04 | 5 | 0.37 |
3/4" | 20 | 64 | 70 | 117 | 9 | F03 / F04 | 8 | 0.49 |
1" | 25 | 77 | 75 | 134 | 11 | F04 / F05 | 10 | 0.74 |
1.1/4" | 32 | 90 | 85 | 134 | 11 | F04 / F05 | 14 | 1.18 |
1.1/2" | 40 | 105 | 95 | 203 | 14 | F05 / F07 | 18 | 1.94 |
2" | 50 | 125 | 105 | 203 | 14 | F05 / F07 | 25 | 2.90 |
2.1/2" | 65 | 153 | 140 | 255 | 17 | F07 / F10 | 48 | 5.77 |
3" | 76 | 172 | 145 | 255 | 17 | F07 / F10 | 75 | 8.45 |
4" | 94 | 221 | 175 | 302 | 17 | F07 / F10 | 110 | 15.60 |
PART | MATERIAL | QTY |
Body | CF8M | 1 |
Ball Seat | R-PTFE (15%) | 2 |
Ball | SS316 | 1 |
Body Gasket | PTFE | 1 |
Cap | CF8 | 1 |
Stem | SS316 | 1 |
Thrust Washer | PTFE | 1 |
O Ring | VITON | 1 |
Stem Packing | PTFE | 1 |
Packing Ring | SS304 | 1 |
Bellvelle Washer | SS301 | 2 |
Nut Stopper | SS304 | 1 |
Nut | SS304 | 2 |
Plate Washer | SS304 | 1 |
Lock Device | SS304 | 1 |
Handle | SS304 | 1 |
Plastic Cover | PLASTIC | 1 |
Stop Pin | SS304 | 1 |
