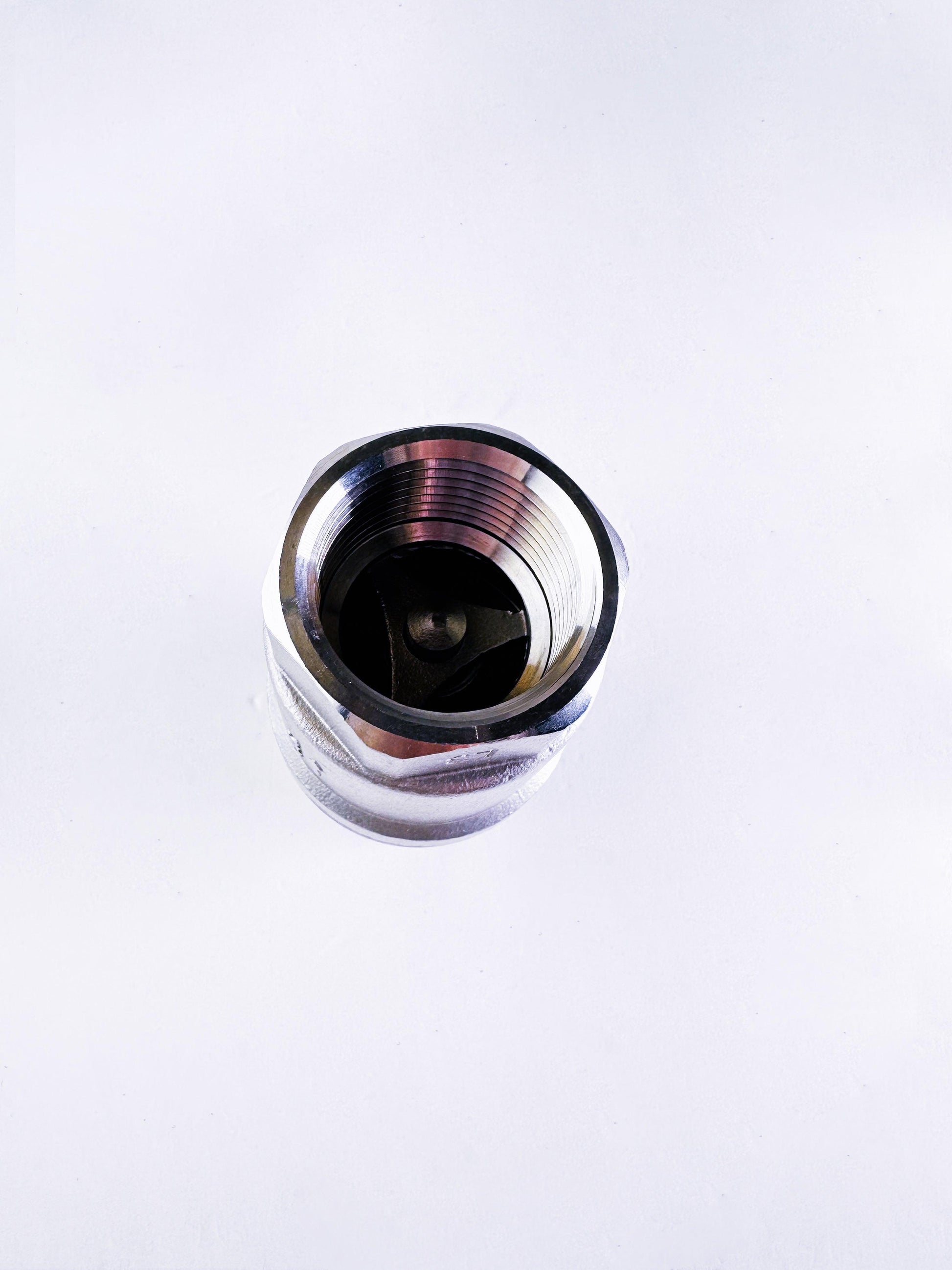

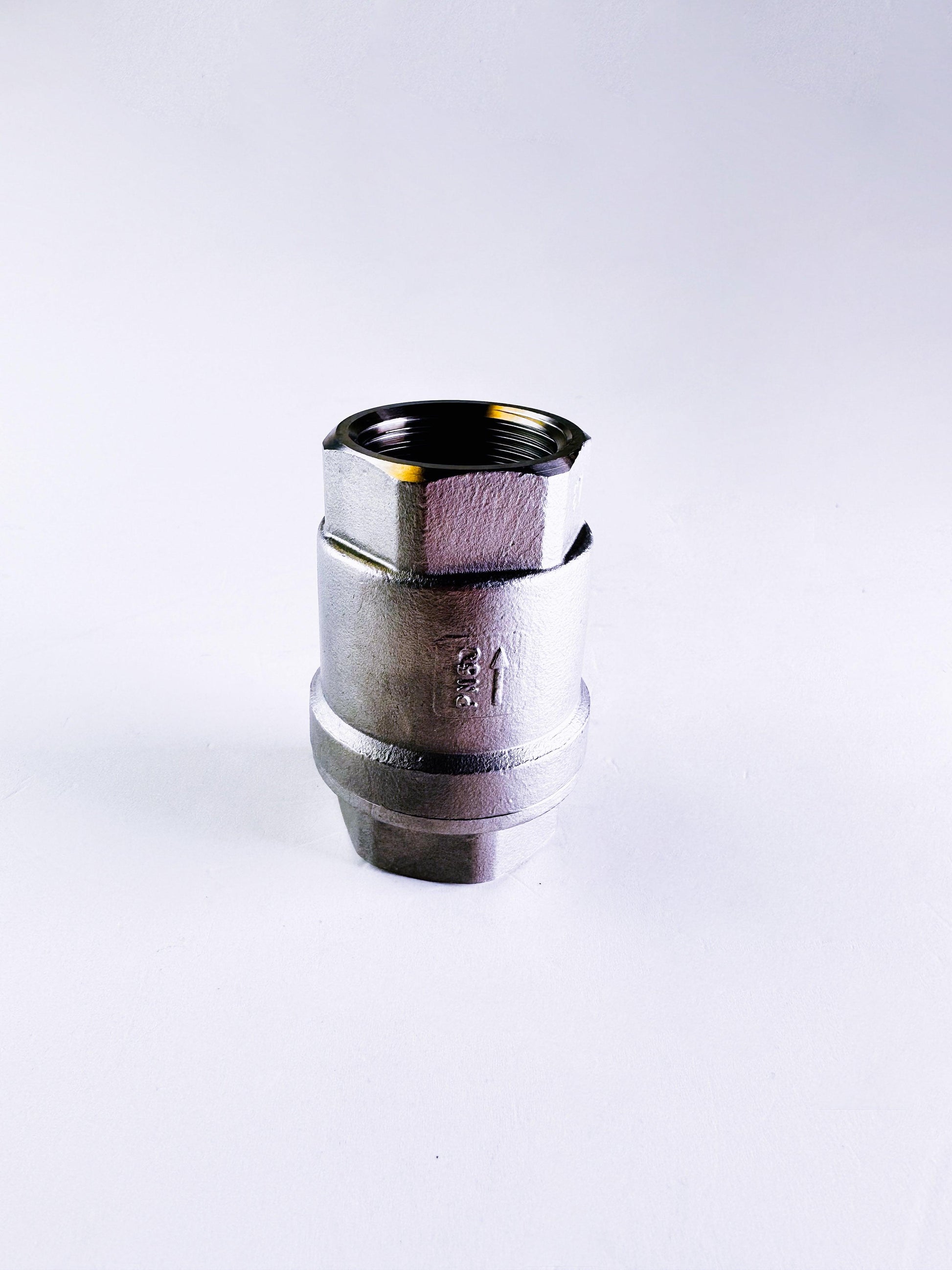

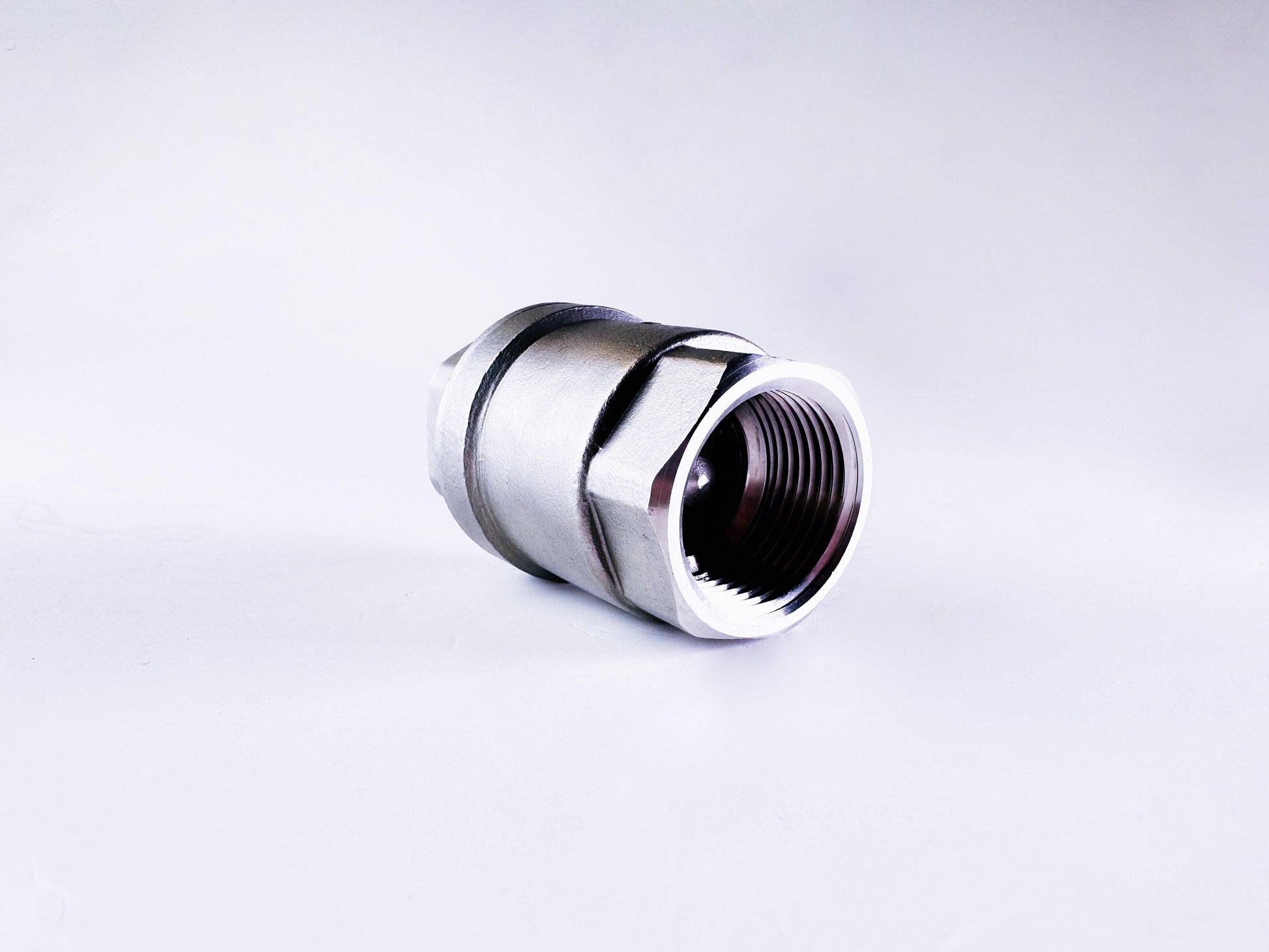

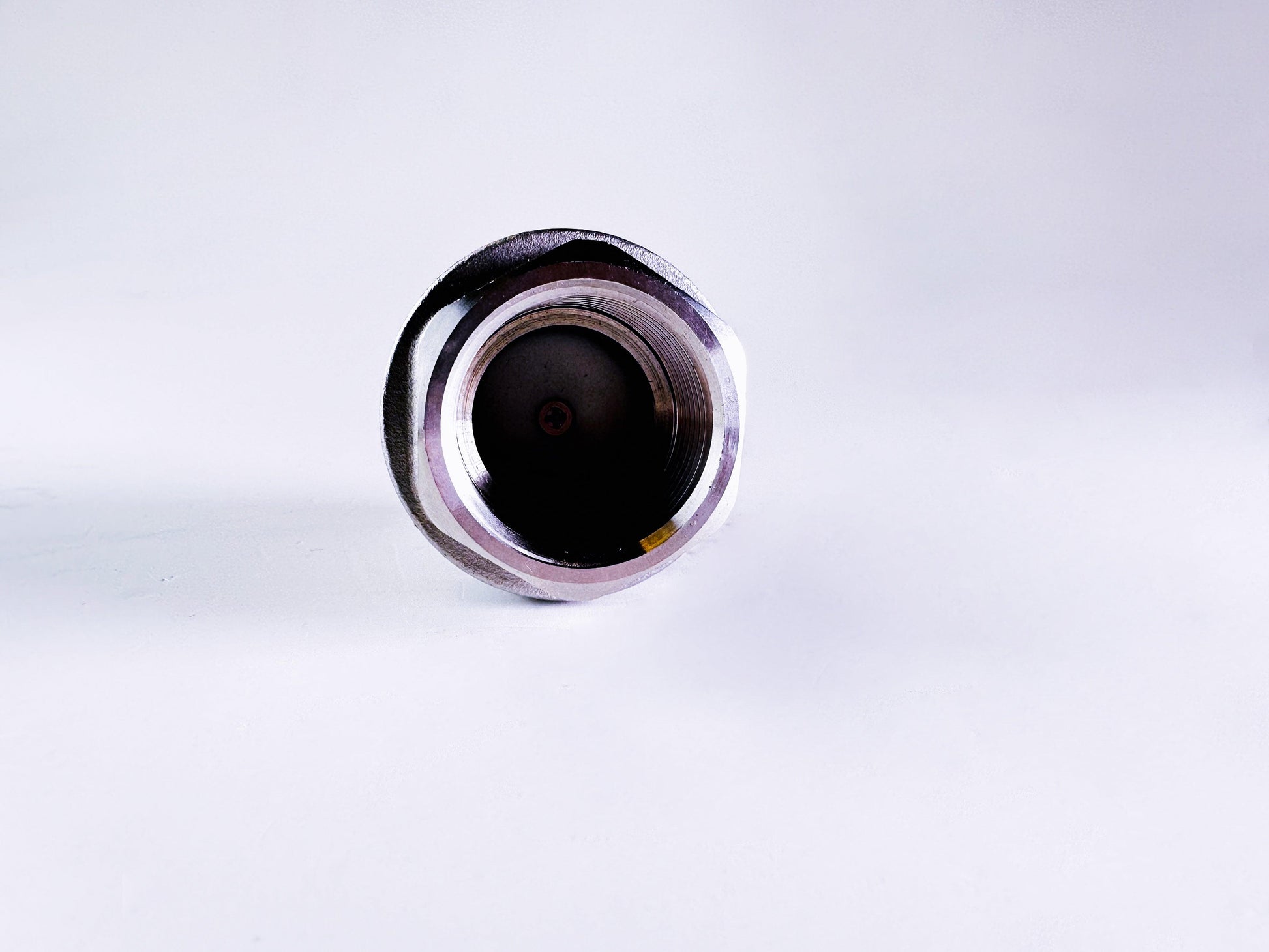

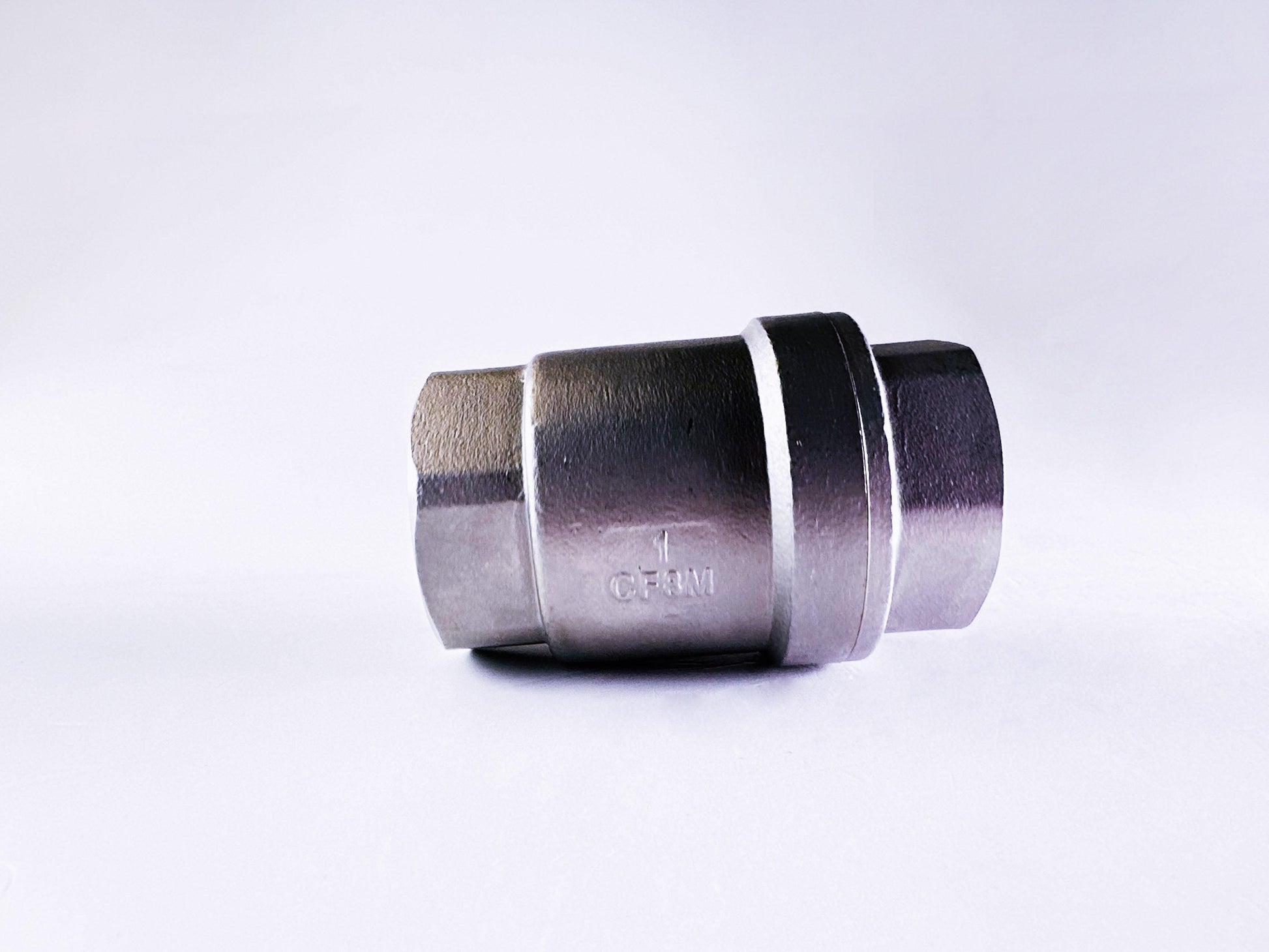

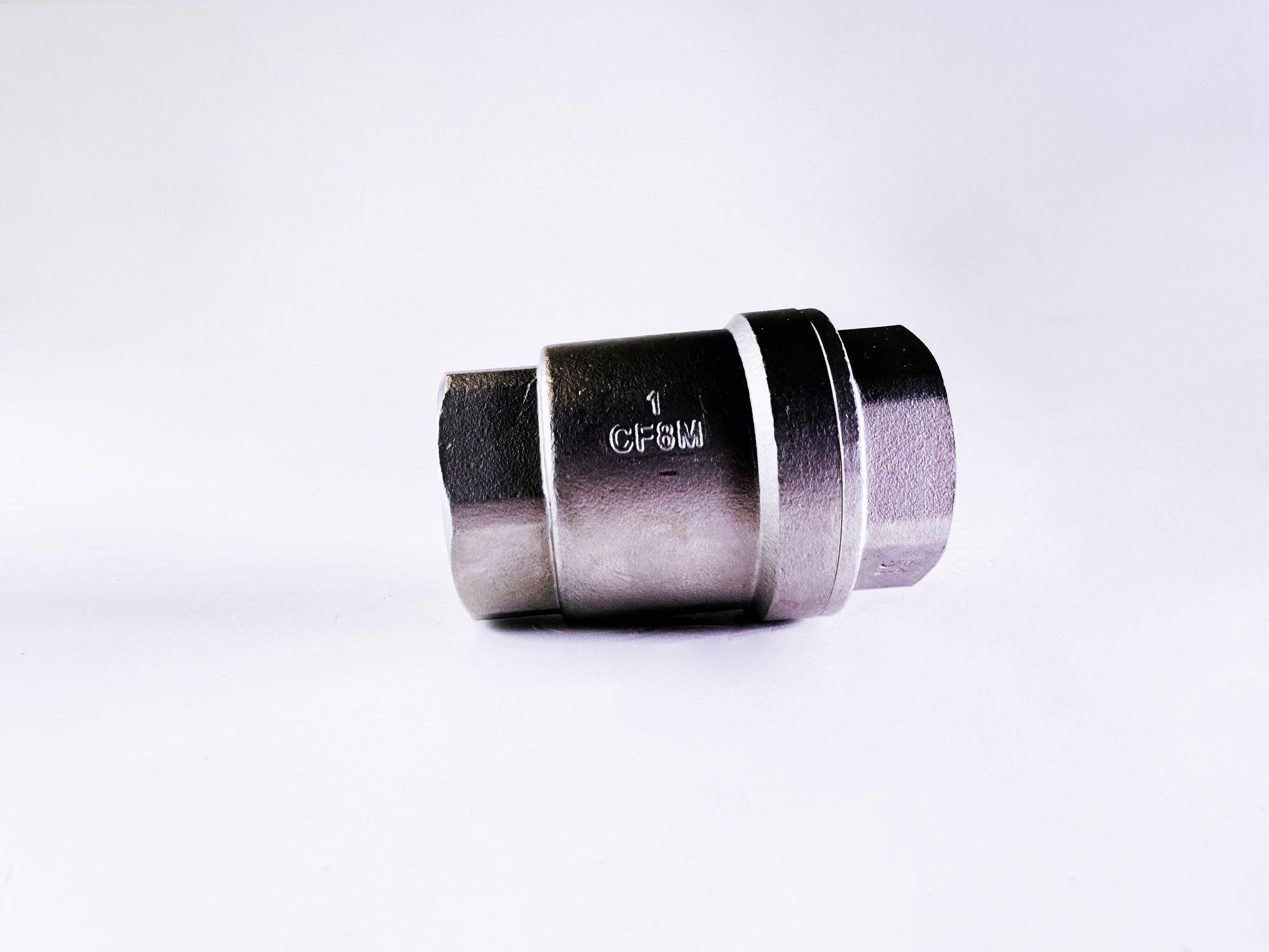

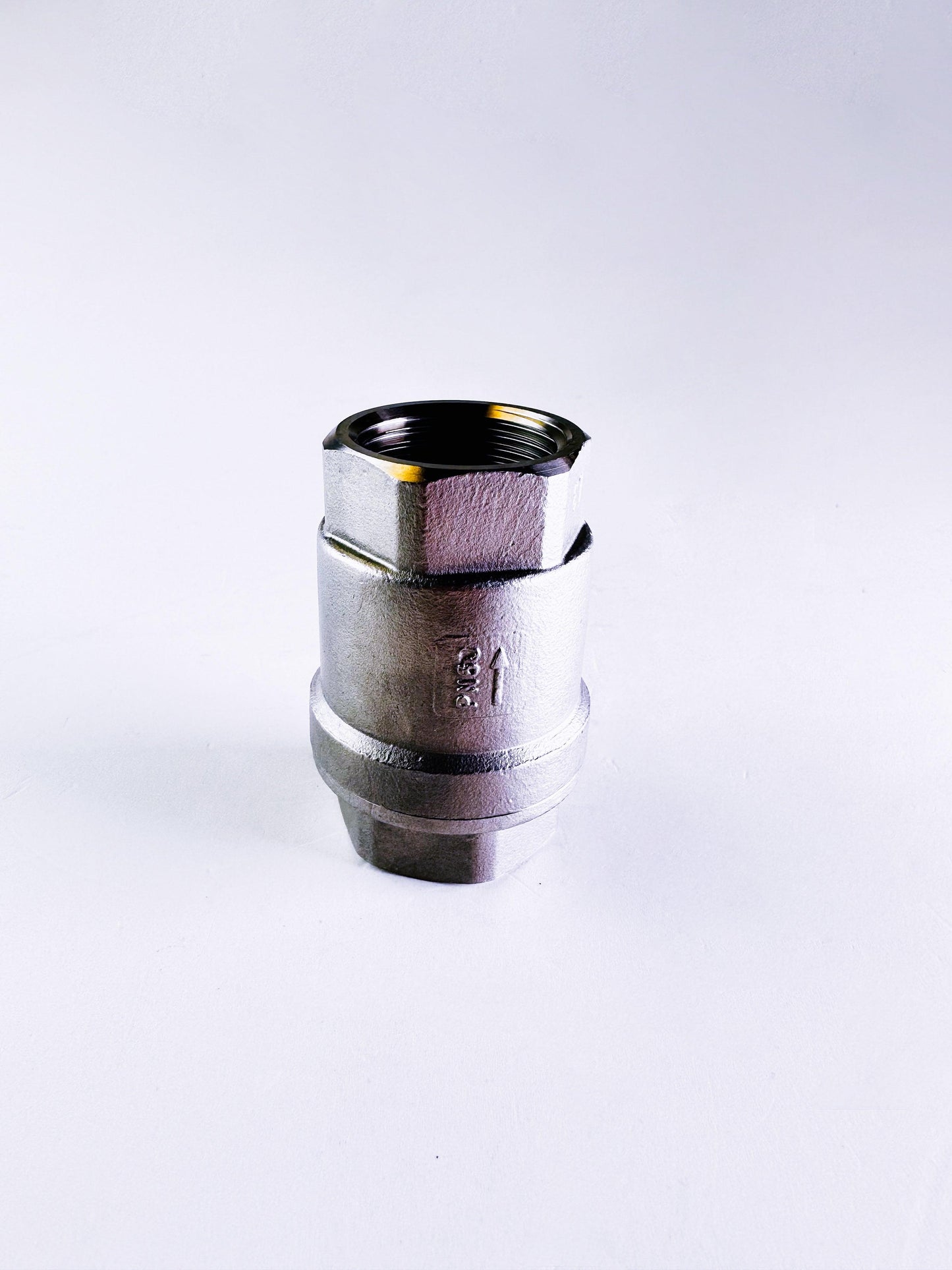

Vertical Spring Check Valve
Seal: Metal-to-Metal/ Soft
Pressure Rating: 1000PSI (PN63)
Working Temperature: -25°C to +180°C
Material: CF8M
| PART | MATERIAL |
| Cap | CF8M |
| Body Gasket | PTFE |
| Disc | CF8M |
| Body | CF8M |
| Spring | CF8M |
DIMENSION LIST
| SIZE | d | D | L |
| 1/4" | 8 | 30.5 | 530 |
| 3/8" | 10 | 30.5 | 53 |
| 1/2" | 15 | 37 | 56 |
| 3/4" | 20 | 42 | 63 |
| 1" | 25 | 48 | 74 |
| 1.1/4" | 30 | 58 | 81 |
| 1.1/2" | 38 | 70 | 91 |
| 2" | 47 | 82 | 97 |
| 2.1/2" | 61 | 102.5 | 118 |
| 3" | 75 | 120 | 138 |
| 4" | 94 | 150 | 158 |
