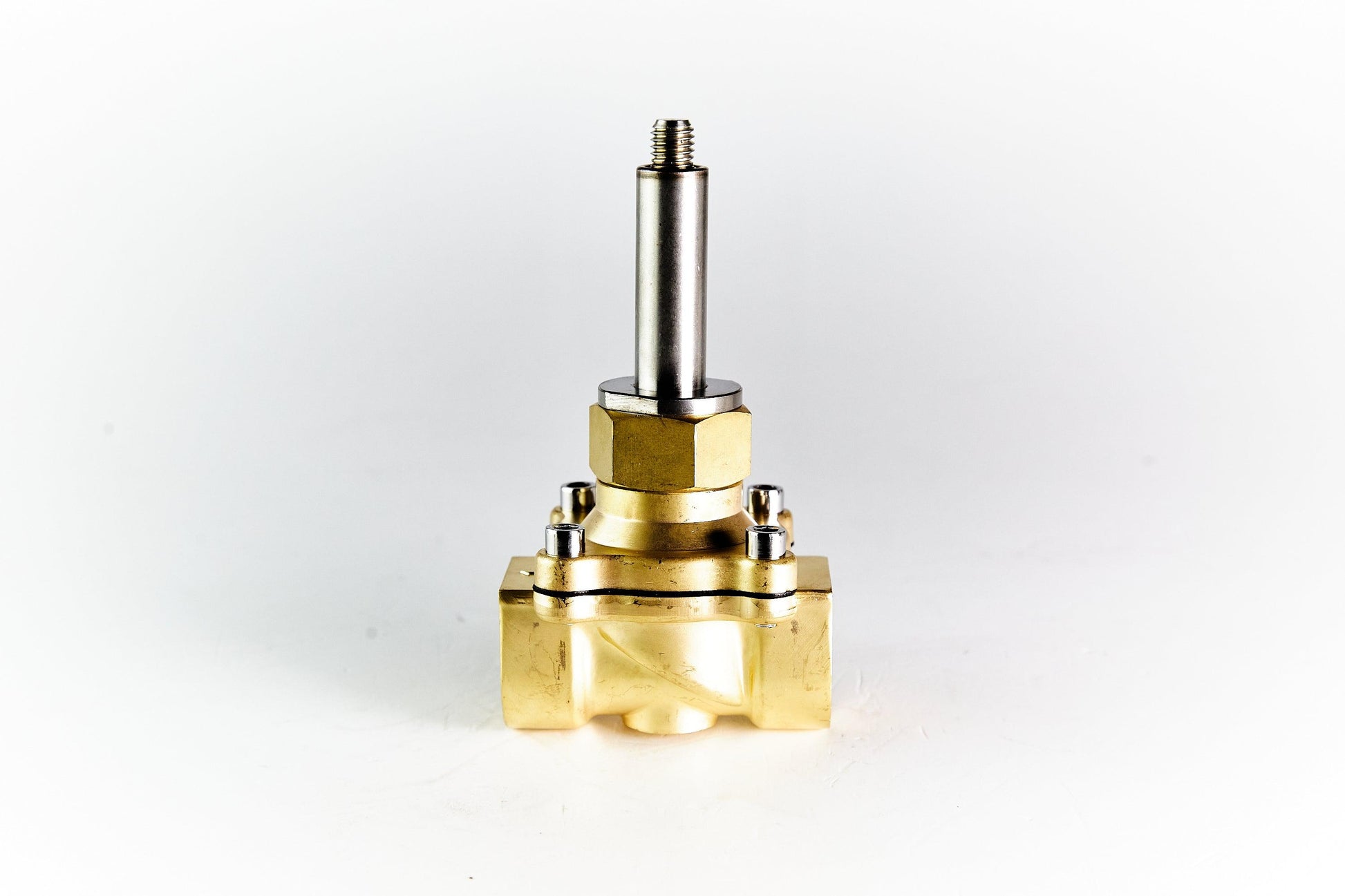

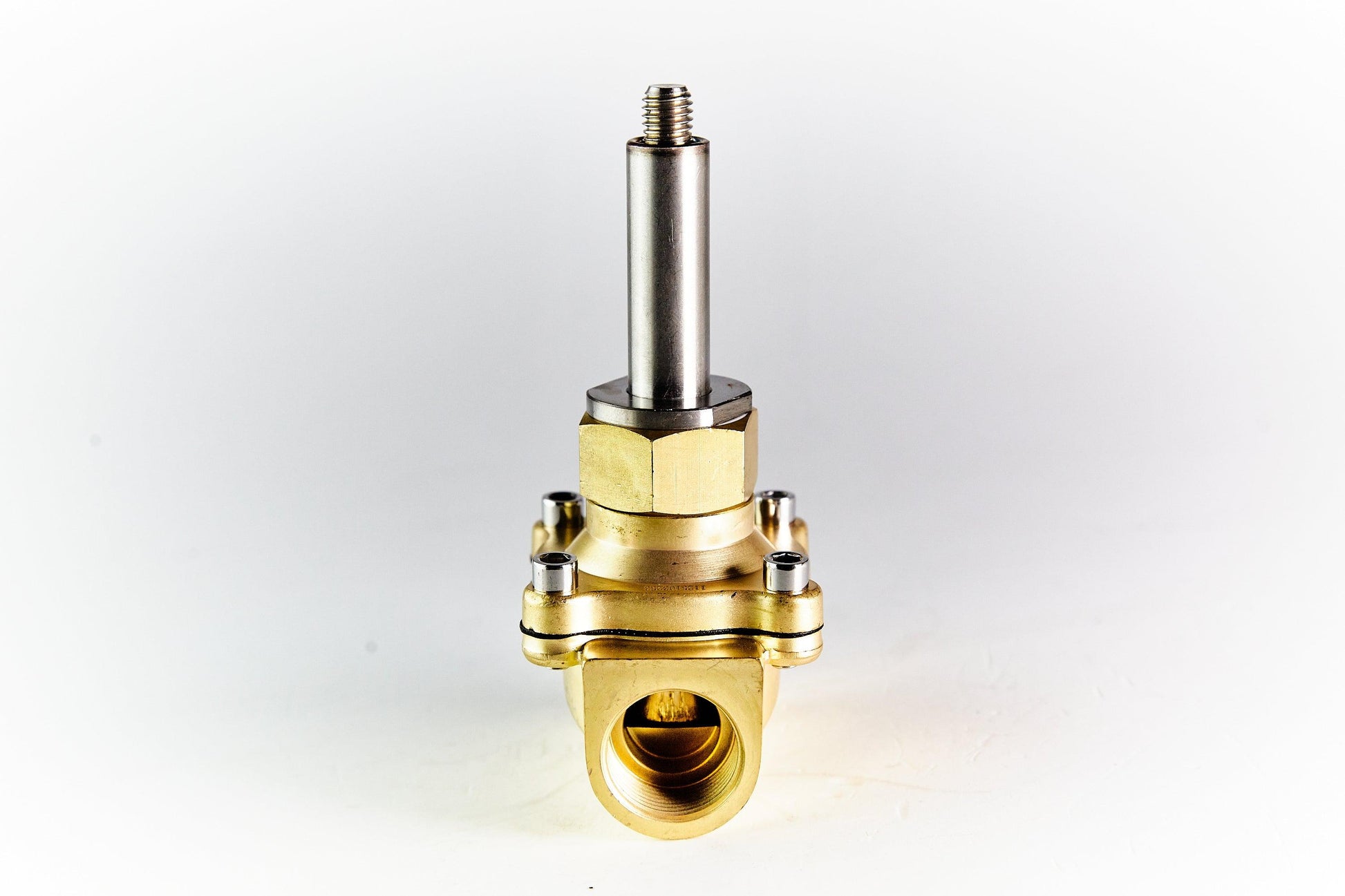

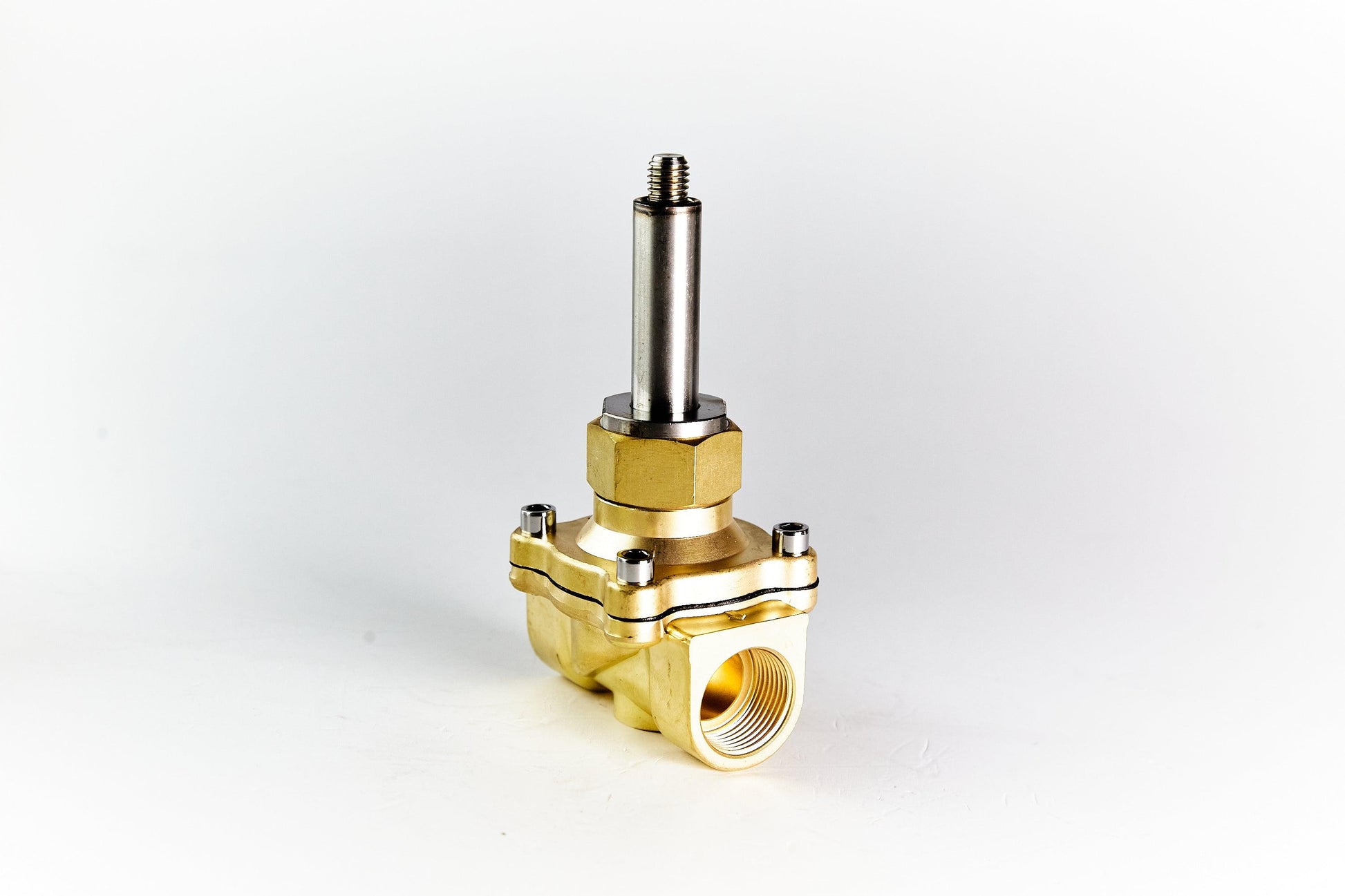

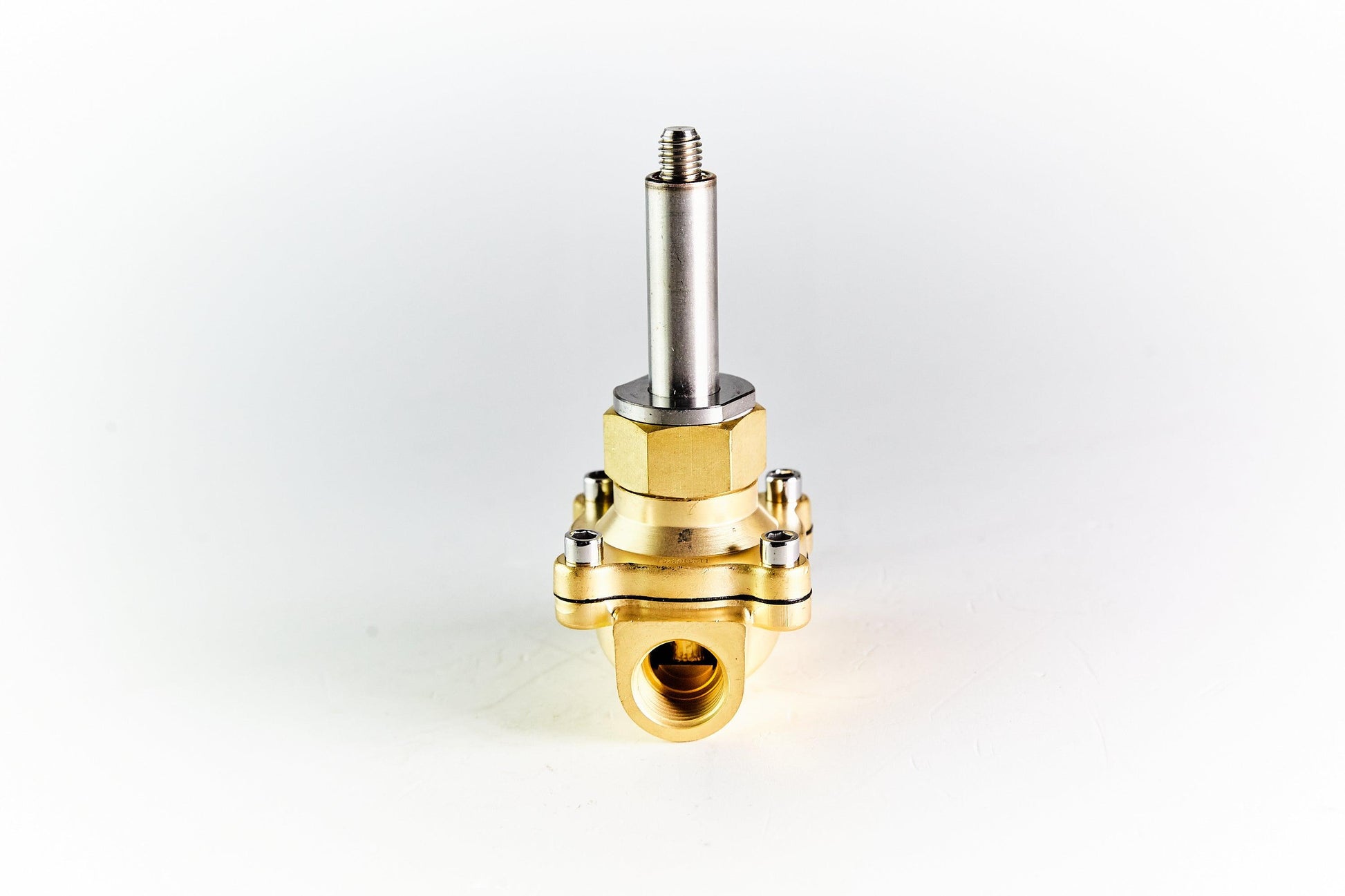

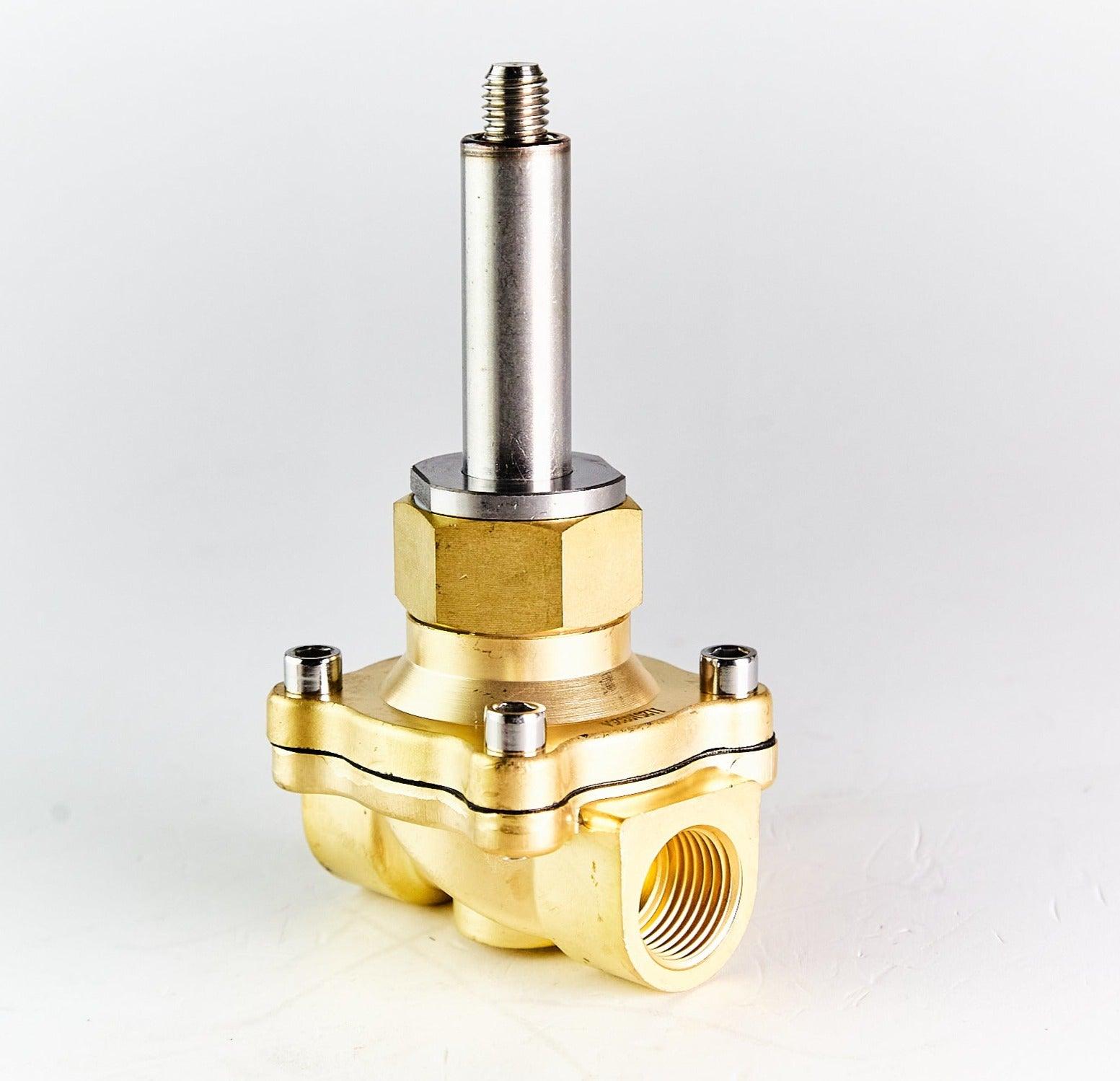

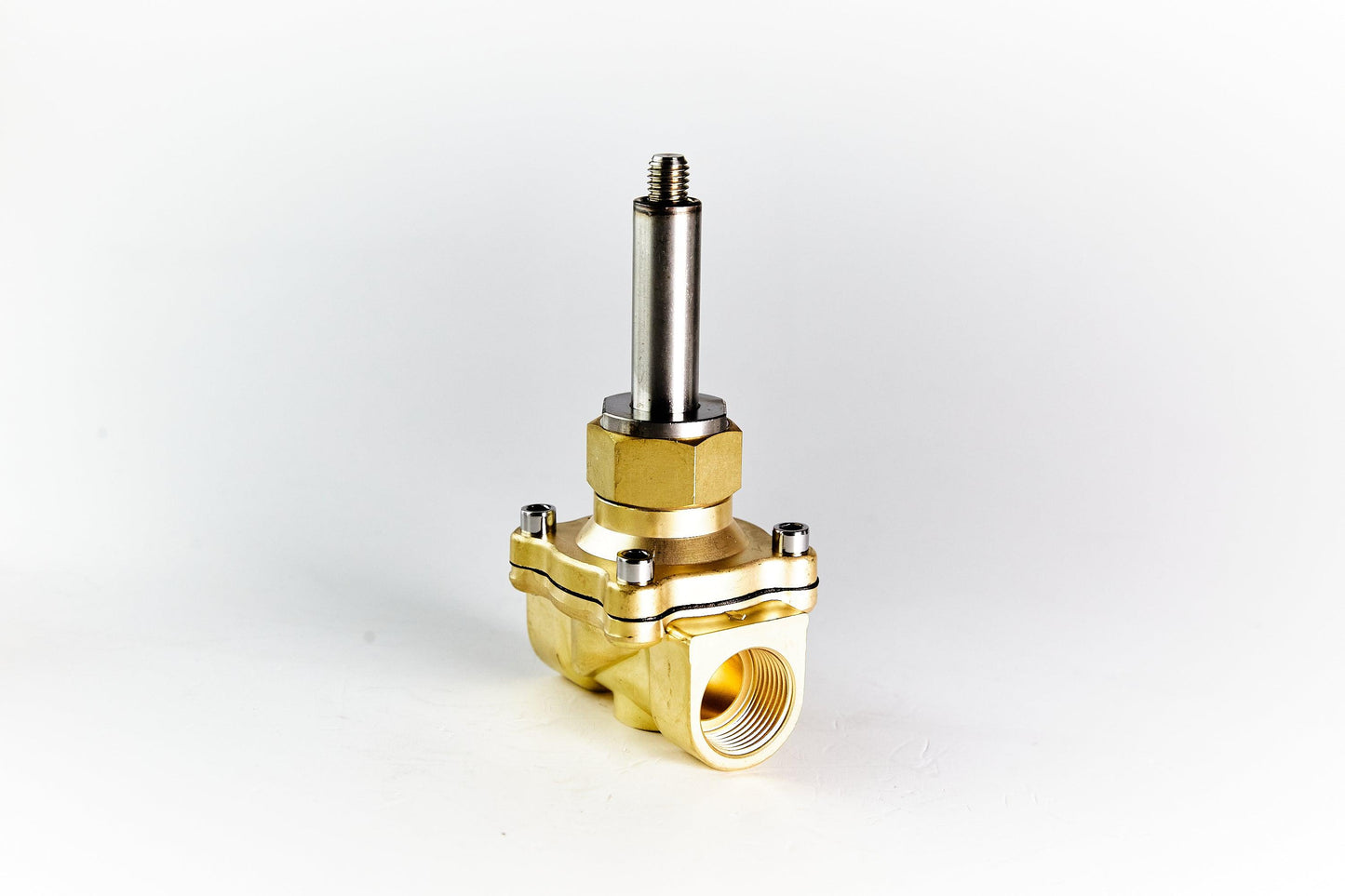

ZS Brass 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Open
ZS Brass 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Open
Regular price
£52.60
Regular price
Sale price
£52.60
Unit price
per
We have 14 in stock
Couldn't load pickup availability
Brand: Sanlixin
Body Material: Forged Brass / Cast Brass
Ambient Temperature: 0°C - 65°C
Fluids Temperature: 0°C - 120°C
Working Pressure (Bar): AC: 0 - 10 | DC: 0 - 6
Flow as arrow, mounts in any position
Best position is solenoid vertical and upright direction.
| Part Code | Size | Coil | Orifice | CV Factor | Dimensions (LxWxH) |
|---|---|---|---|---|---|
| ZS1DF**E1D16 | 1/2" | No Coil | 16 | 4.8 | 69x57x106 |
| ZS1DF**E1D16 c/w D01-4106 | 24 VDC | ||||
| ZS1DF**E1D16 c/w D01-5104 | 24 VAC | ||||
| ZS1DF**E1D16 c/w D01-4102 | 110 VAC | ||||
| ZS1DF**E1D16 c/w D01-4101A | 220 VAC | ||||
| ZS1DF**E1E20 | 3/4" | No Coil | 20 | 7.6 | 73x57x114 |
| ZS1DF**E1E20 c/w D01-4106 | 24 VDC | ||||
| ZS1DF**E1E20 c/w D01-5104 | 24 VAC | ||||
| ZS1DF**E1E20 c/w D01-4102 | 110 VAC | ||||
| ZS1DF**E1E20 c/w D01-4101A | 220 VAC | ||||
| ZS1DF**E1G25 | 1" | No Coil | 25 | 12 | 99x77x121 |
| ZS1DF**E1G25 c/w D01-4106 | 24 VDC | ||||
| ZS1DF**E1G25 c/w D01-5104 | 24 VAC | ||||
| ZS1DF**E1G25 c/w D01-4102 | 110 VAC | ||||
| ZS1DF**E1G25 c/w D01-4101A | 220 VAC |
