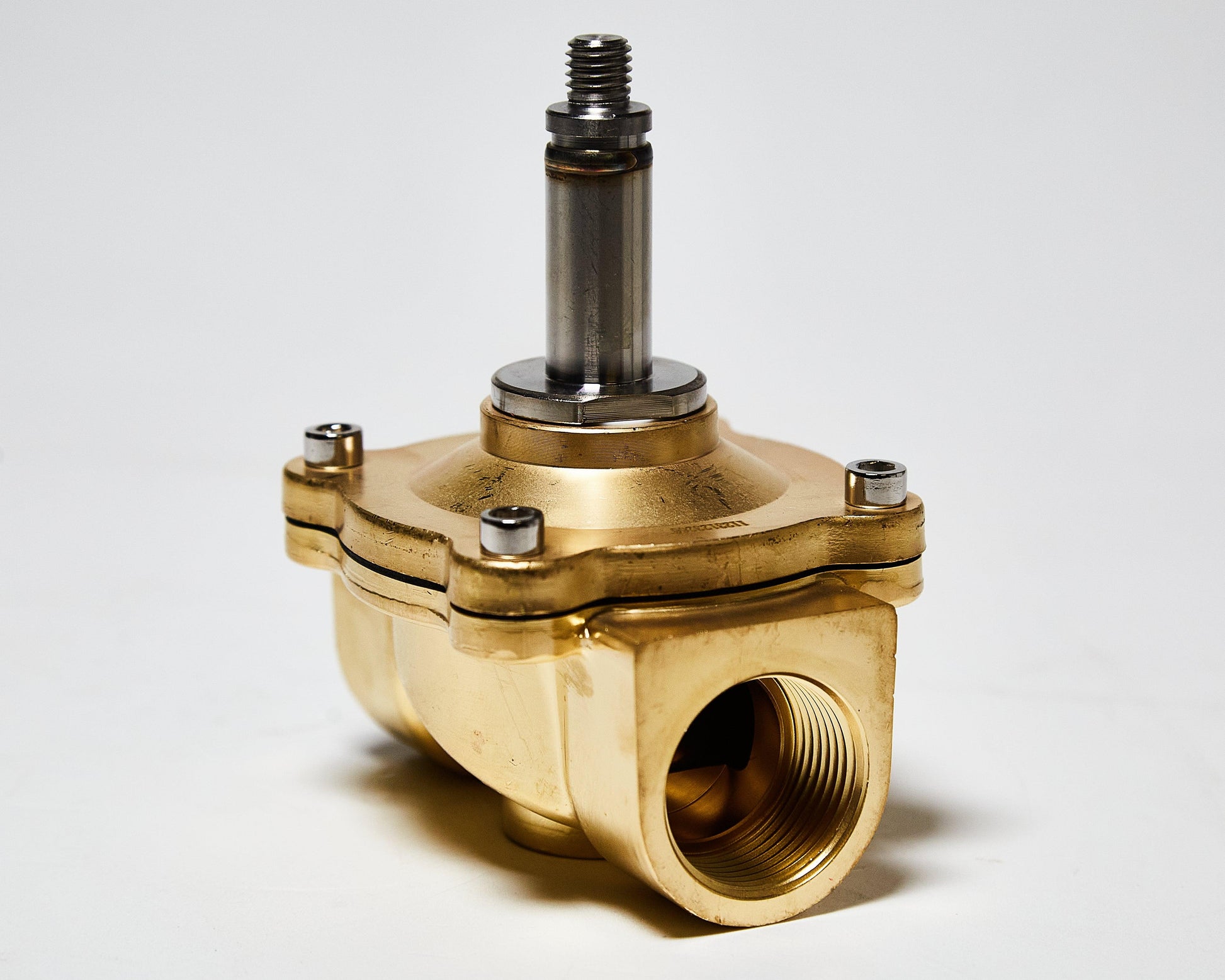

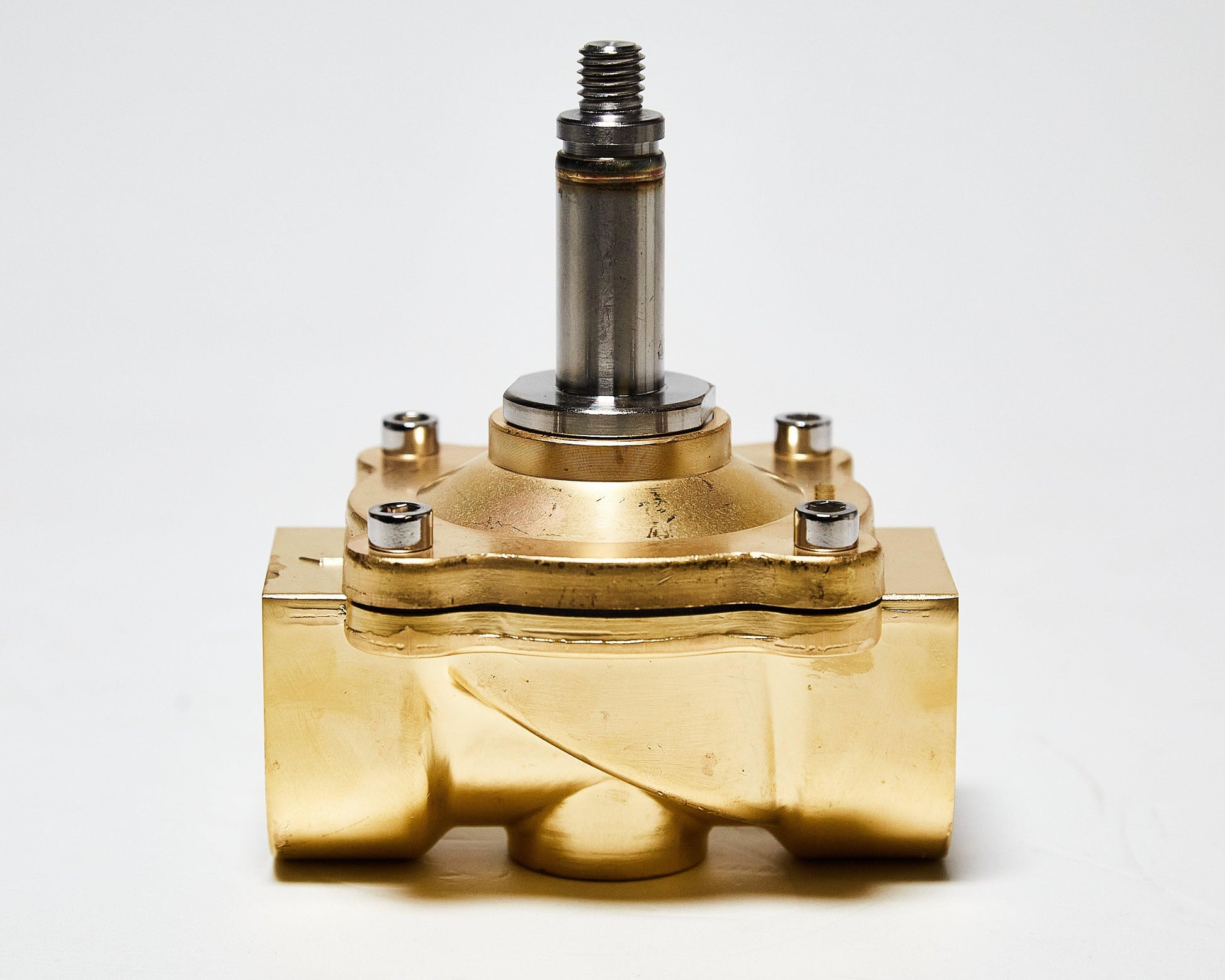

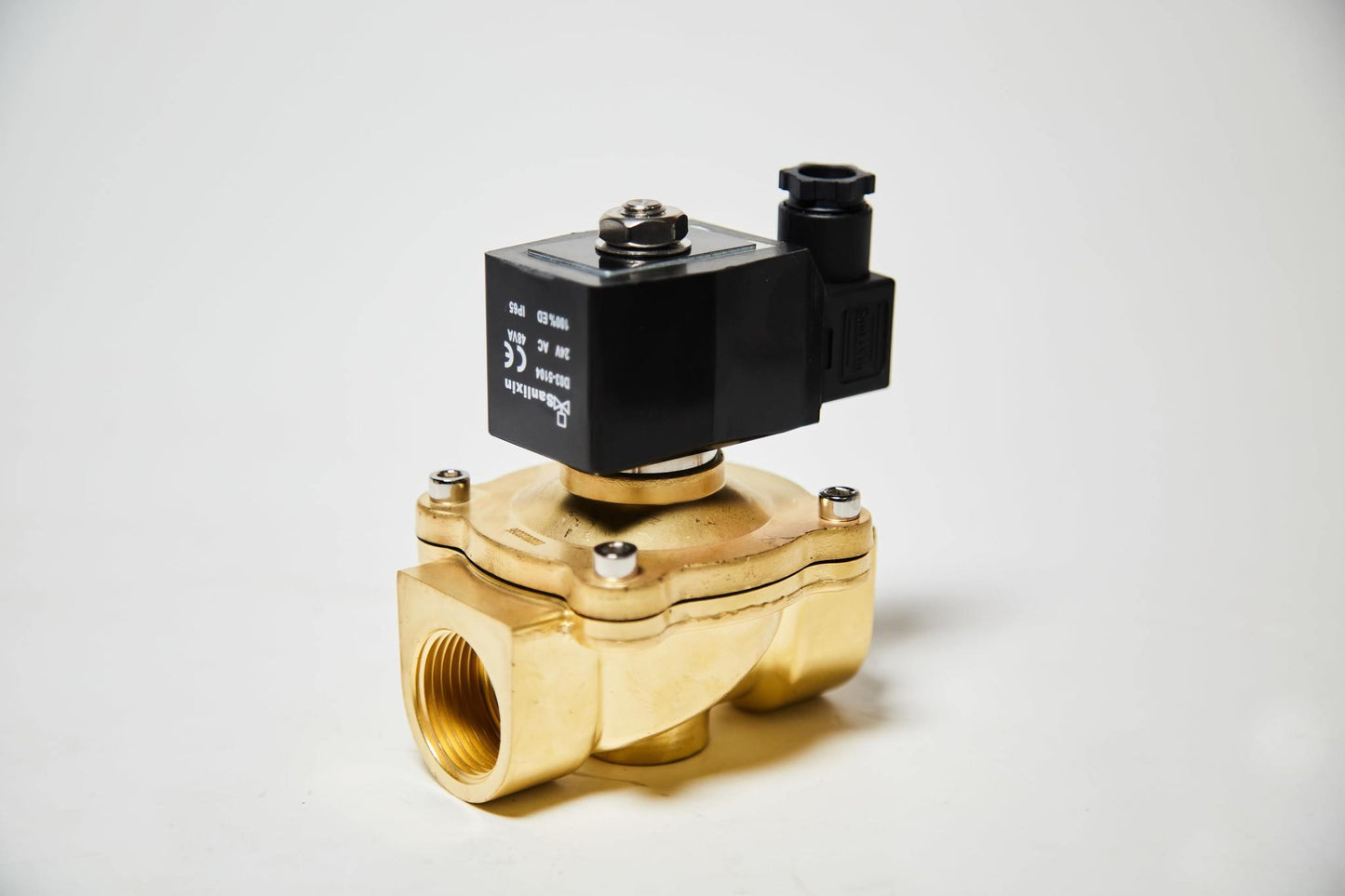

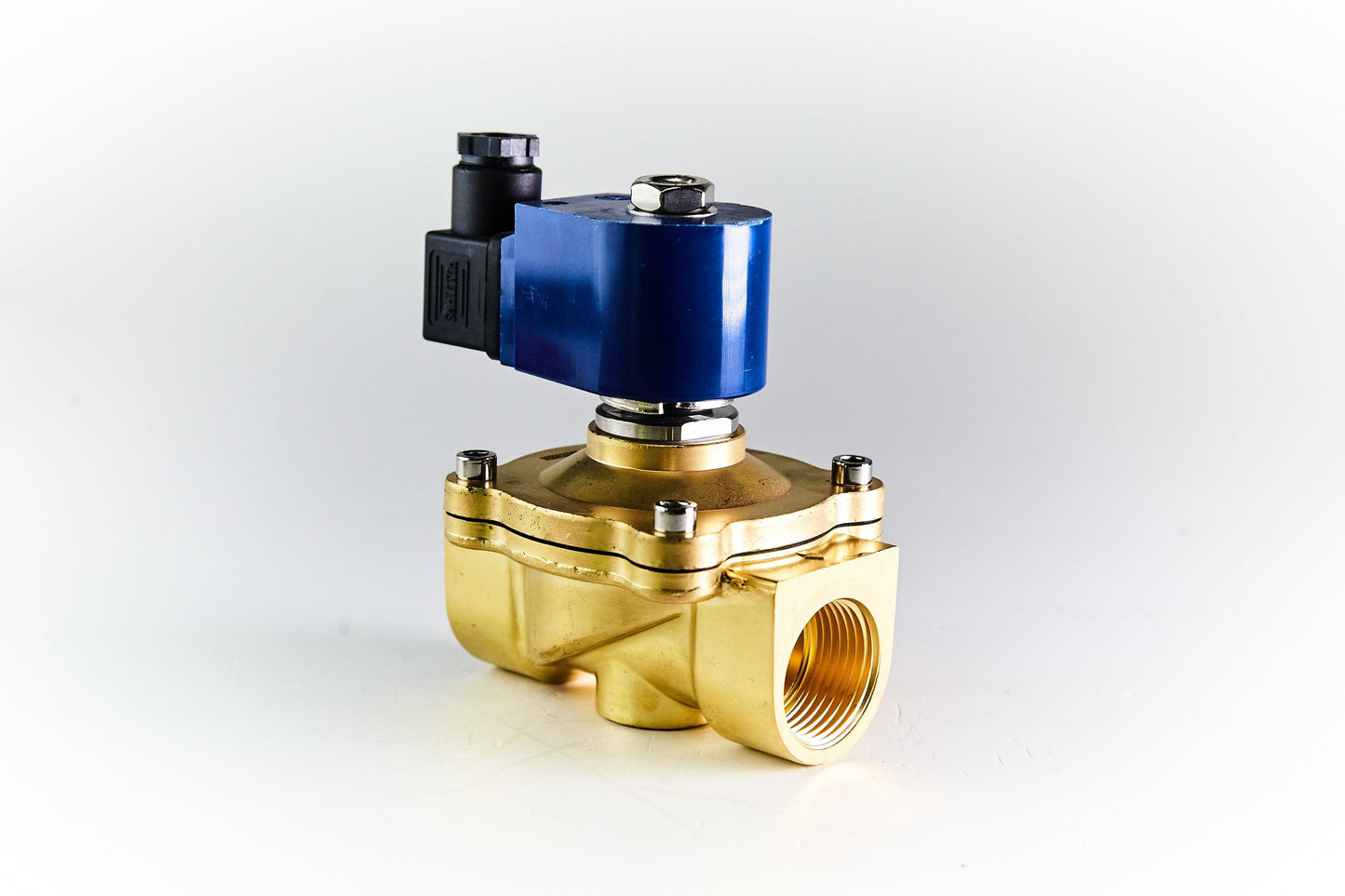

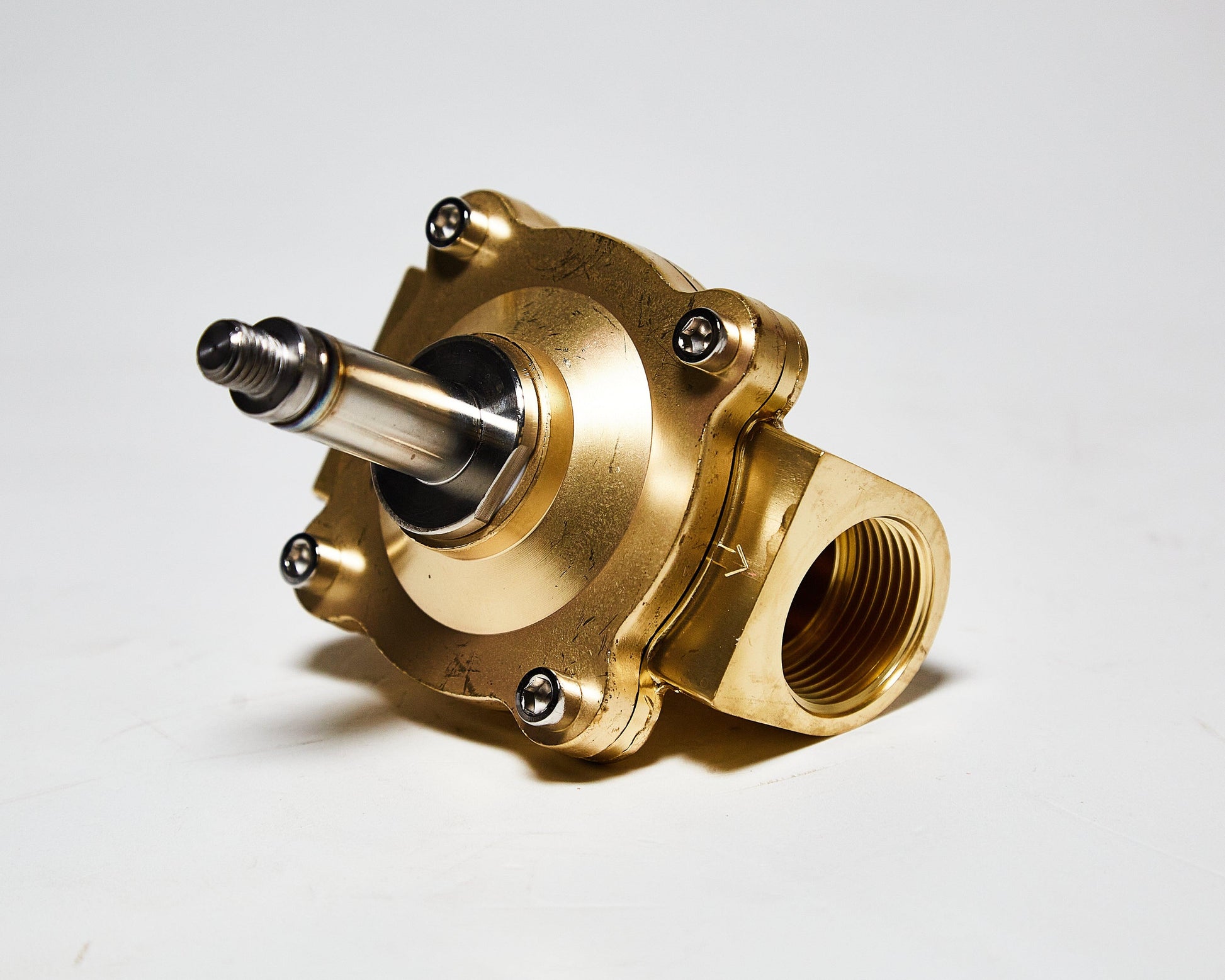

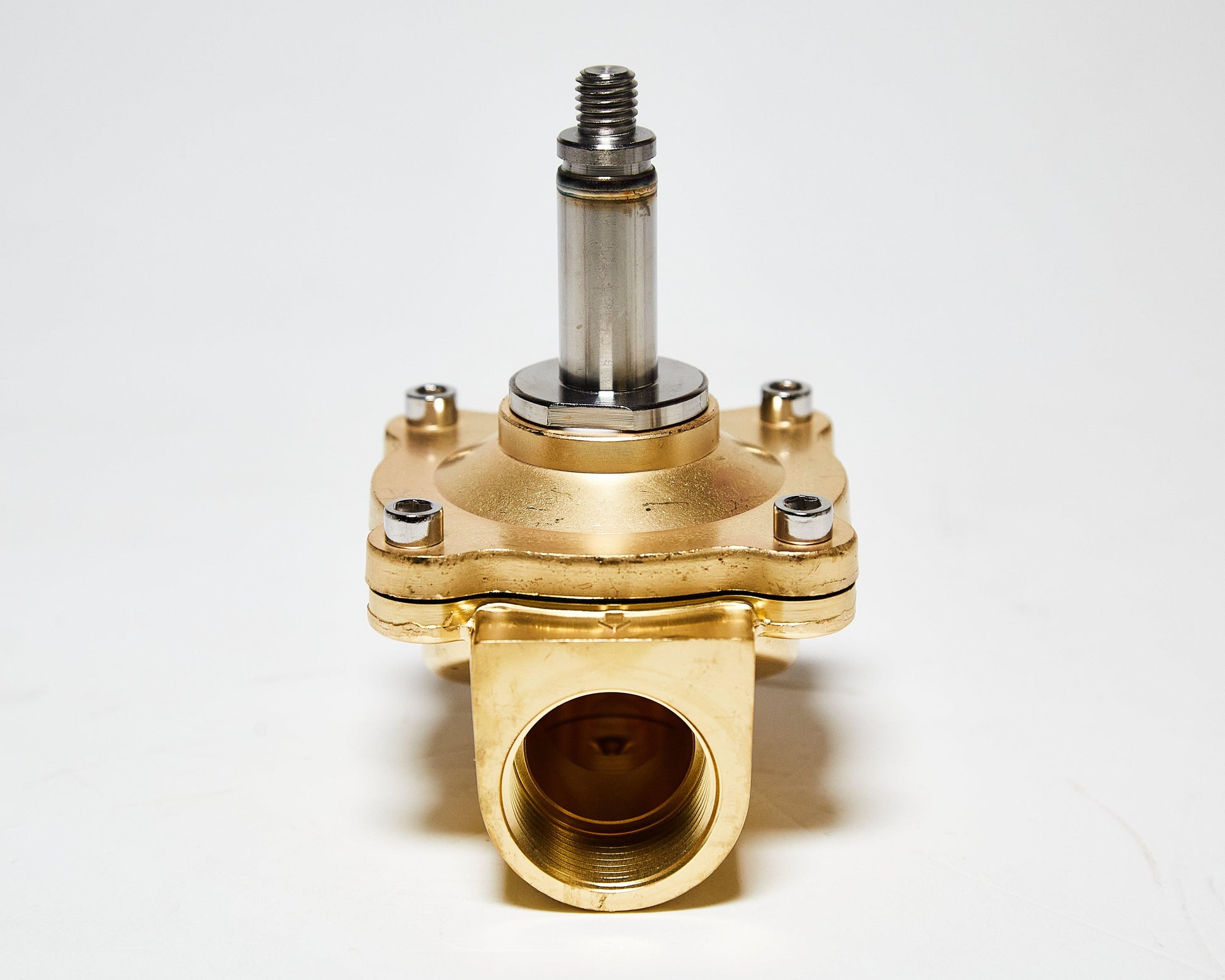

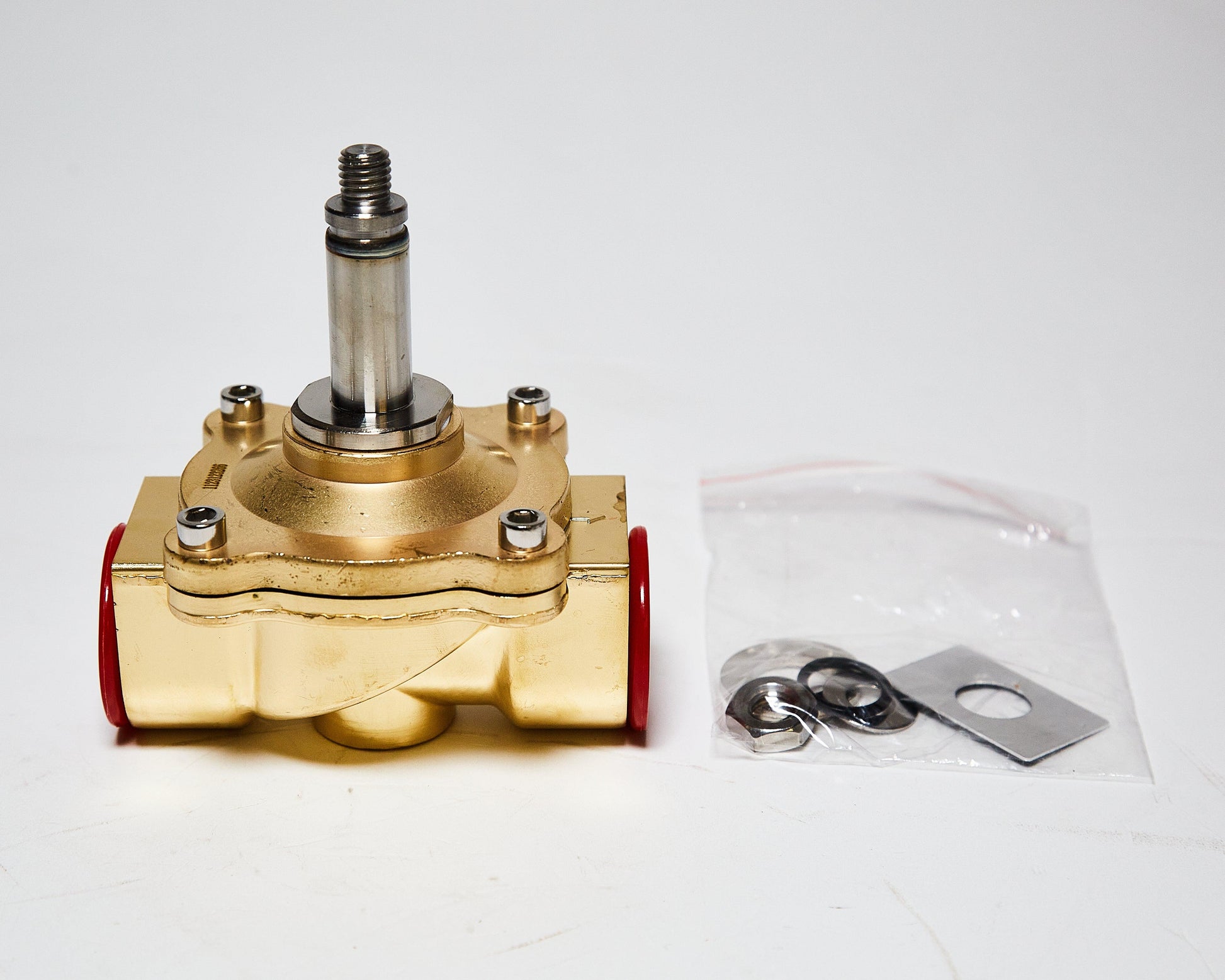

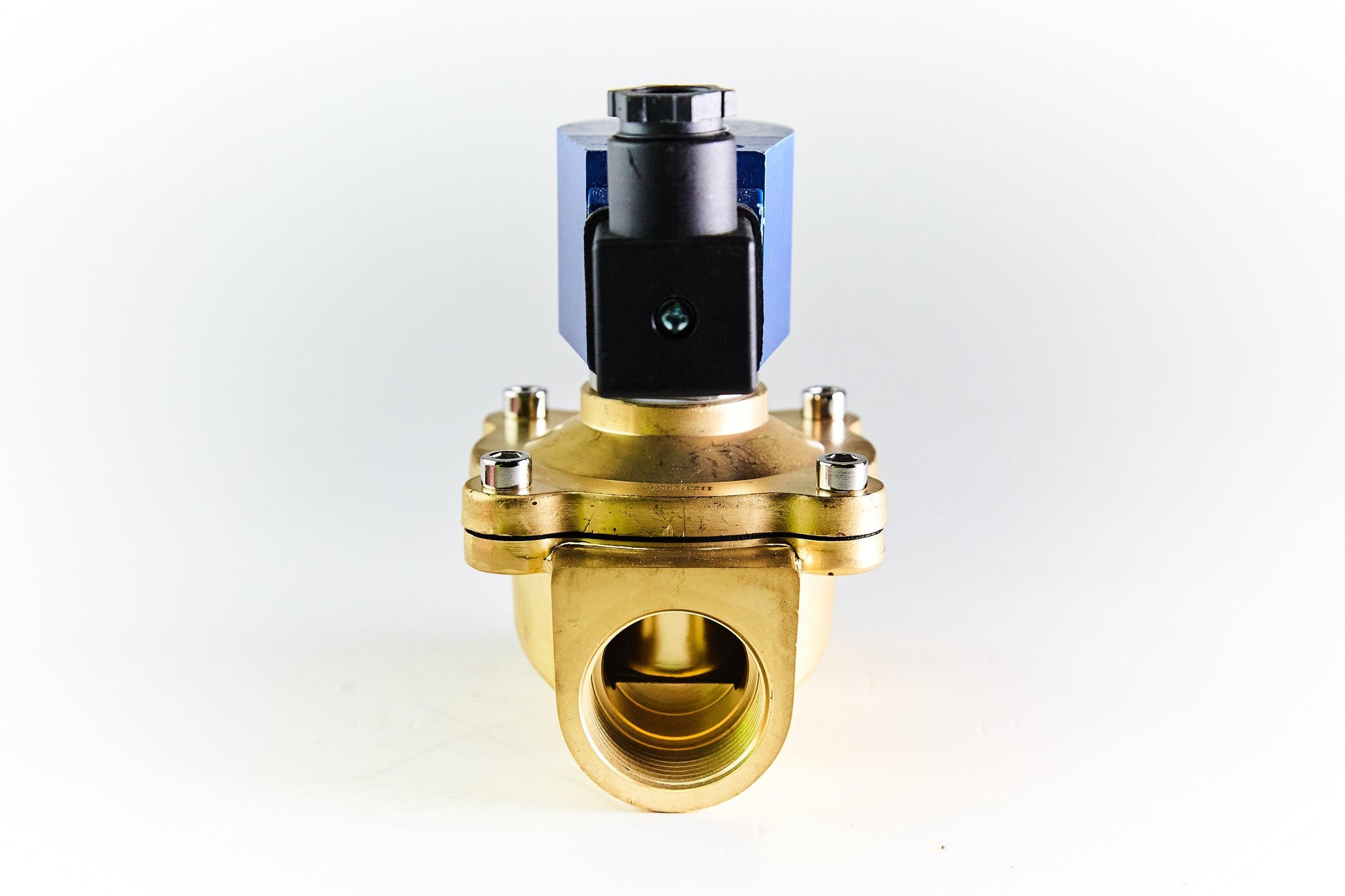

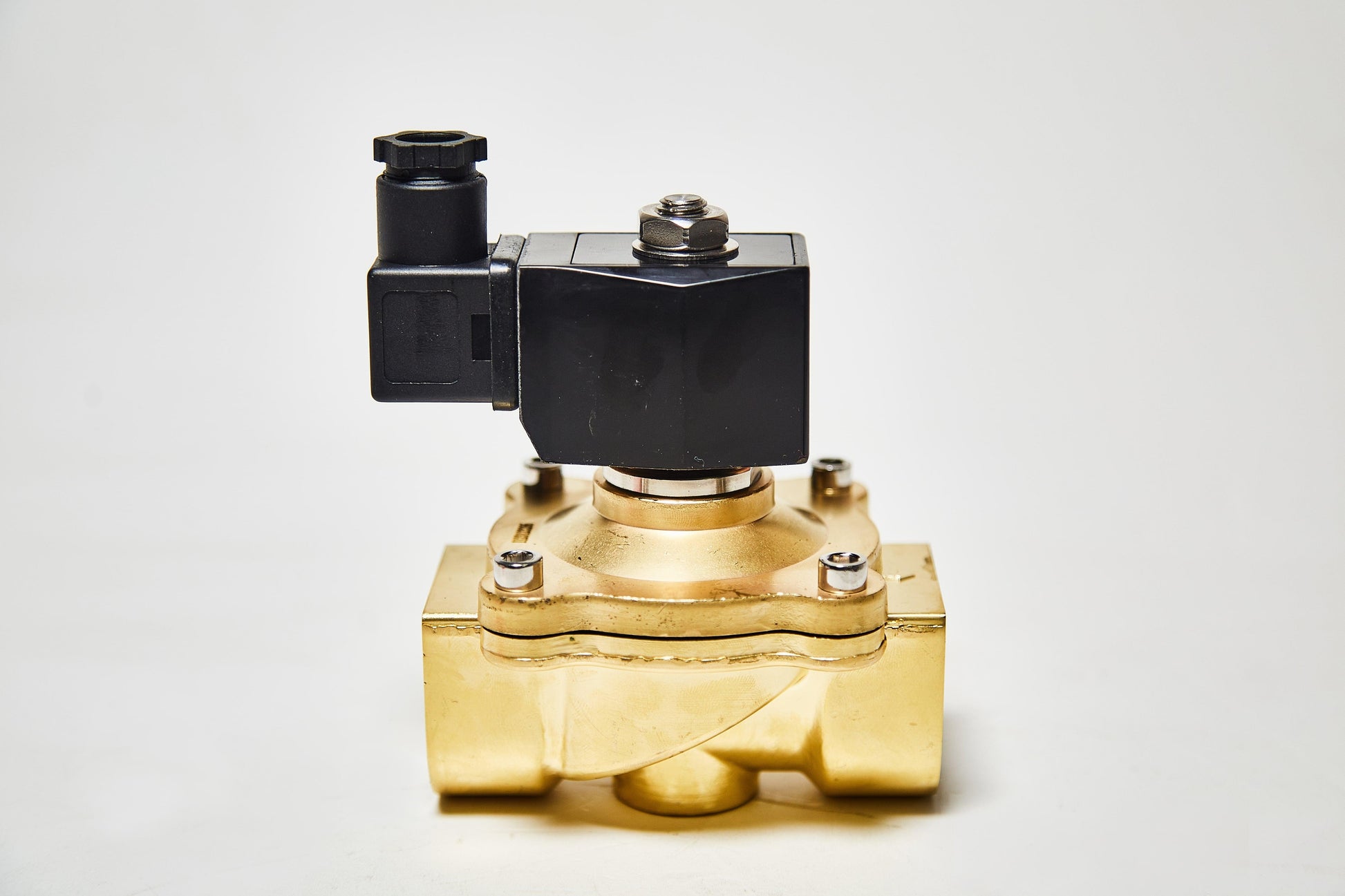

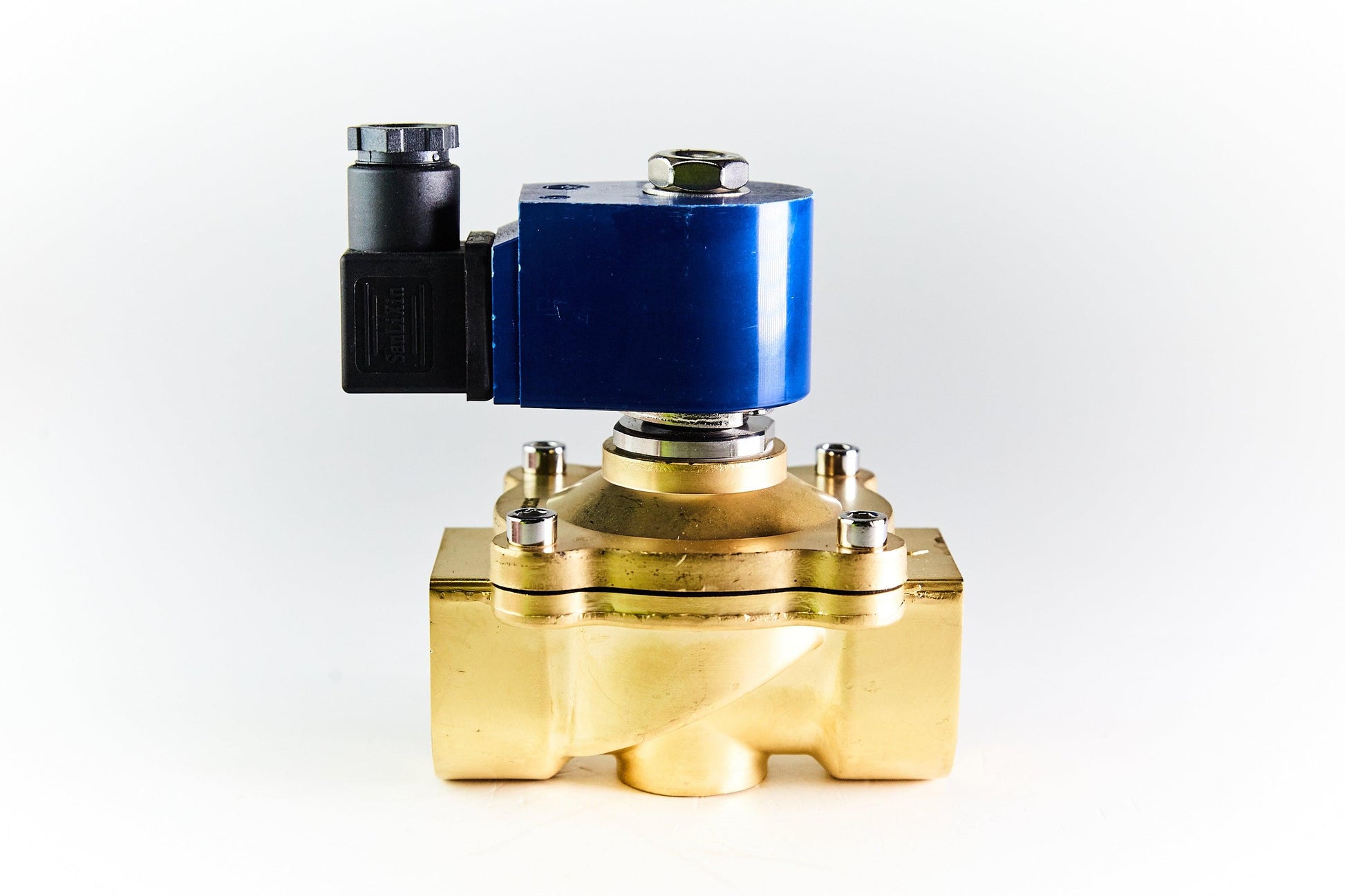

ZS Brass 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed

ZS Brass 2/2-Way Large Diameter, Direct Acting Solenoid Valve, Normally Closed

Regular price £18.04
Regular price Sale price £18.04
Sale Sold out
Size

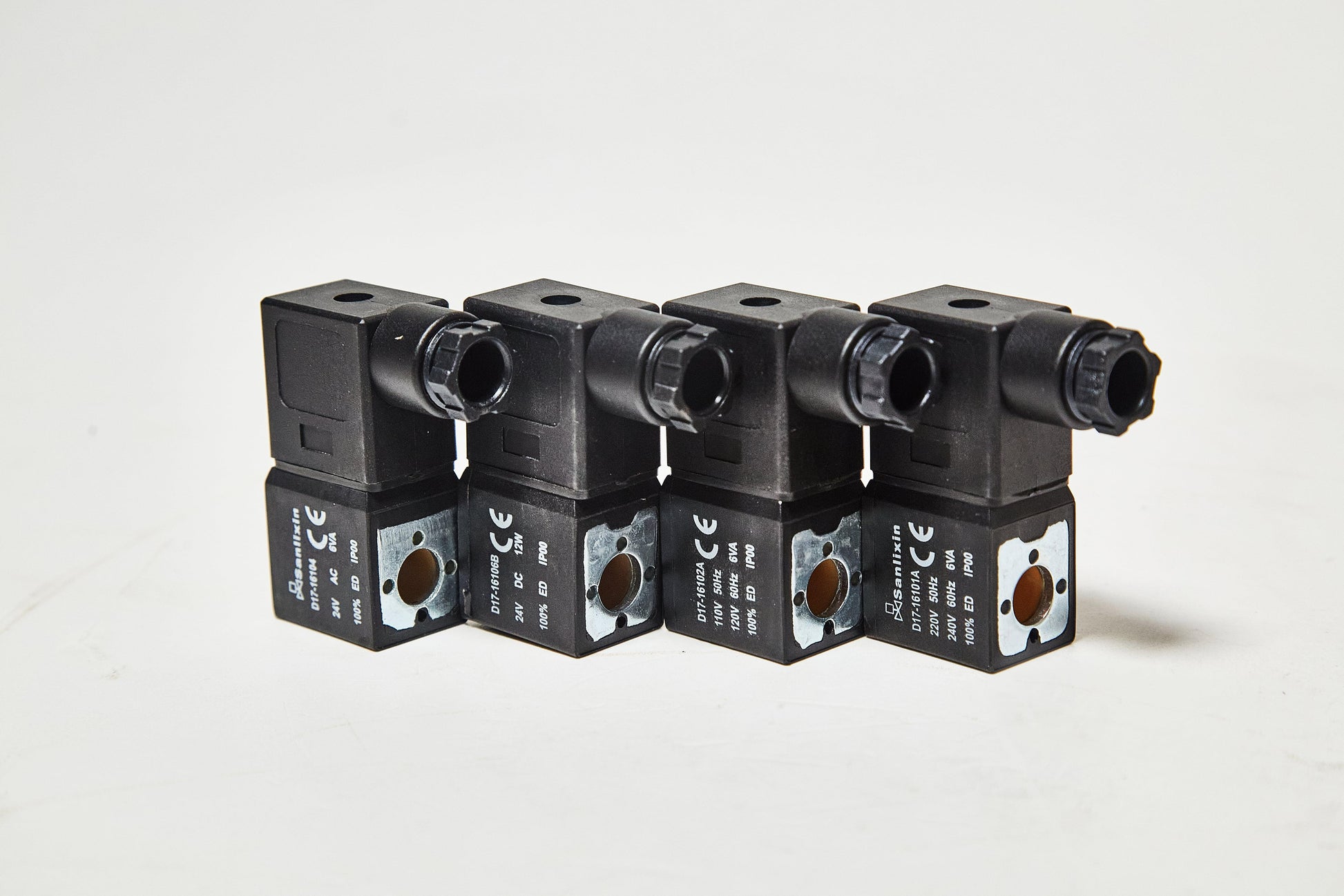

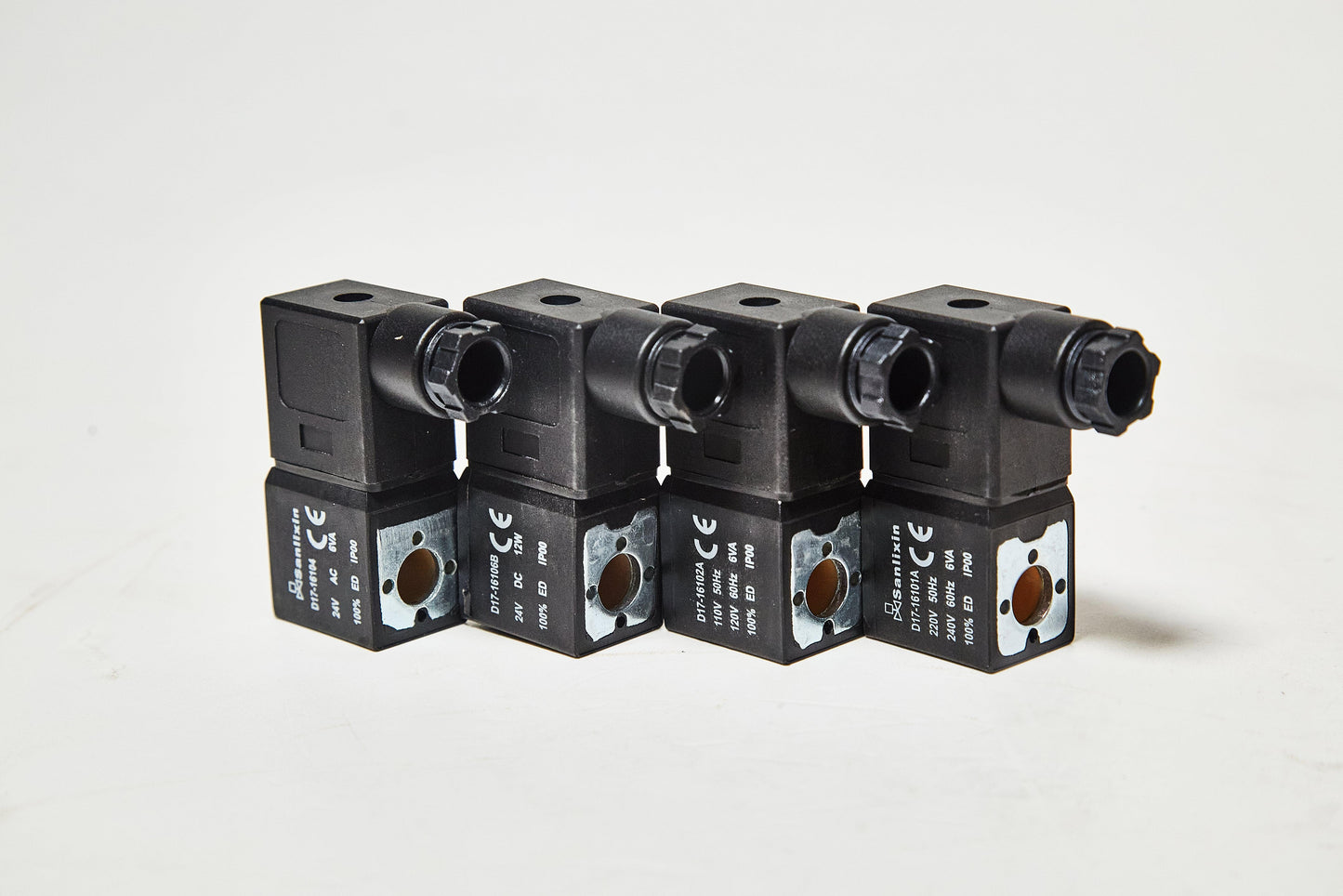

Coil Type
We have 38 in stock

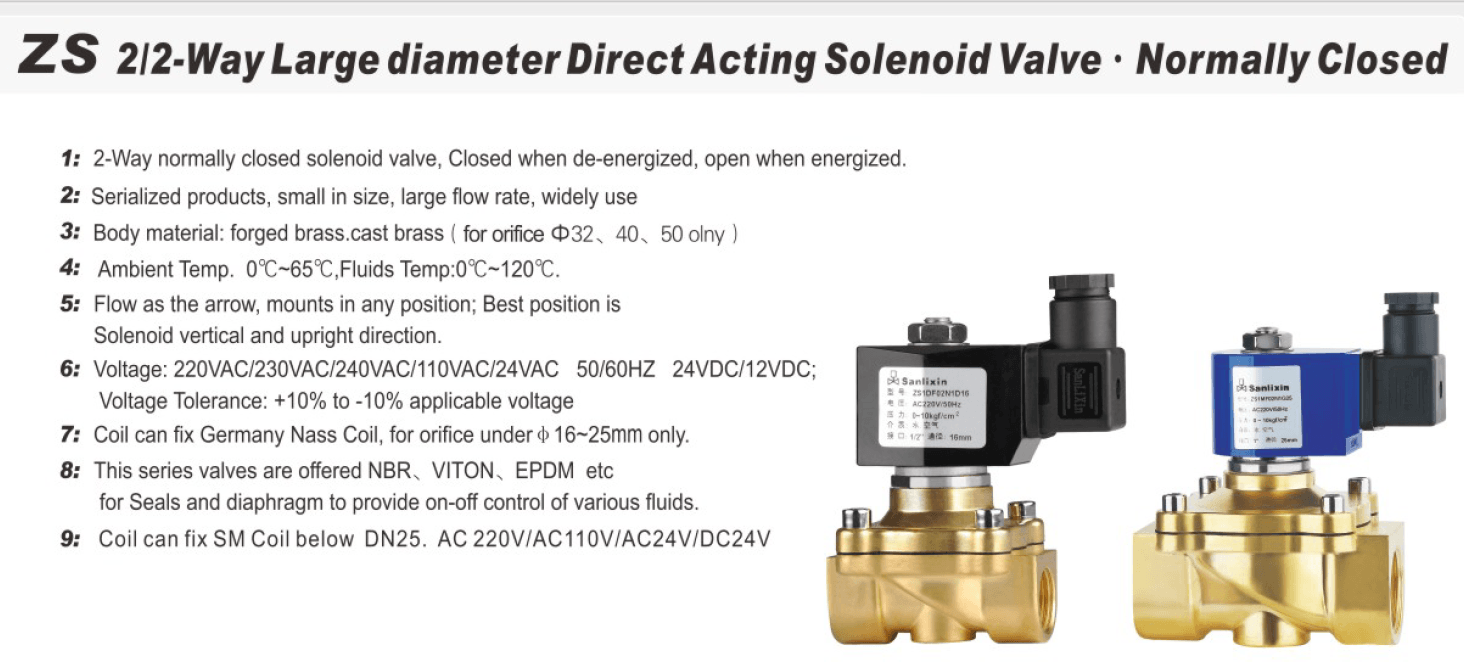

Brand: Sanlixin
Body Material: Forged Brass / Cast Brass
Ambient Temperature: 0°C - 65°C
Fluids Temperature: 0°C - 120°C
Working Pressure (Bar): AC: 0 - 10 | DC: 0 - 6

Flow as arrow, mounts in any position
Best position is solenoid vertical and upright direction.

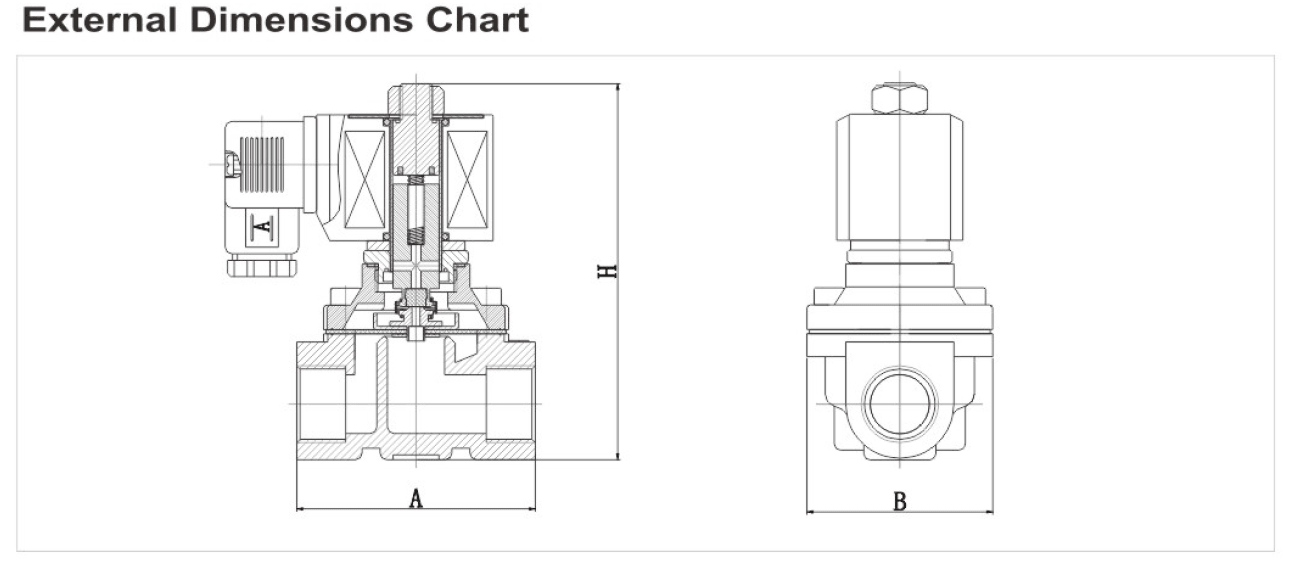

Size Orifice (mm) CV Factor External Dimensions
Length x Width x Height (AxBxH)
3/8" 16 4.8 69 x 57 x 106
1/2" 16 4.8 69 x 57 x 106
3/4" 20 7.6 73 x 57 x 114
1" 25 12 99 x 77 x 121
1.1/4" 32 24 112 x 86.5 x 150
1.1/2" 40 29 123 x 94 x 160
2" 50 48 168 x 123 x 183
