Short Weld Pulled Tee Piece - 304SS

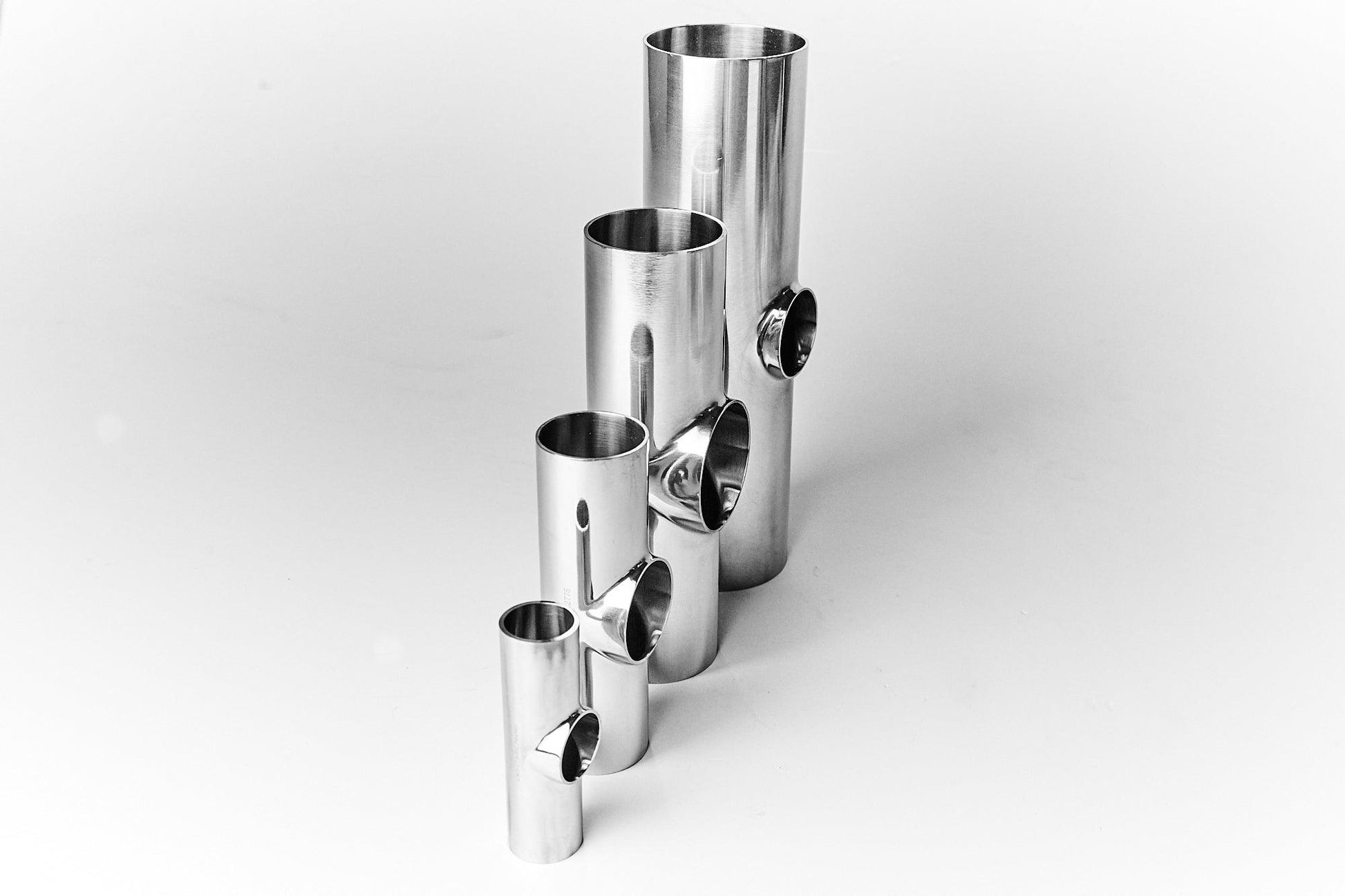

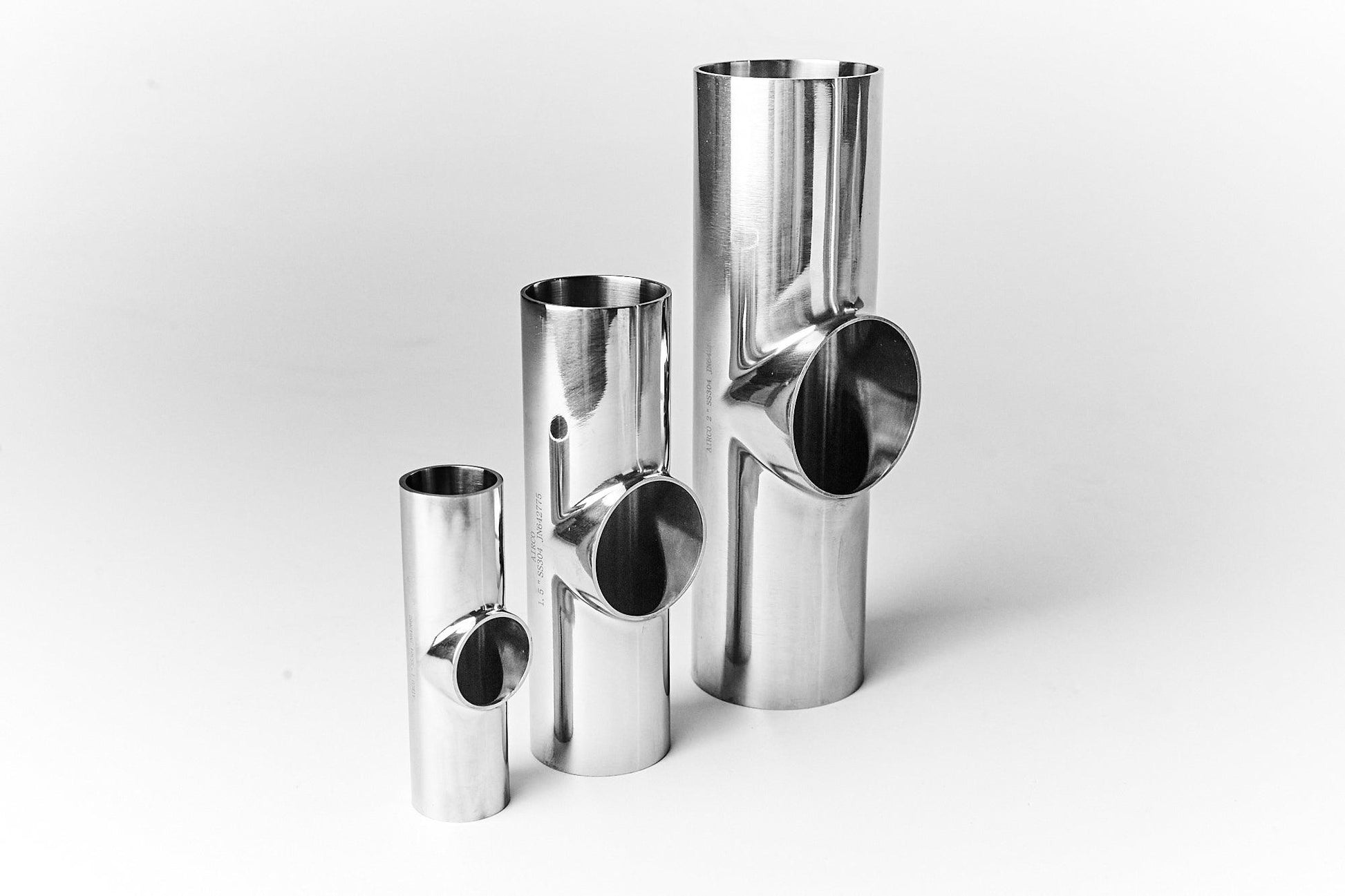

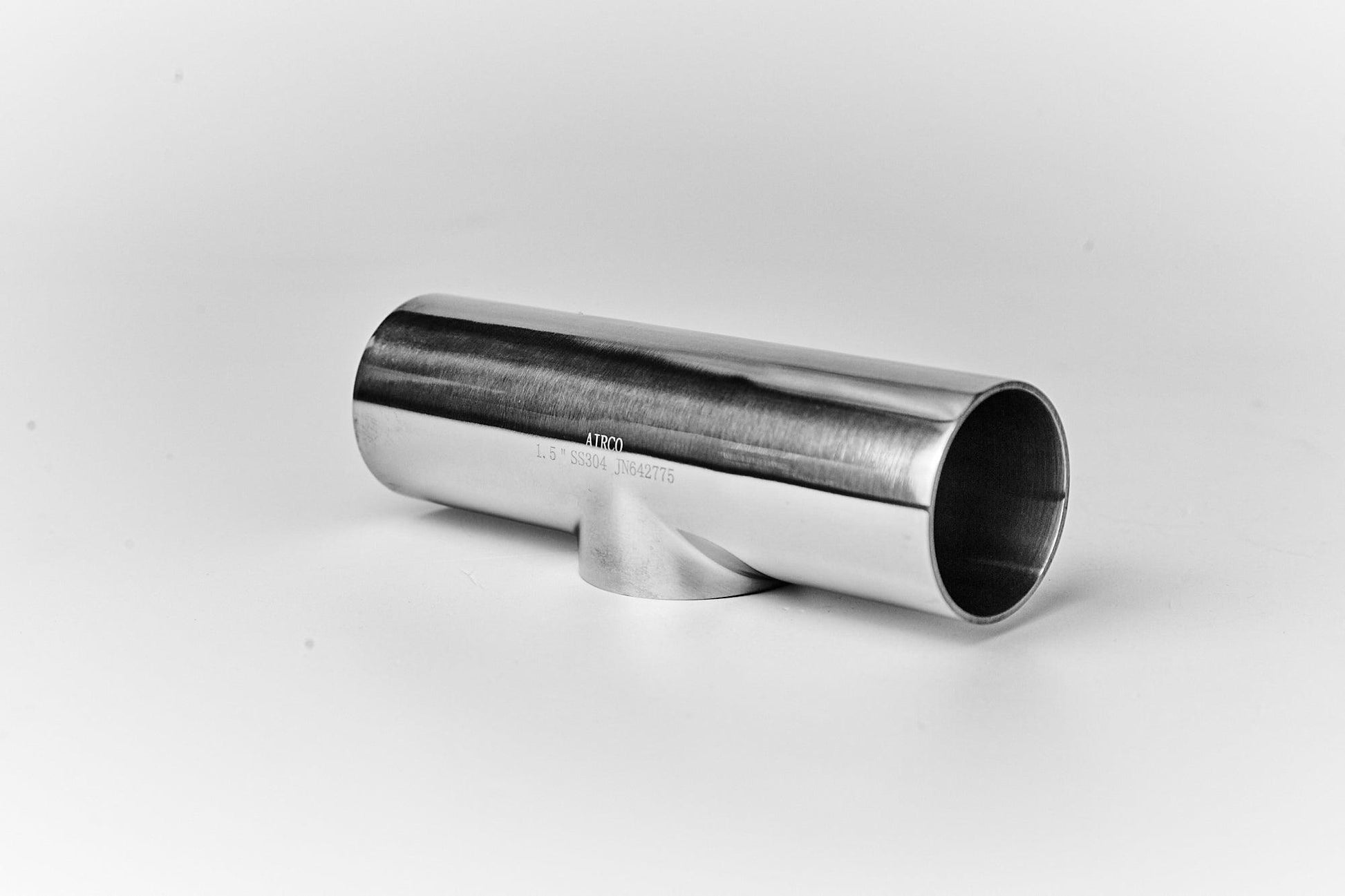

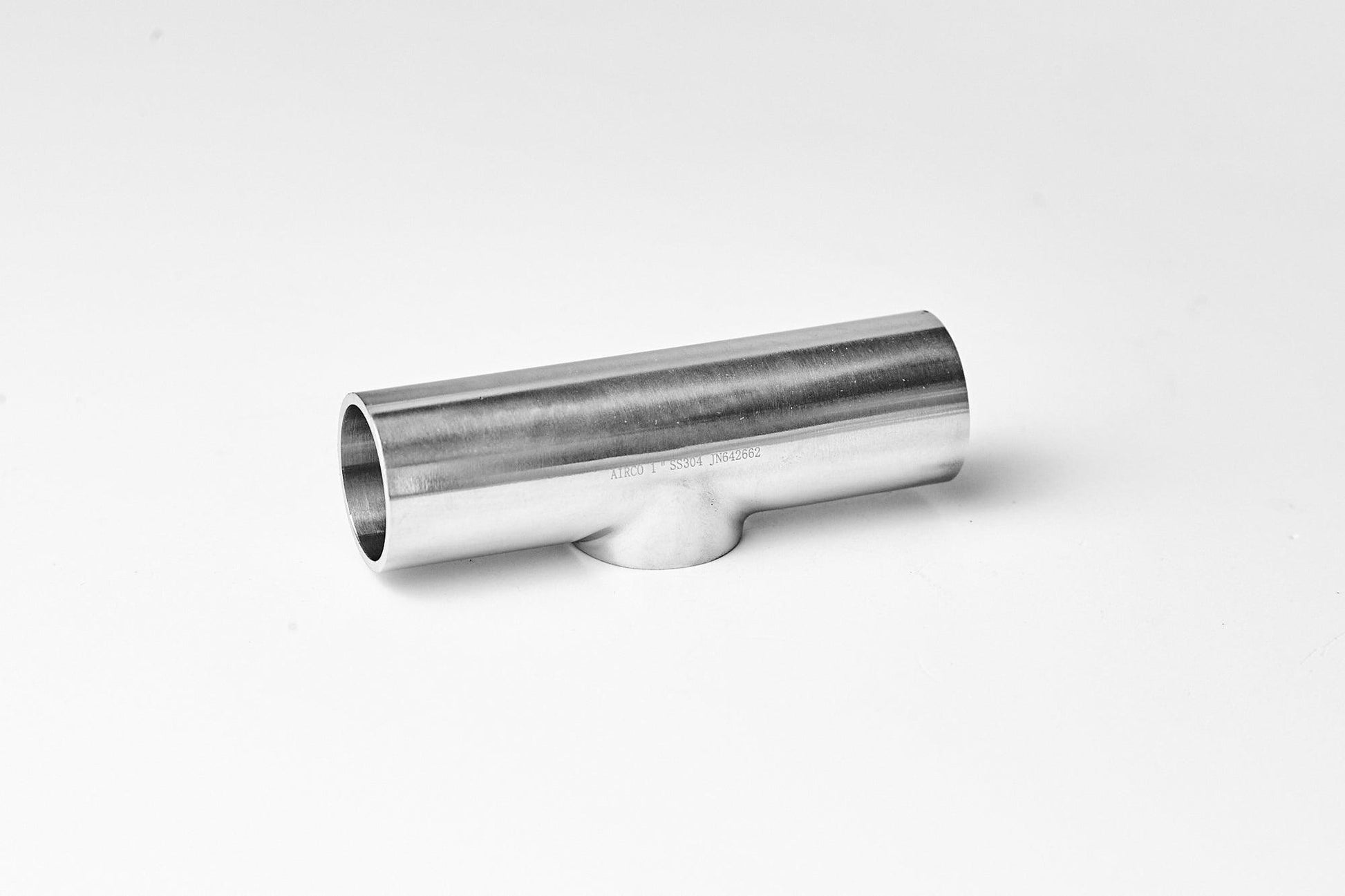

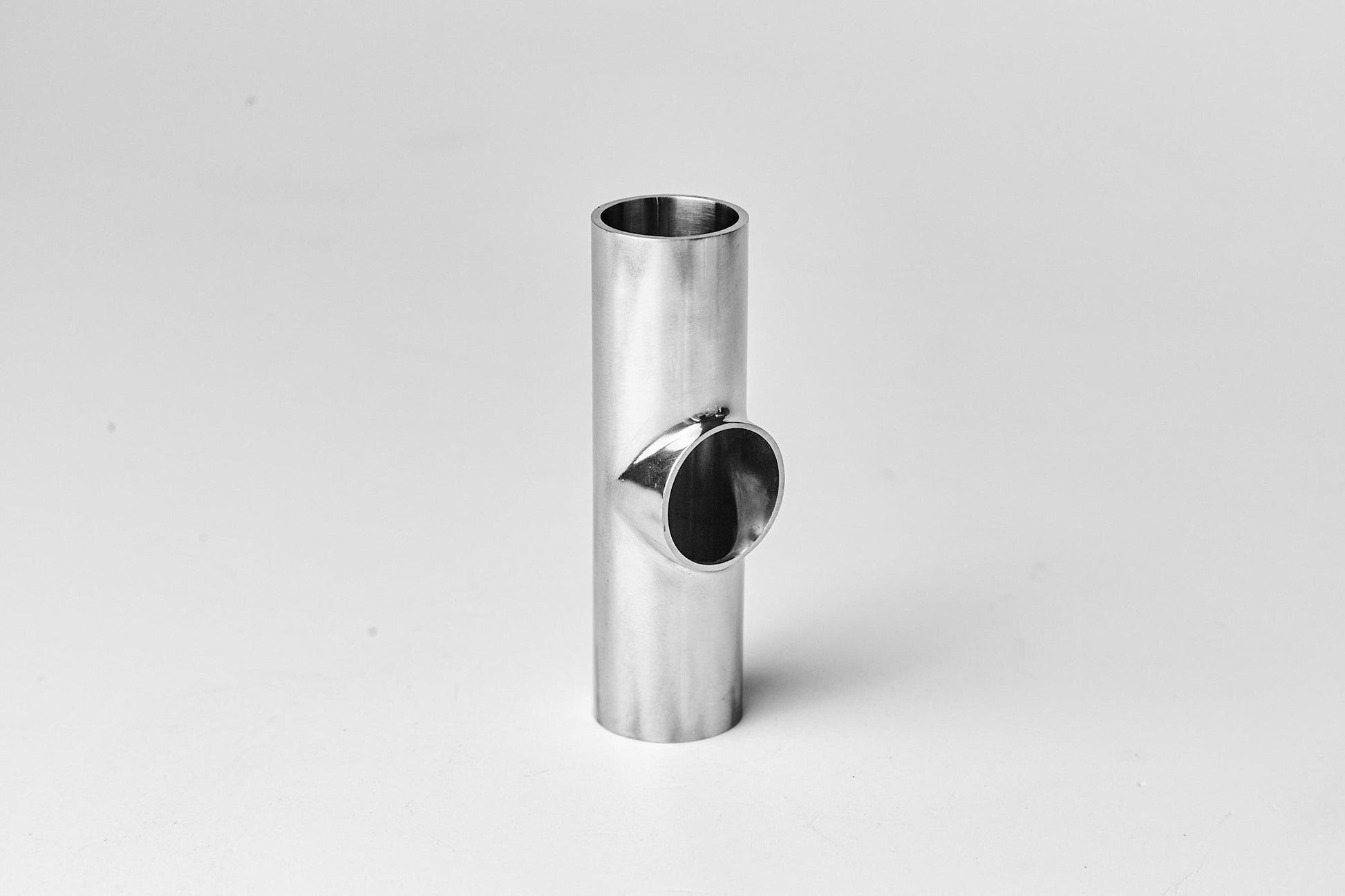

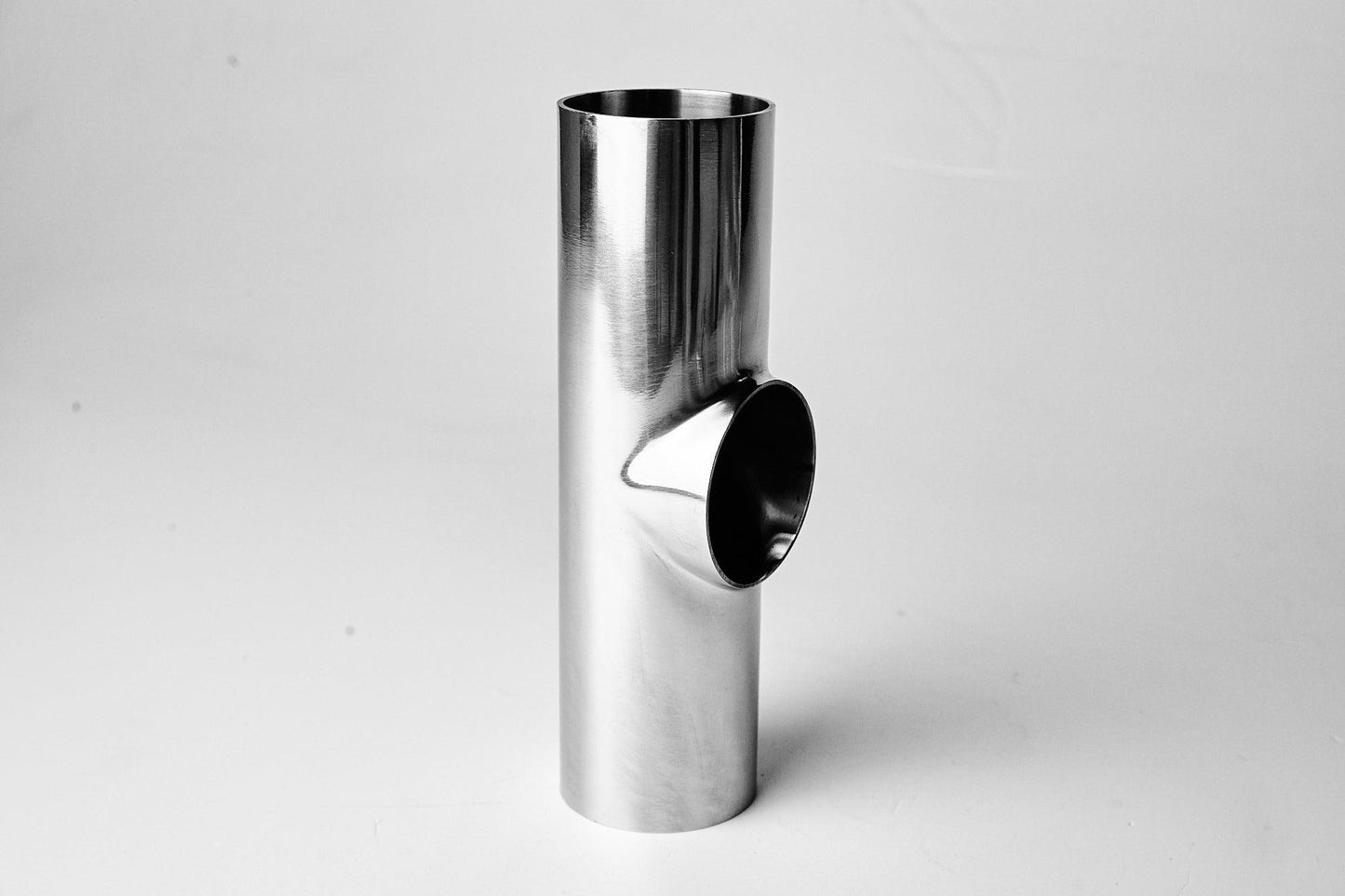

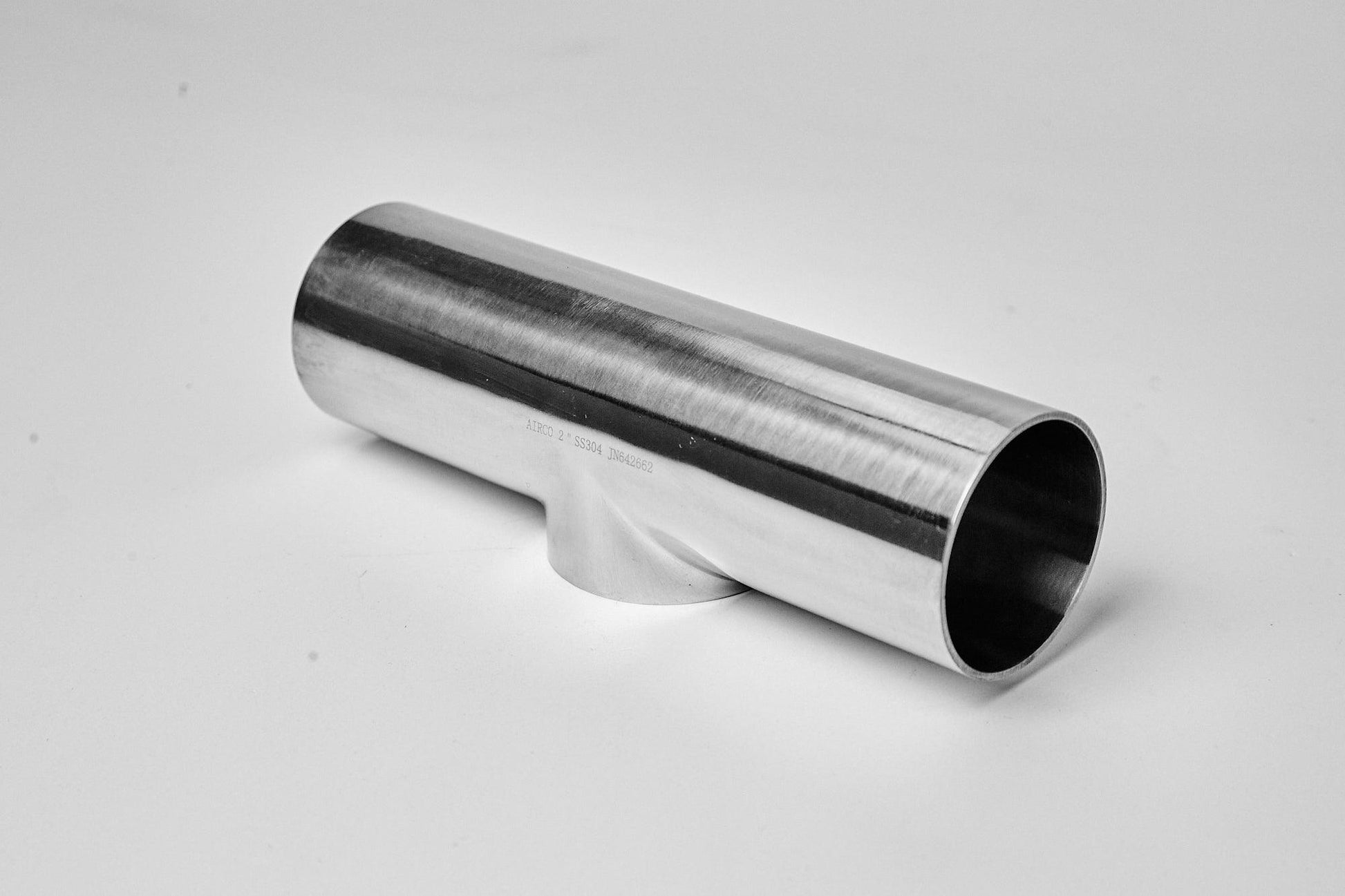

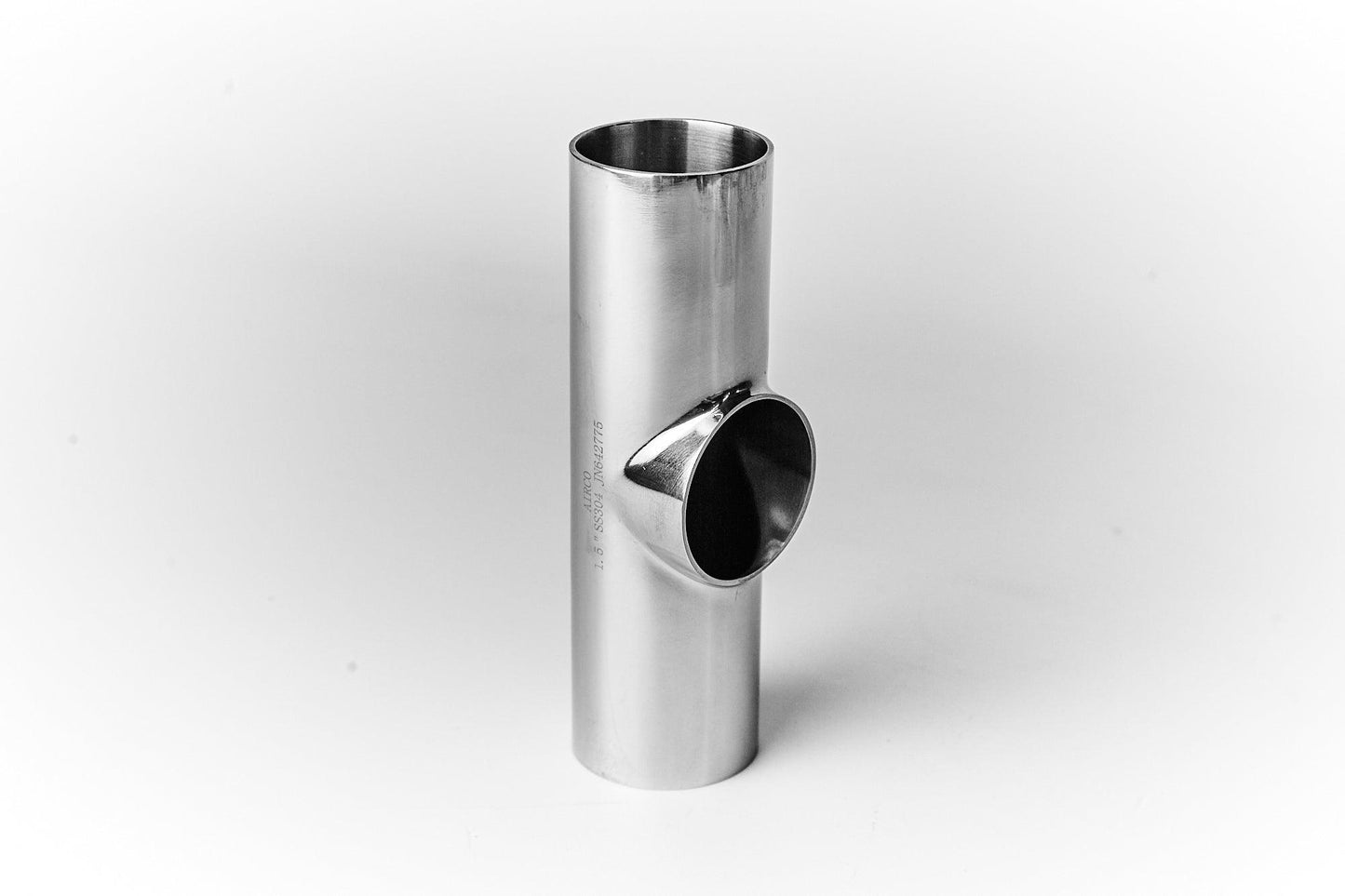

Short Weld Pulled Tee Piece - 304SS

Regular price £3.75 GBP
Regular price Sale price £3.75 GBP
Sale Sold out

High-quality Short Weld Pulled Tee Piece crafted from 304 Stainless Steel, designed for hygienic applications in food, dairy, brewing, medical, pharmaceutical, and chemical industries. Featuring a smooth bead-rolled internal finish and corrosion-resistant properties, this tee piece ensures reliability and cleanliness in demanding environments.

Key Features

  • 304 Stainless Steel: Superior corrosion resistance for hygienic and harsh environments.
  • Bead-Rolled Internal Finish: Smooth interior eliminates cracks and crevices for optimal hygiene.
  • Professional Finish: Dull polished exterior and descaled interior for a high-quality appearance.
  • Versatile Design: Short weld pulled tee configuration ideal for sanitary pipe joining.

Specifications

  • Material: 304 Stainless Steel
  • Finish: Bead-rolled internal, dull polished and descaled external
  • Sizes:
    • 1"
    • 1.5"
    • 2"
  • Design: Short weld pulled tee for pipe joining
  • Installation: Welding (compatible with TIG and other stainless steel methods)

Applications

  • Food & Dairy: Meets strict hygienic standards for processing systems.
  • Brewing: Perfect for sanitary brewery installations.
  • Medical & Pharmaceutical: Ideal for clean systems in healthcare and drug production.
  • Chemical Industries: Durable in demanding chemical processing environments.

Technical Drawing

Short Weld Pulled Tee Piece Technical Diagram

Technical Dimensions

Size (OD) L1 (mm) Overall Length (mm) Wall Thickness (mm)
1" 43.5 87 1.3
1.5" 63.5 127 1.3
2" 88.5 177 1.3

Note: L1 is half the length from the center of the tee to the end of each branch. Overall Length is L1 doubled. Wall Thickness is the tee’s thickness.
