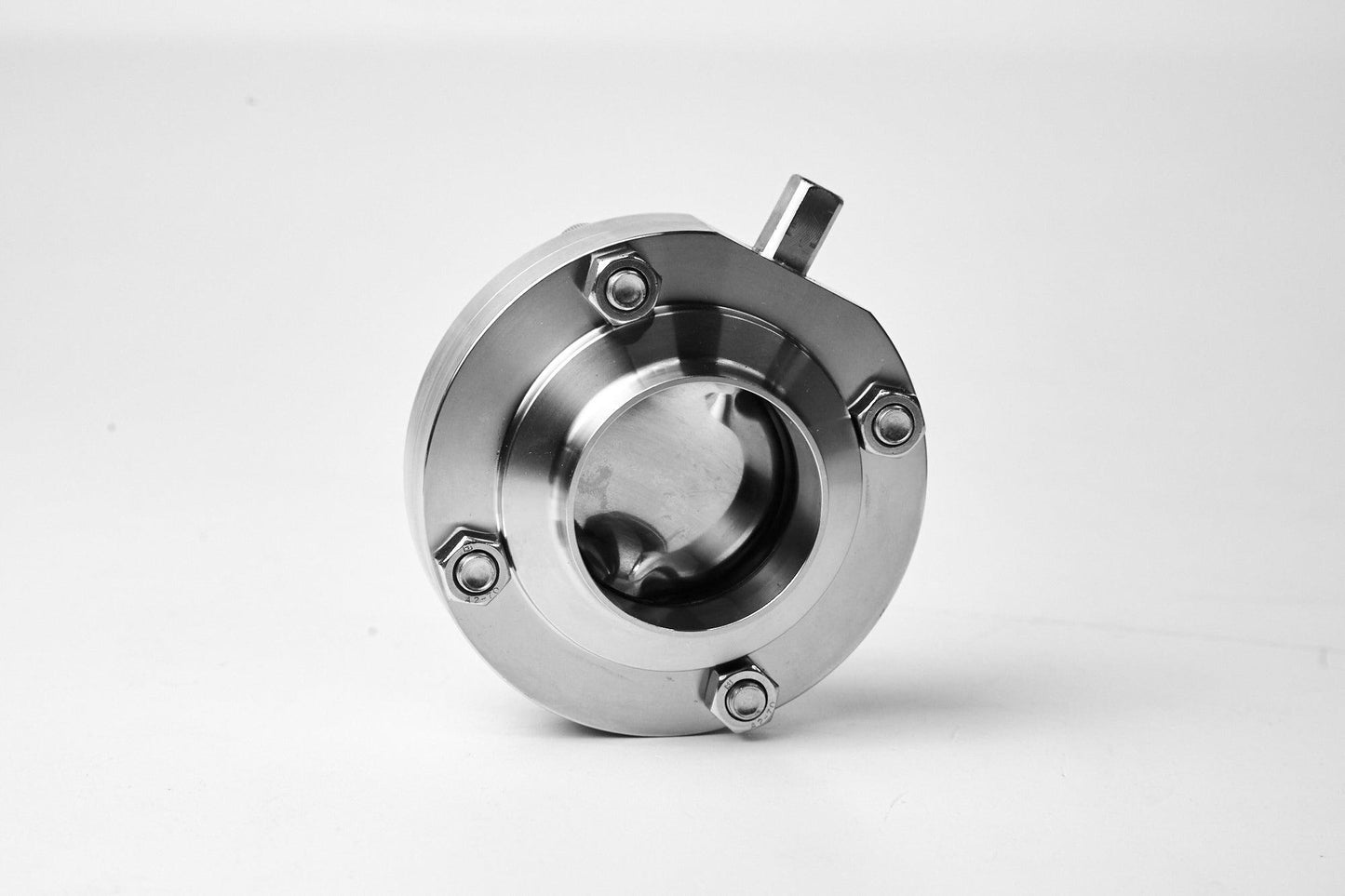

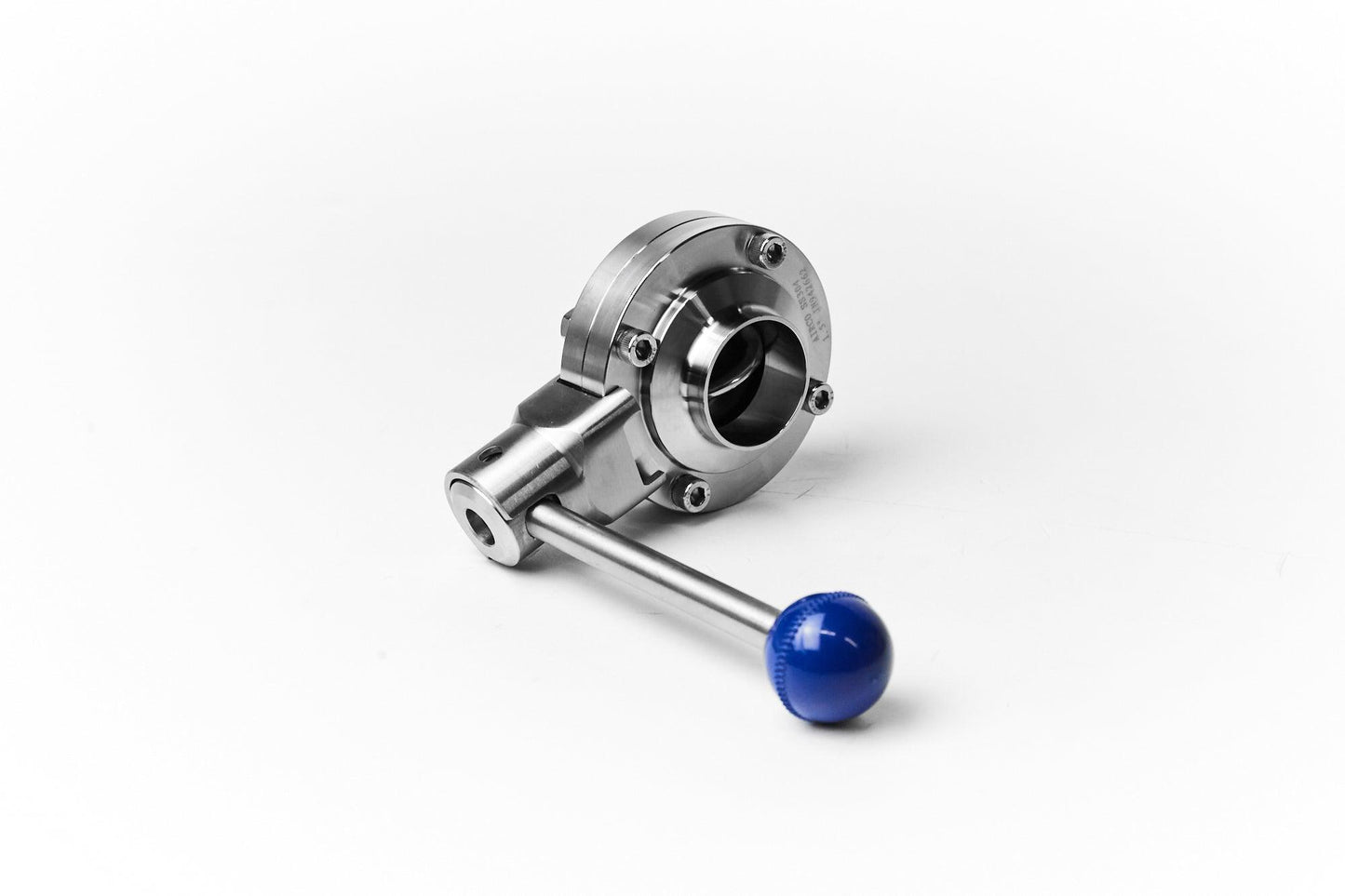

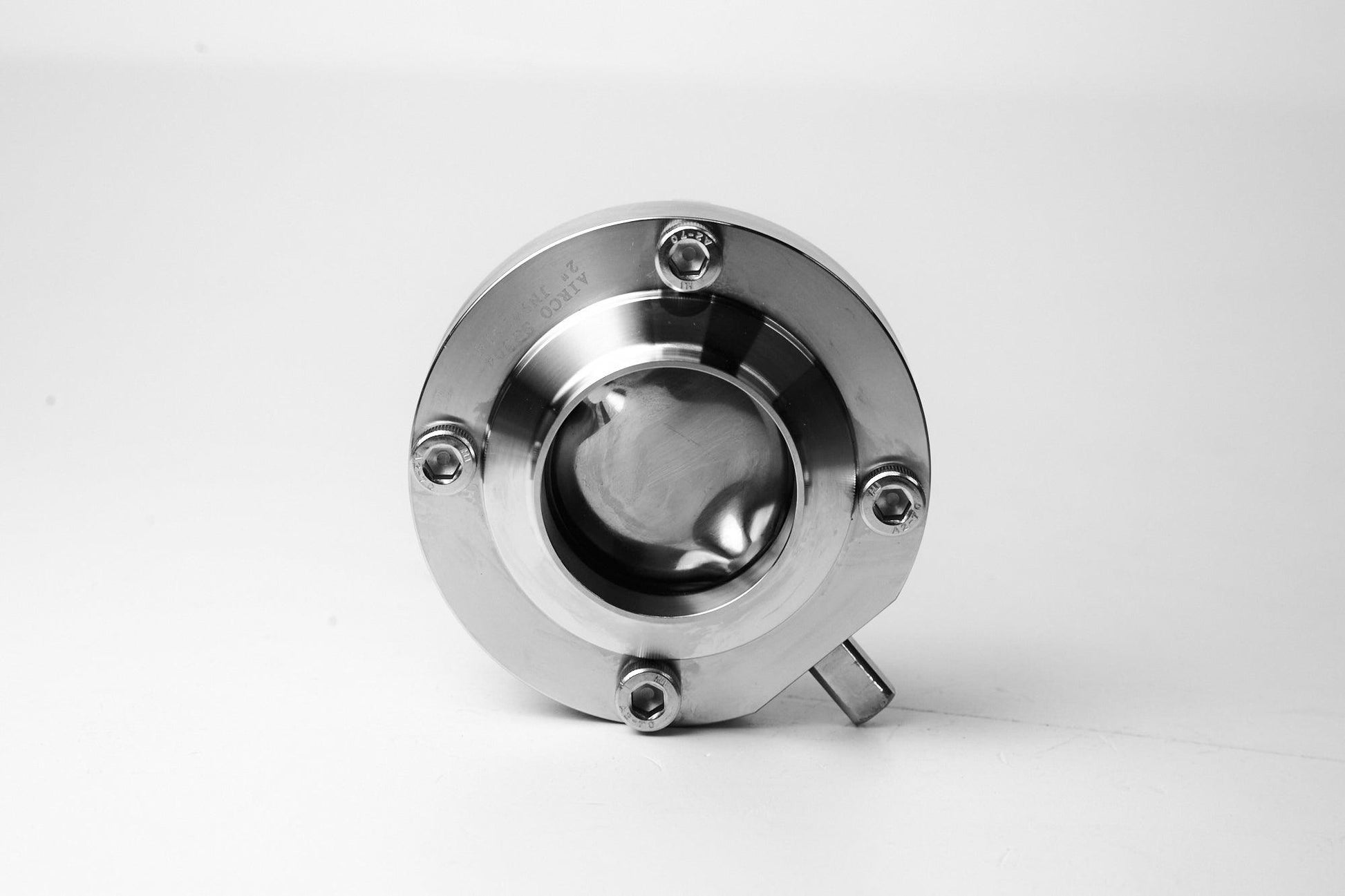

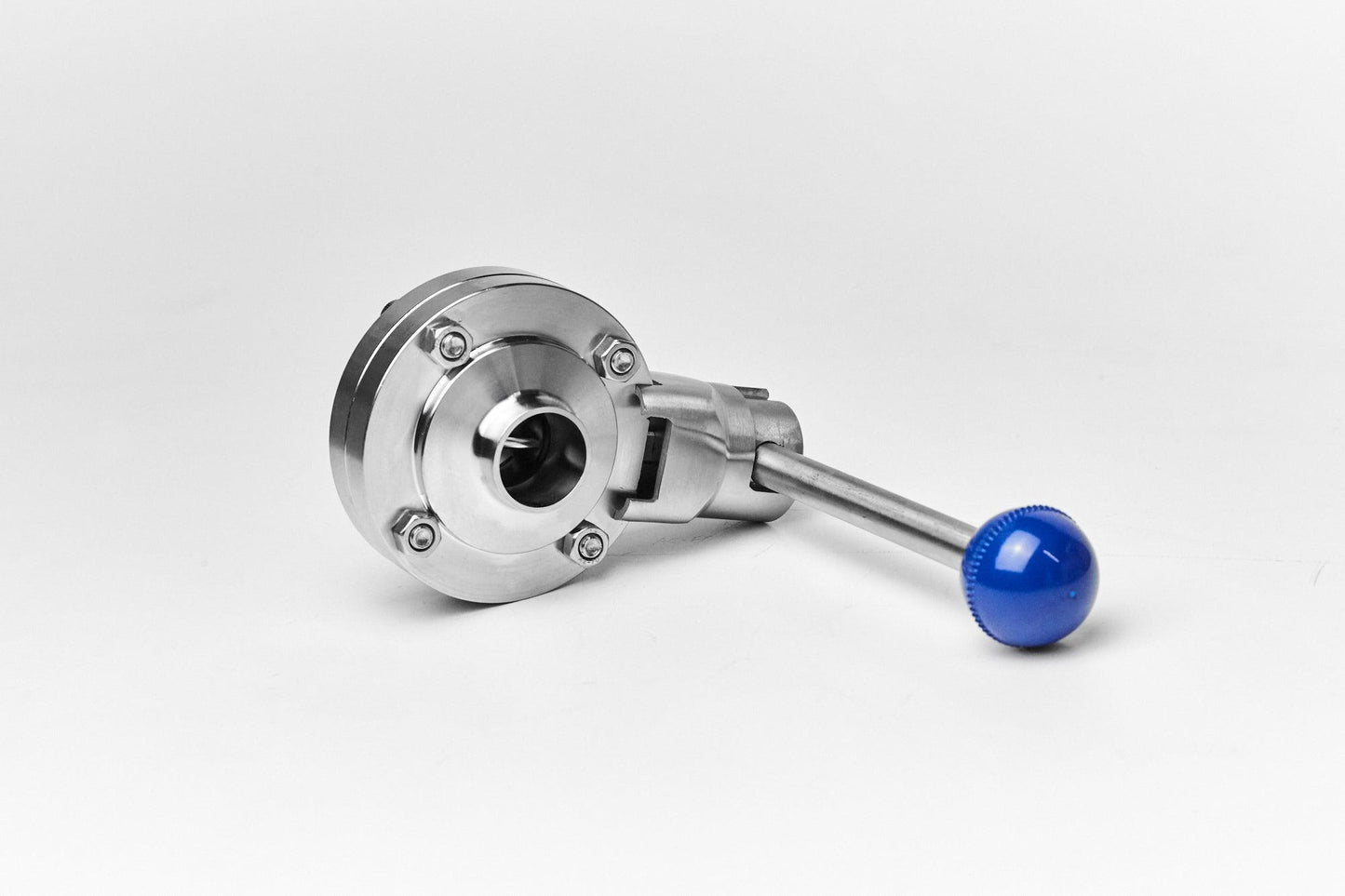

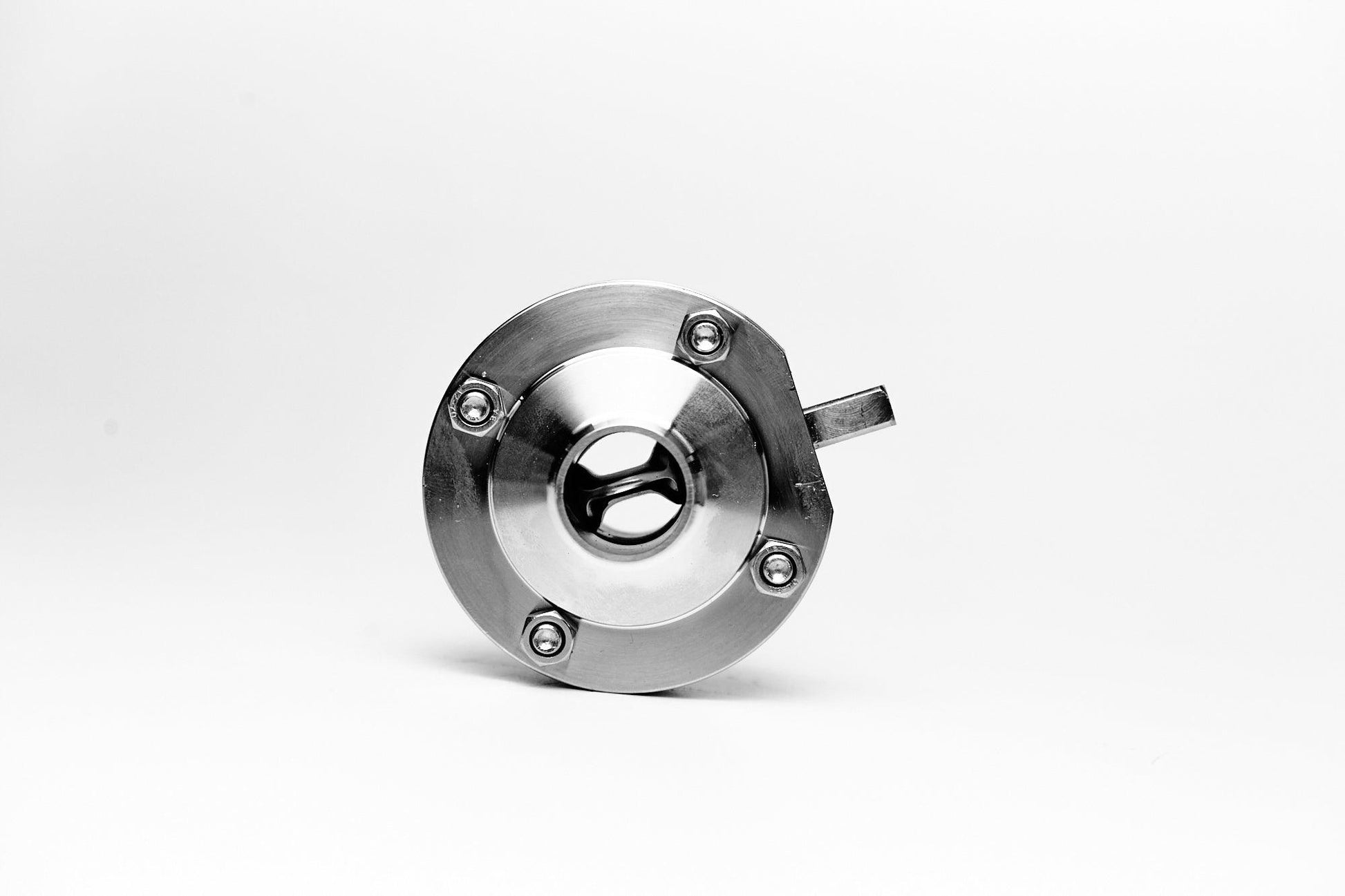

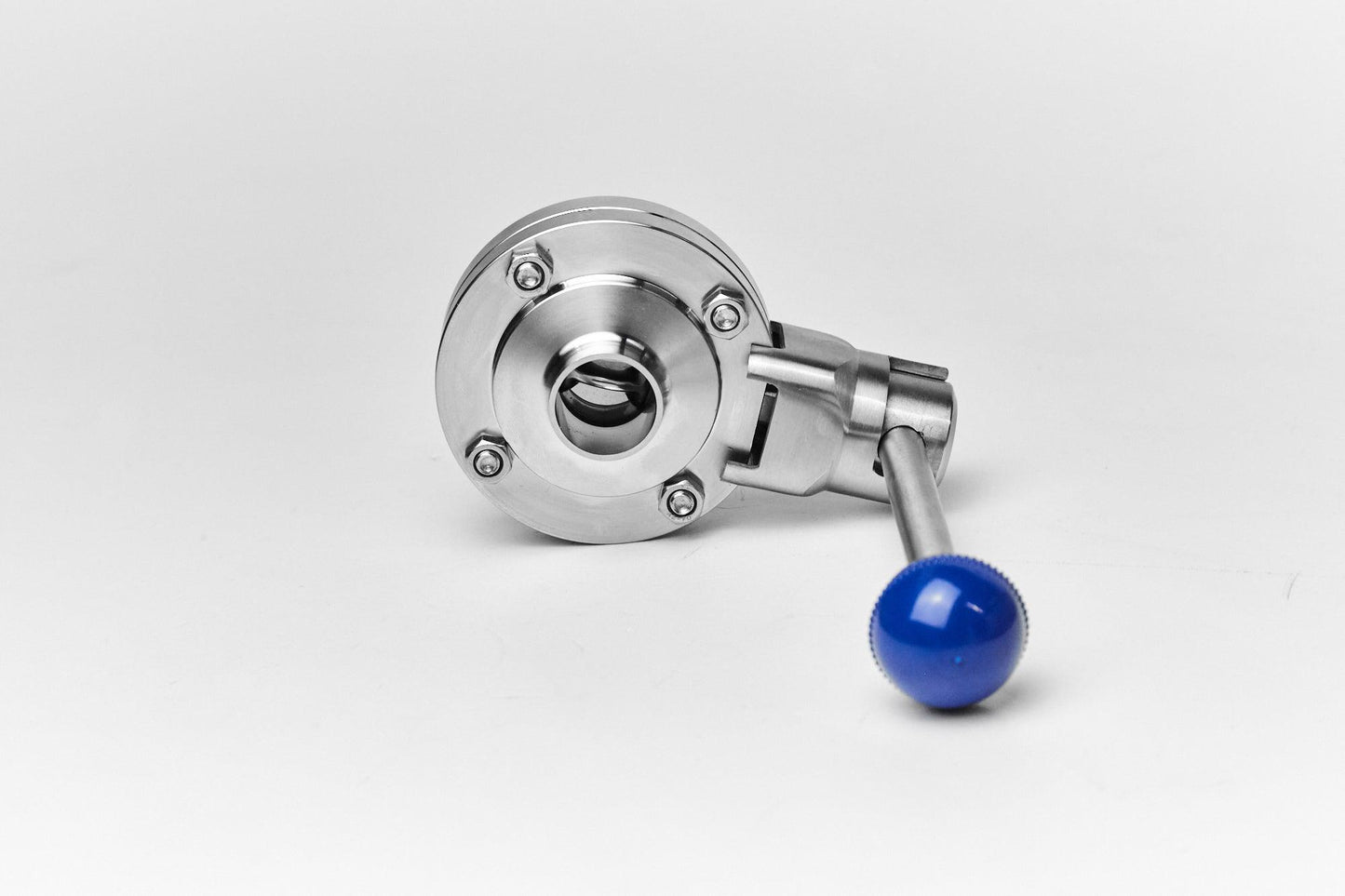

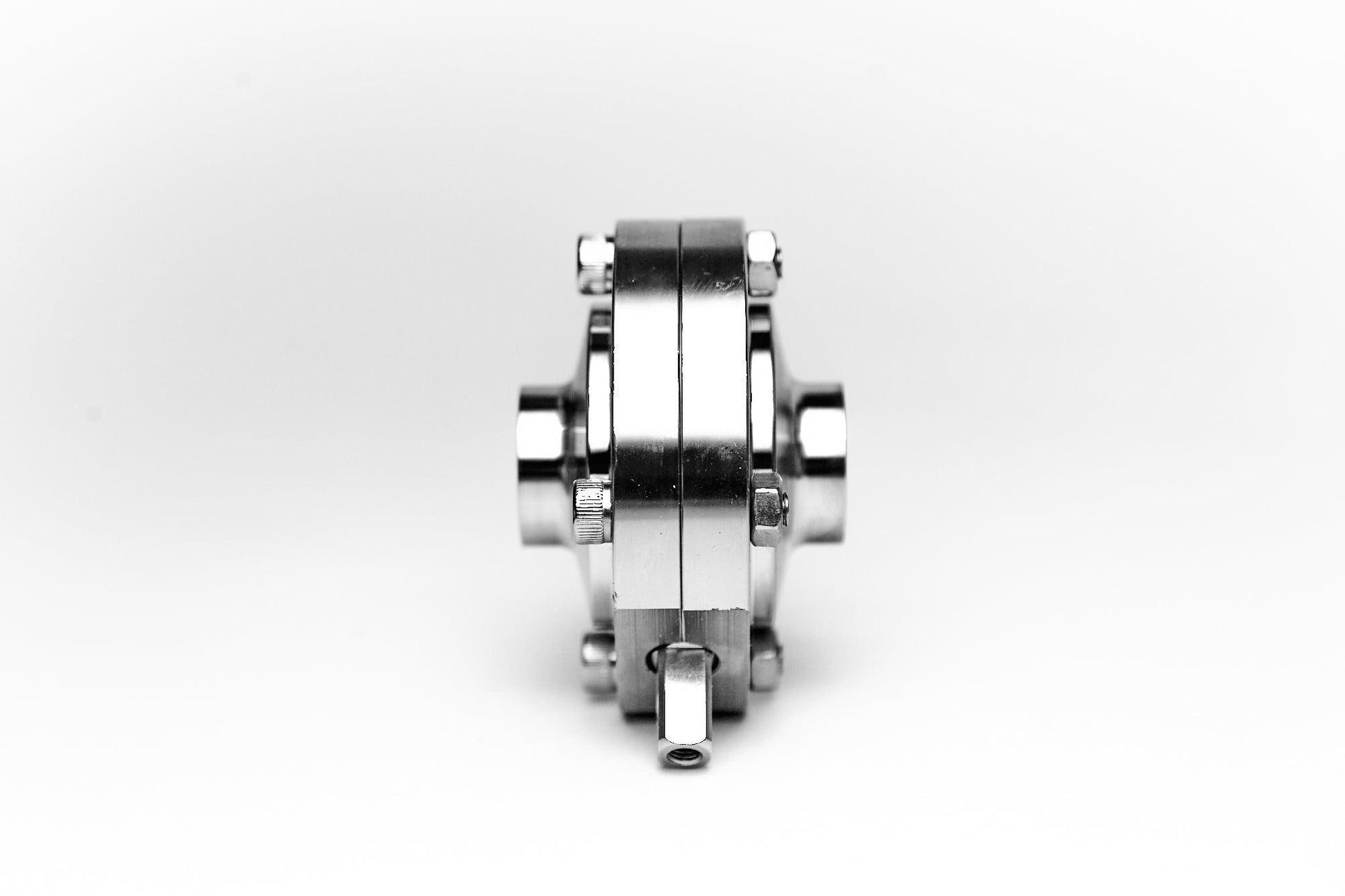

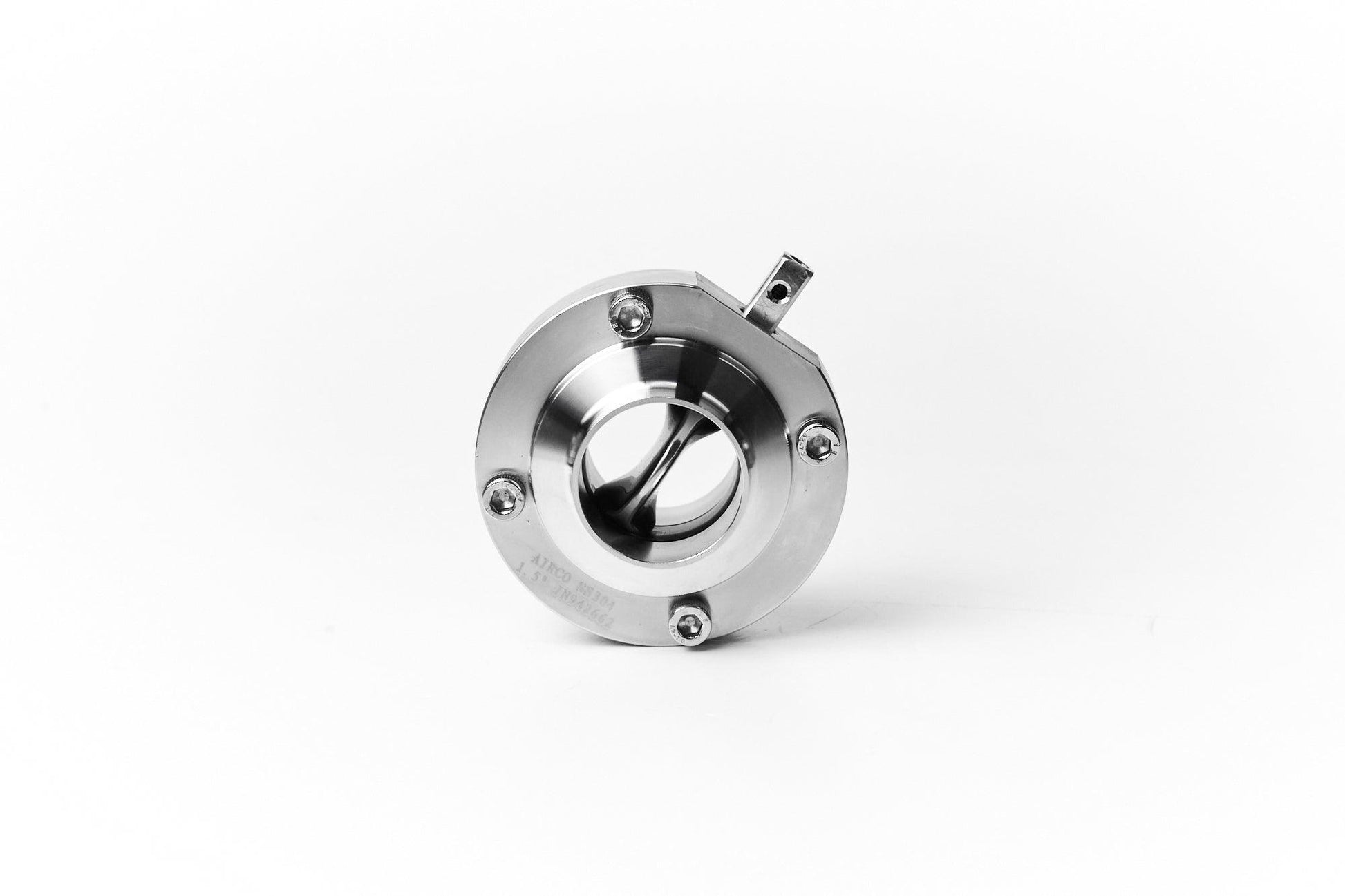

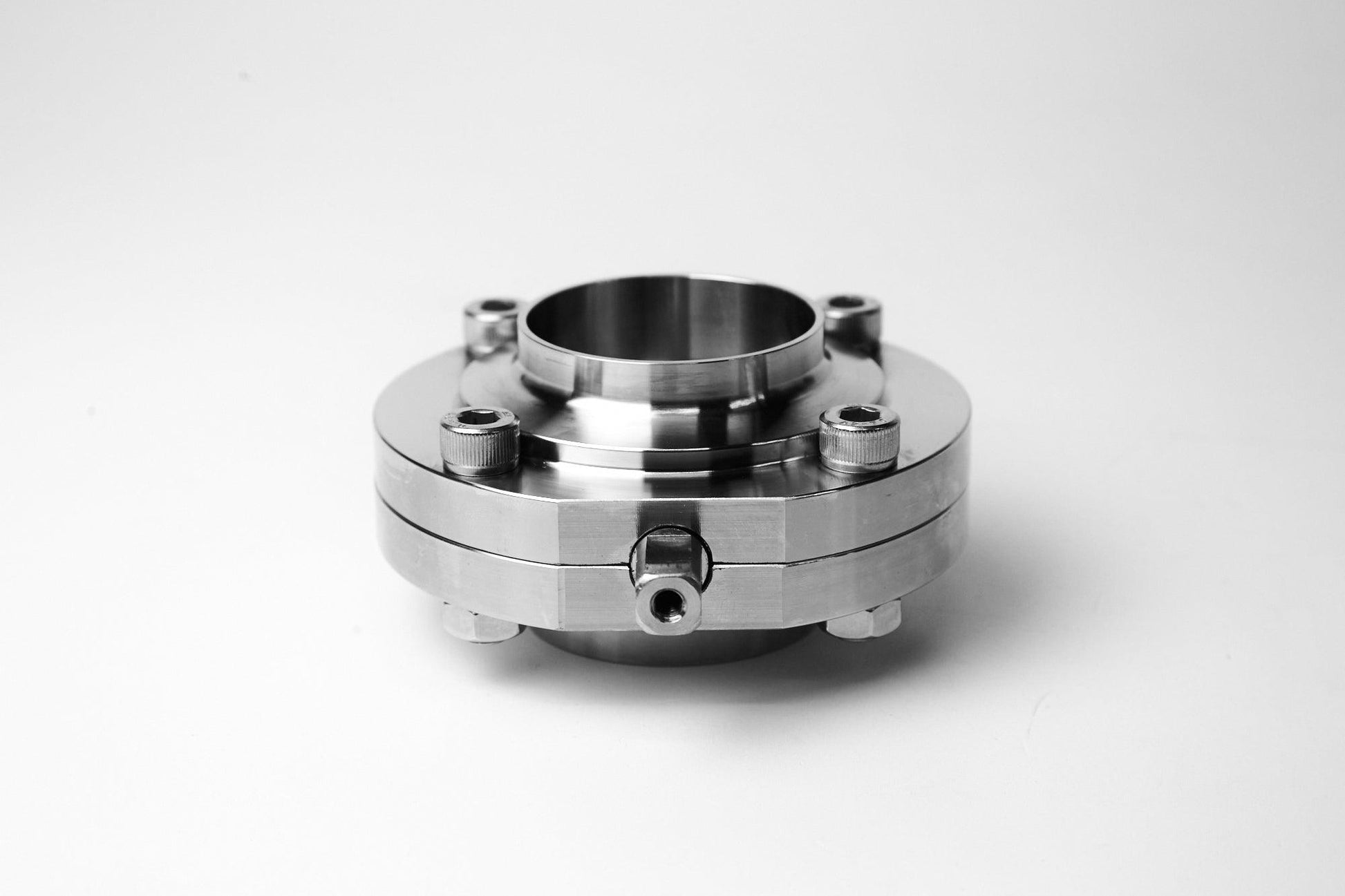

3A Weld Ends Butterfly Valve Body SS304
3A Weld Ends Butterfly Valve Body SS304
Regular price
£22.99 GBP
Regular price
Sale price
£22.99 GBP
Unit price
per
Couldn't load pickup availability
- Sanitary plain ended butterfly valve body
- Stainless steel 304
- Weld / plain end connections
- Sizes: 1" - 2"
- 316 available upon request
| Part Code | Size | O | D | KXK | A | H |
| AC-BV1007-B-25 | 1" | 78 | 25.4 | 8.0x8.0 | 50 | 39 |
| AC-BV1007-B-38 | 1.1/2" | 80 | 38.1 | 8.0X8.0 | 50 | 40 |
| AC-BV1007-B-51 | 2" | 100 | 50.8 | 8.0X8.0 | 50 | 50 |
| Size DN | Size Inch | A | B | C | H |
| DN25-DN50 | 1" - 2.1/2" | 8*8 | 9.8 | 22 | 140 |
