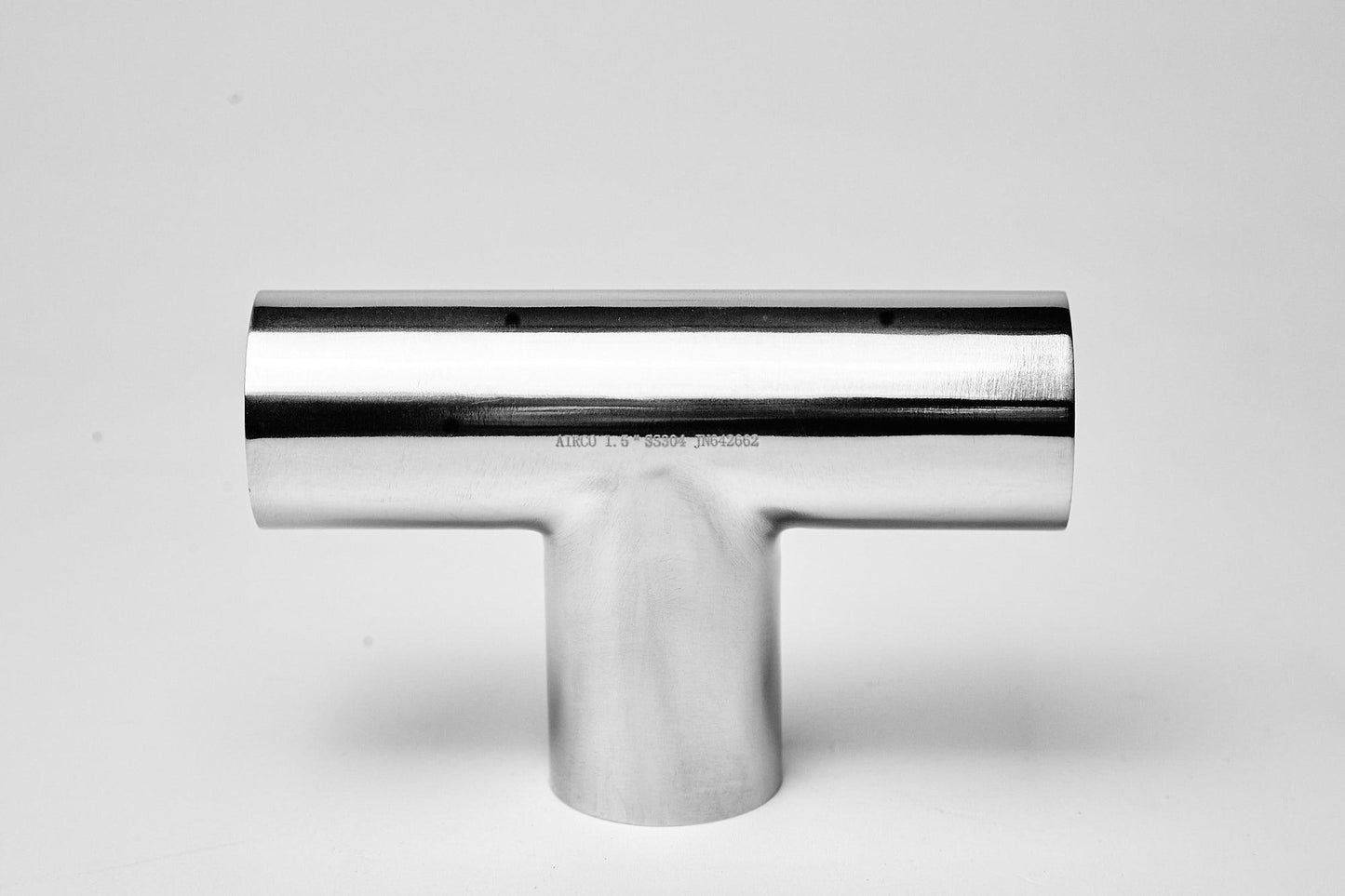

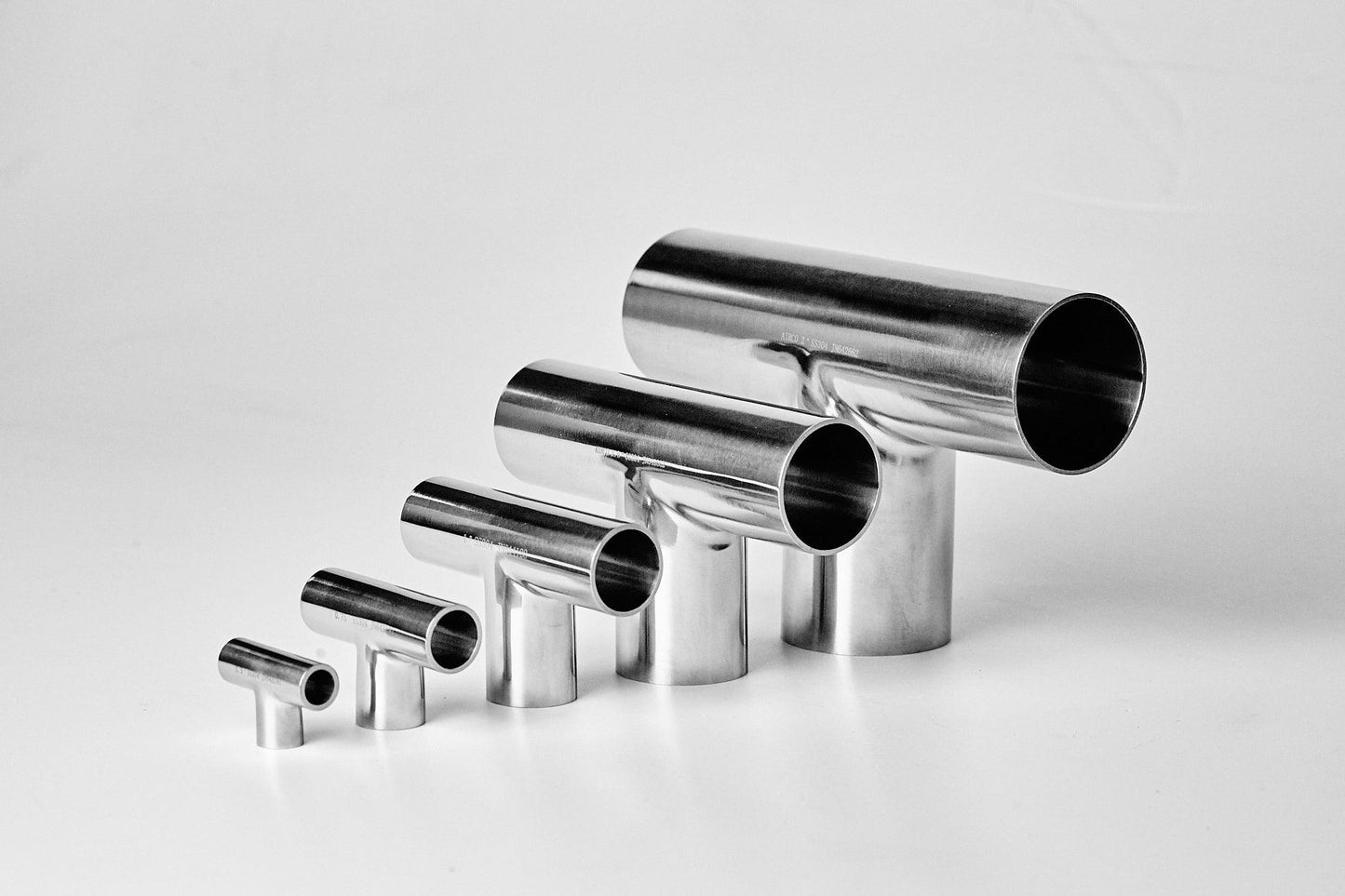

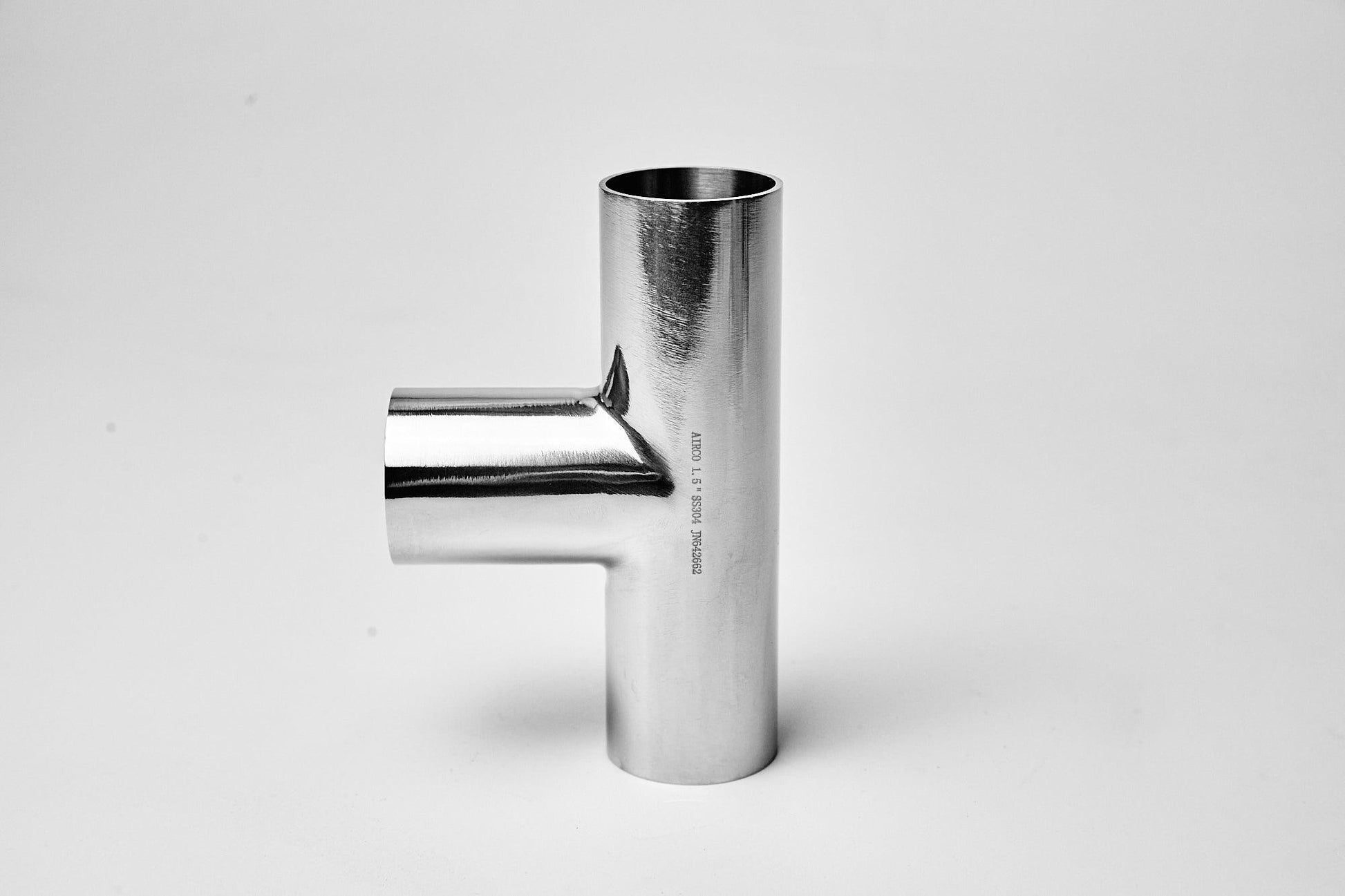

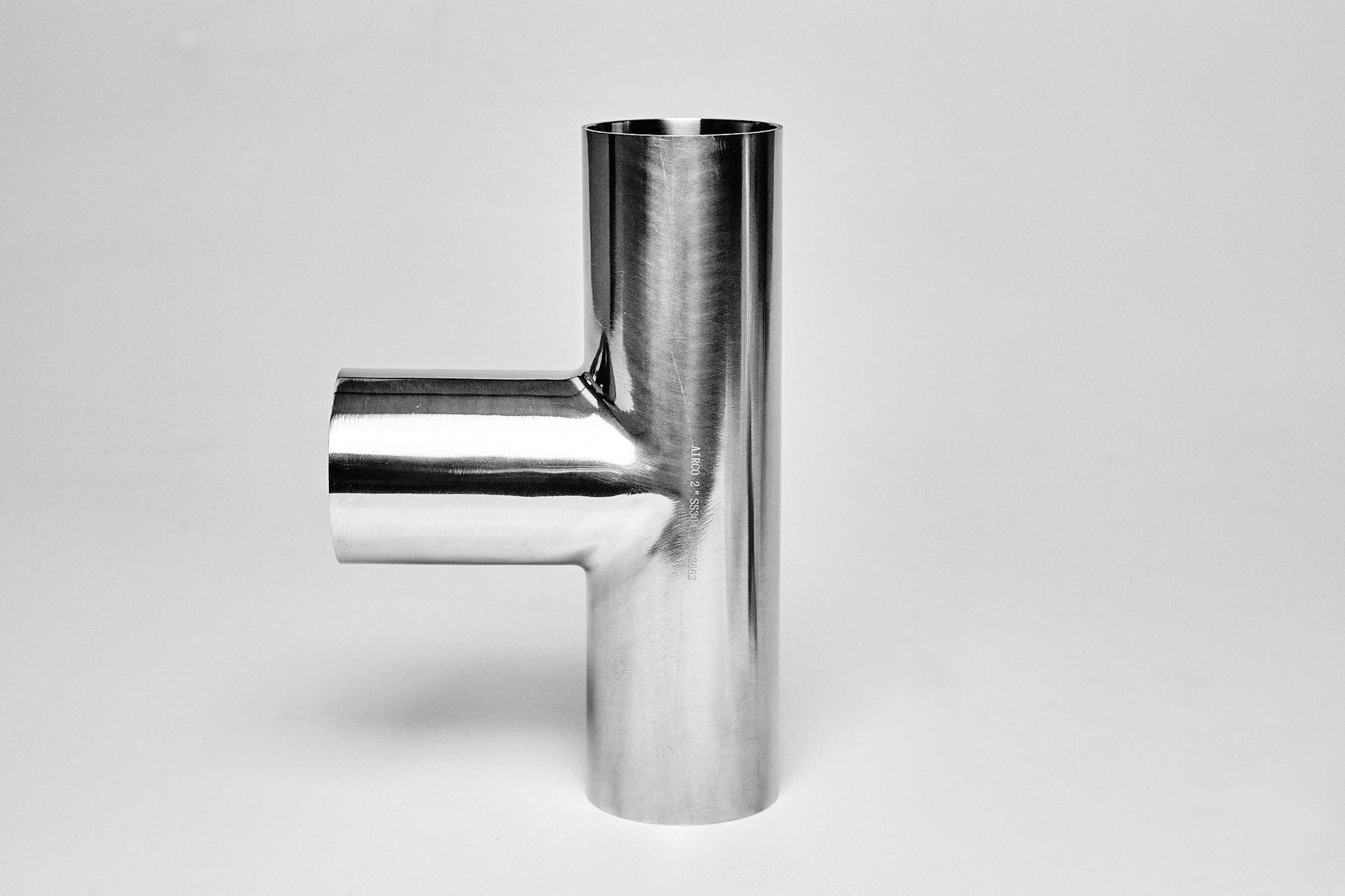

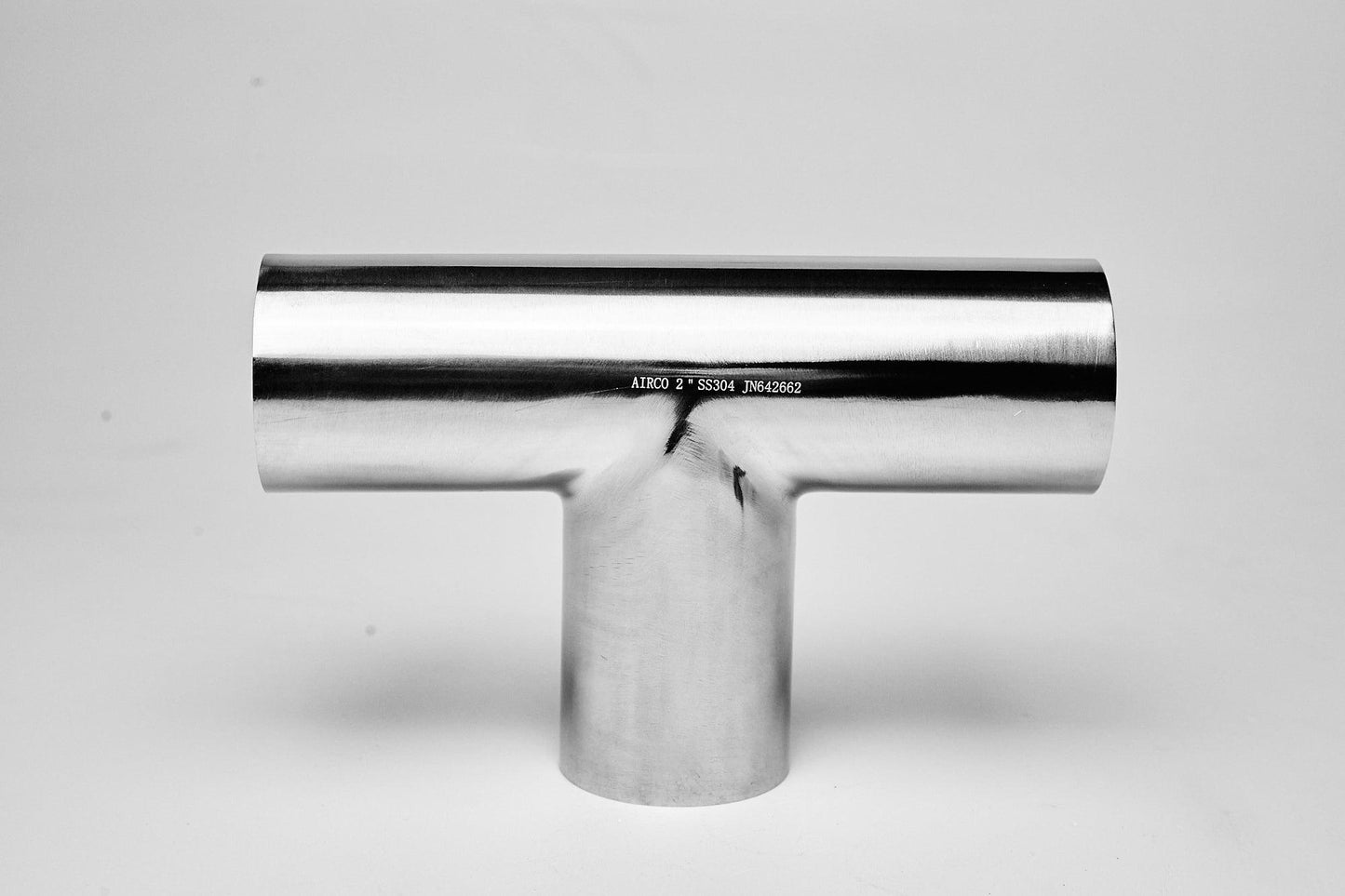

Short Weld Equal Tee Piece - 304SS
Short Weld Equal Tee Piece - 304SS
Regular price
£4.60 GBP
Regular price
Sale price
£4.60 GBP
Unit price
per
Couldn't load pickup availability
Overview
High-quality 304 Stainless Steel Weld Tee Piece for hygienic and sanitary applications in food, beverage, pharmaceutical, and similar industries. Robust and corrosion-resistant, ideal for marine, agricultural, and secondary uses where cleanliness is critical.
Key Features
- 304 Stainless Steel: Corrosion-resistant, durable, and strong for indoor, outdoor, marine, and challenging environments.
- Precision Manufacturing: Consistent dimensions and smooth finishes for reliable project performance.
- Weldability: Easy to weld with stainless steel techniques for secure installations.
- Polished Appearance: Dull polished exterior for a professional, attractive finish on visible installations.
Specifications
- Material: 304 Stainless Steel
- Finish: Dull polished exterior
- Standards:
- 1/2" and 3/4": AS 5005 (Australian Standard)
- 1", 1.5", 2": BS 6006 (British Standard)
- Design: Three-way equal tee for joining pipes
- Installation: Welding (TIG and other stainless steel methods)
Applications
- Industrial Processing: Meets hygienic standards for food, dairy, brewing, and pharmaceuticals.
- Sanitary Systems: Perfect for clean water, medical, and lab systems.
- Marine: Suitable for boat water systems and fixtures due to corrosion resistance.
- Agriculture: Withstands harsh outdoor conditions in farming and irrigation.

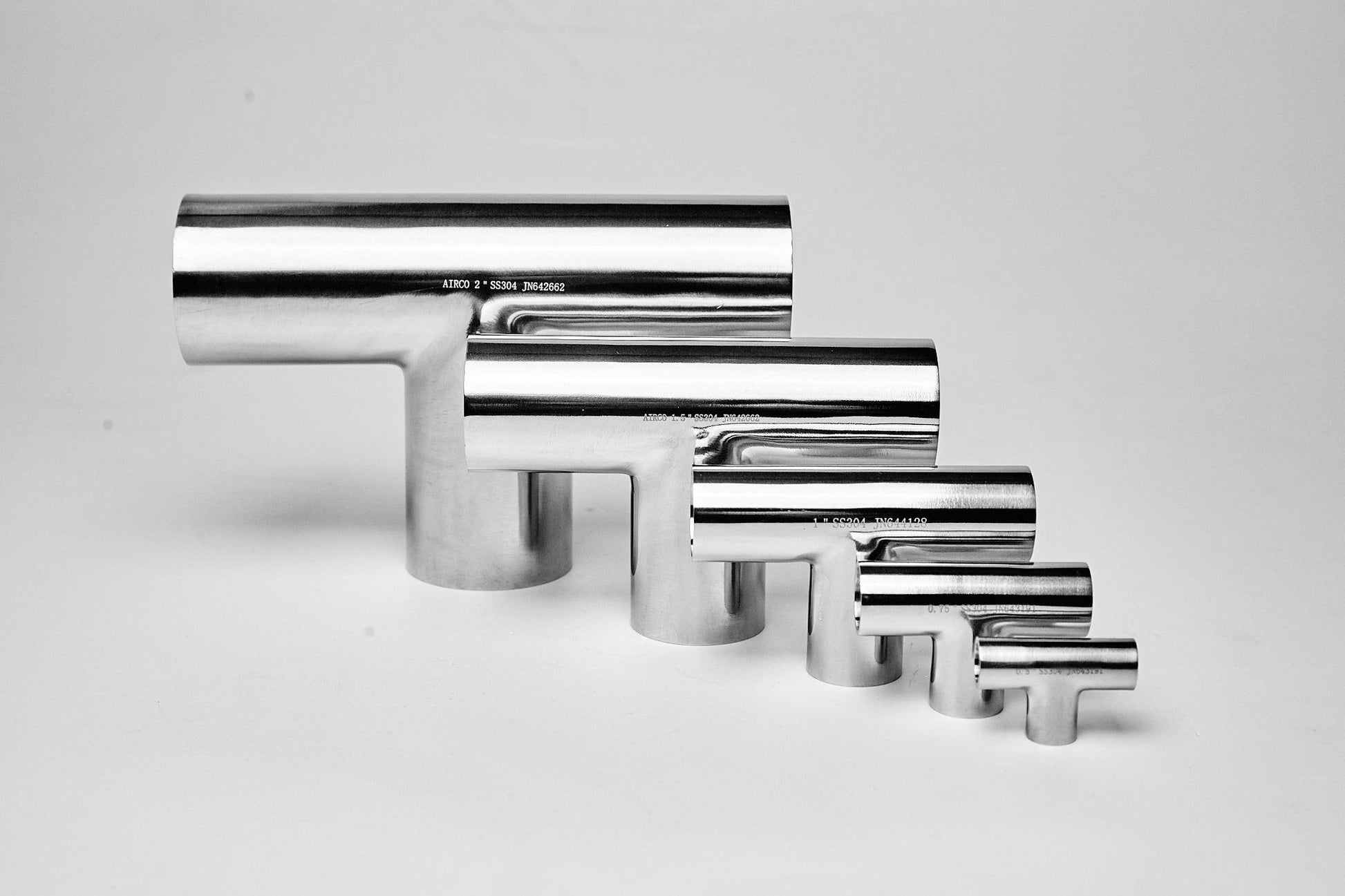

Available Sizes

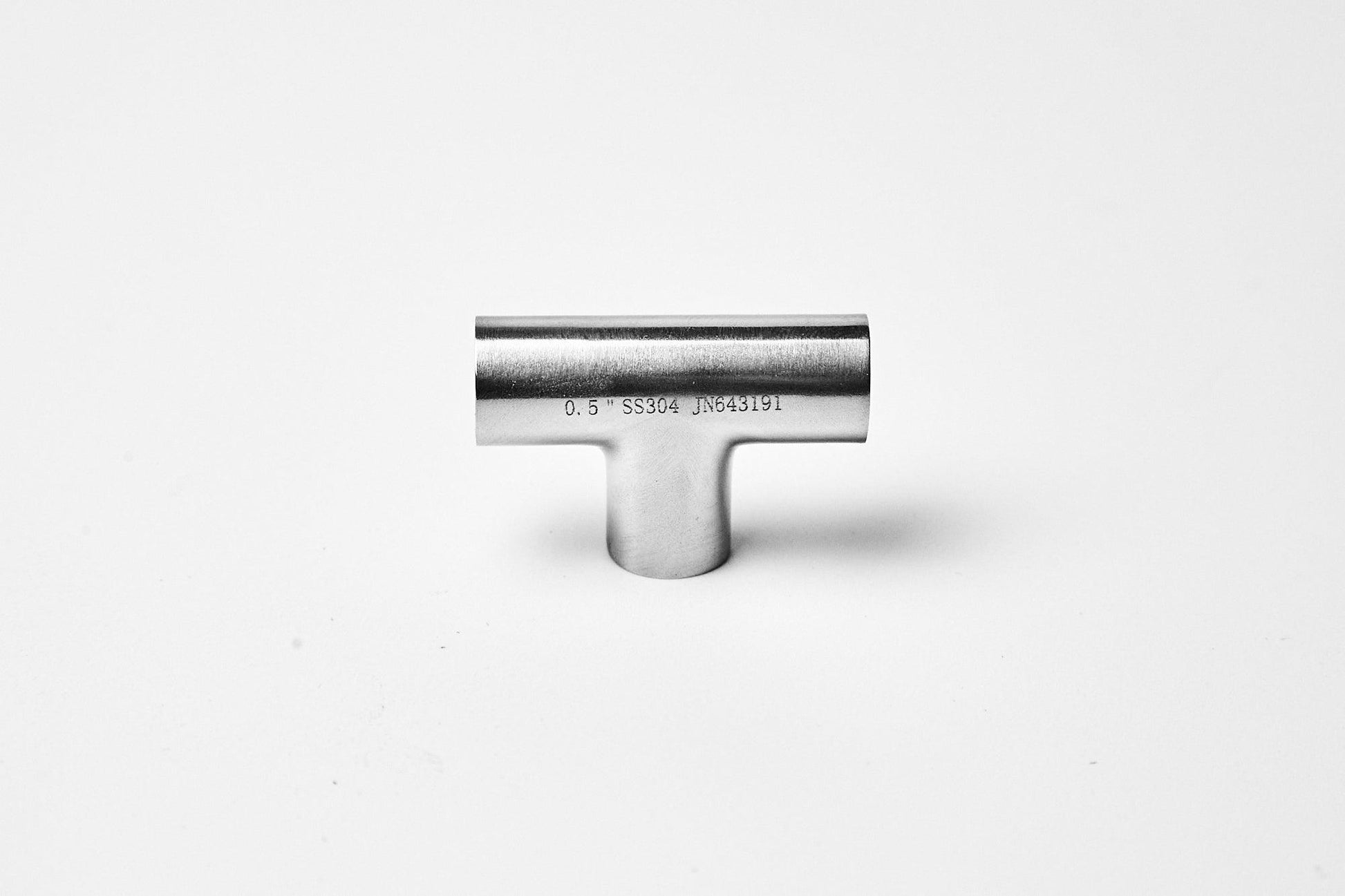

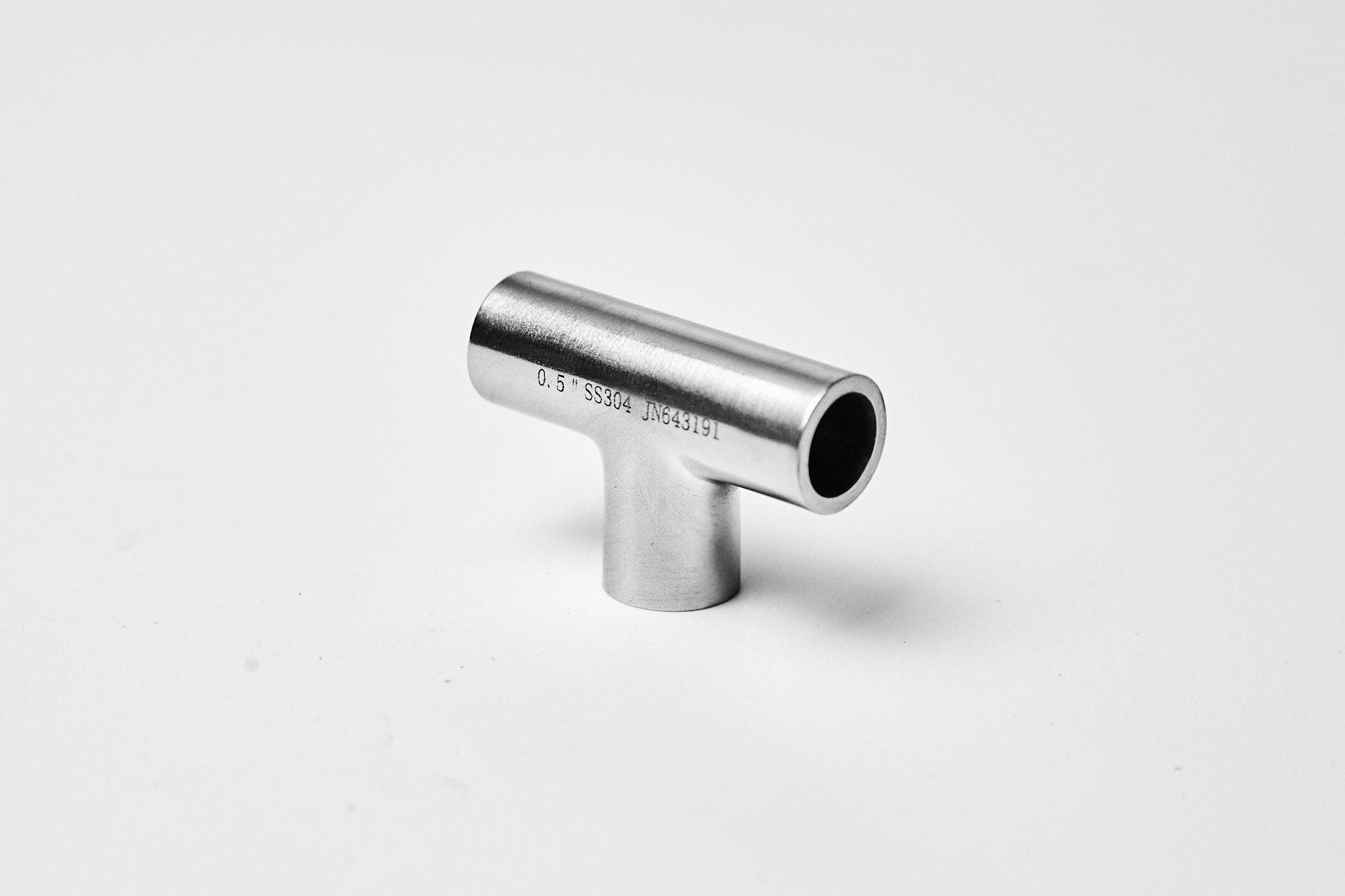

- 1/2" - L1 = 19mm (AS 5005 Australian Standard)

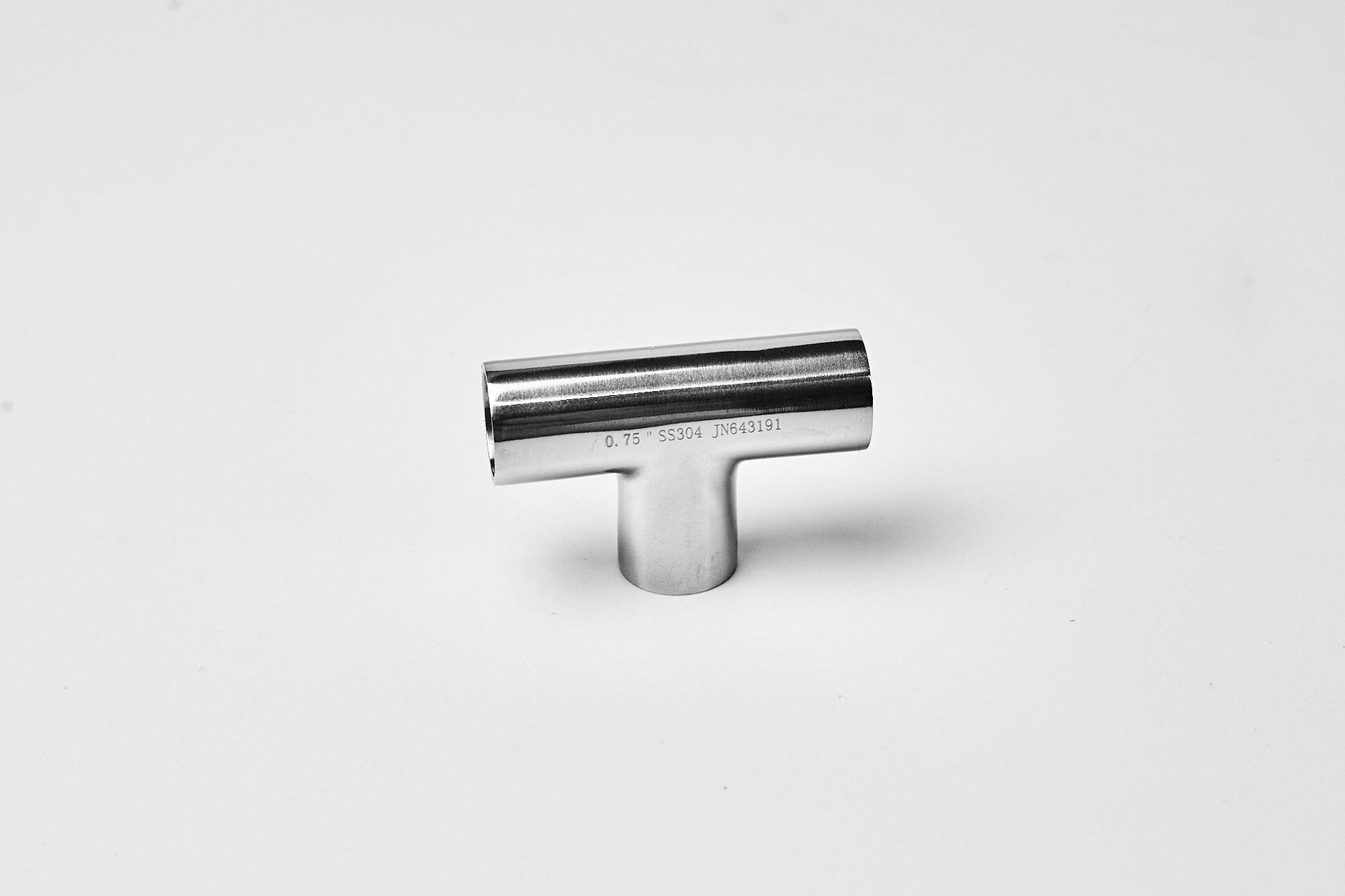

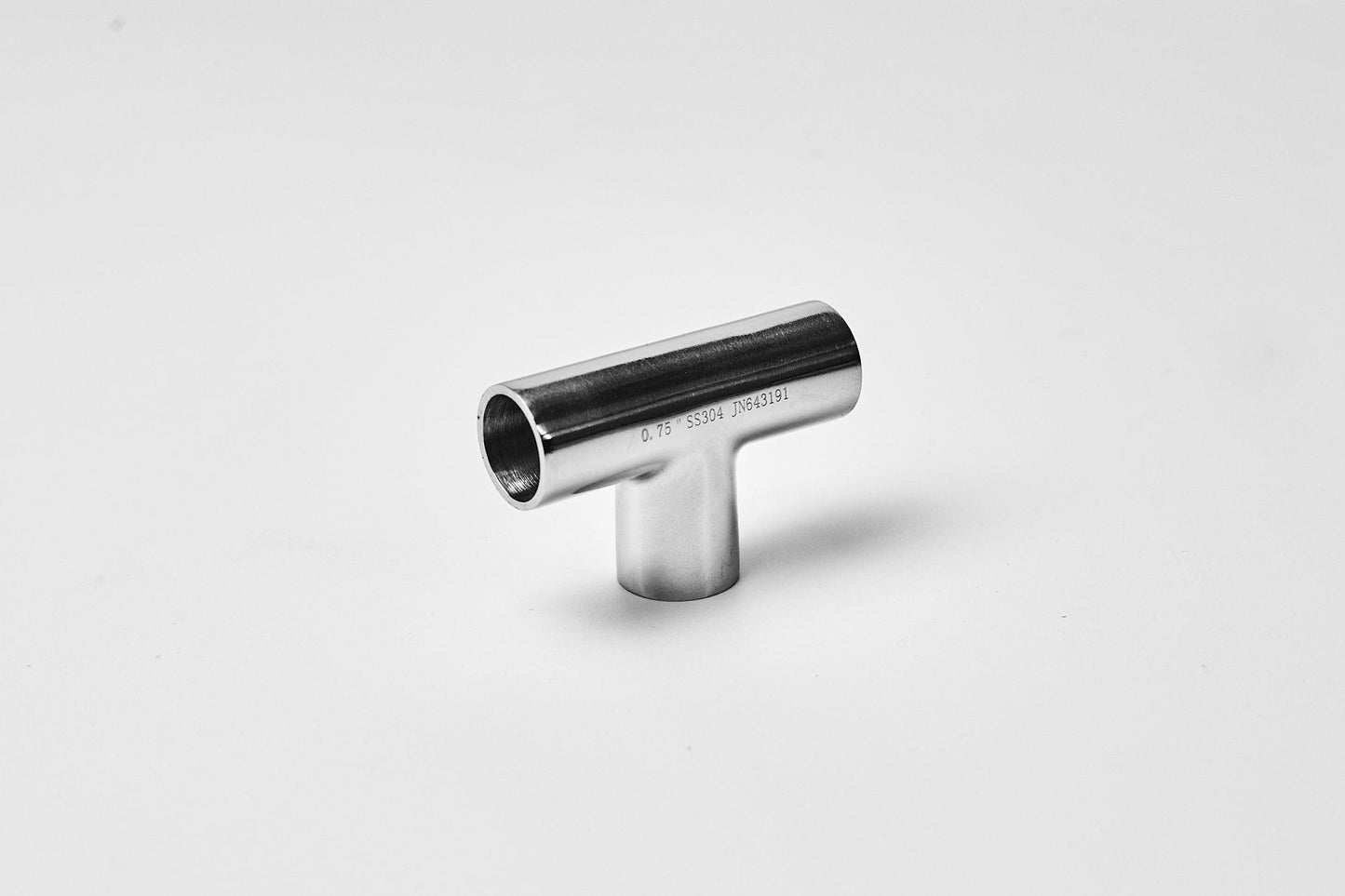

- 3/4" - L1 = 28.5mm (AS 5005 Australian Standard)

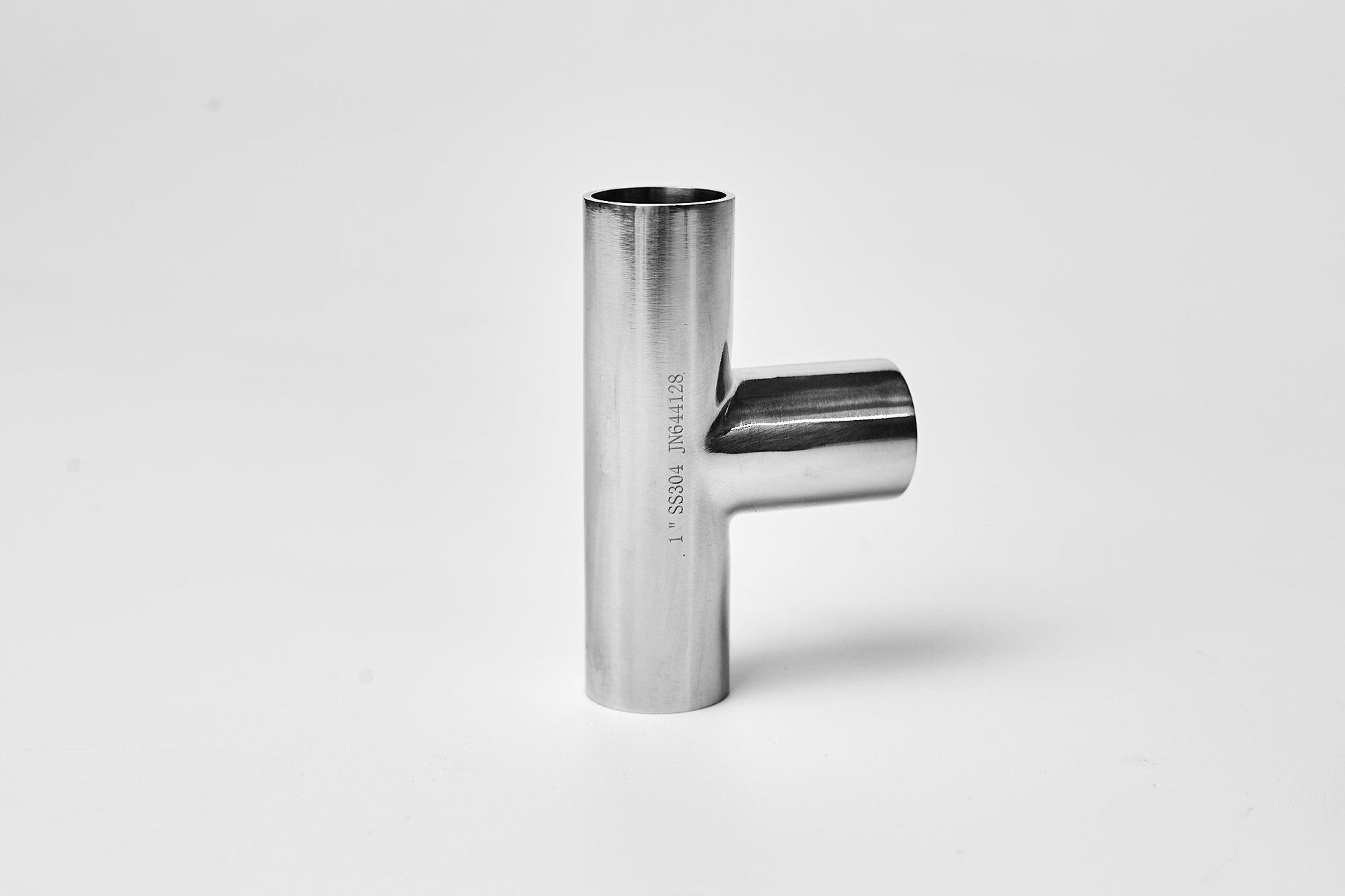

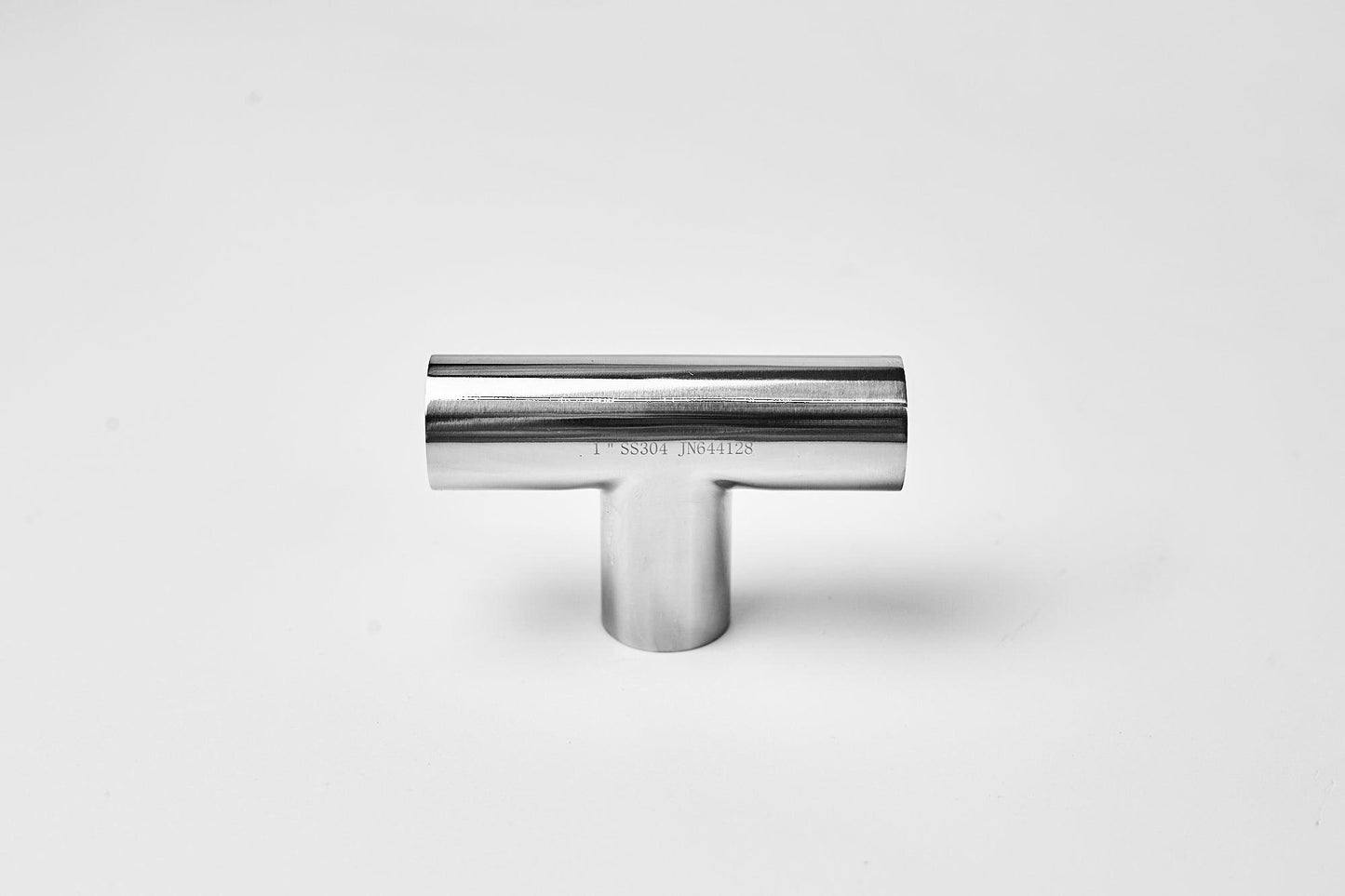

- 1" - L1 = 43.5mm (BS 6006 British Standard)
- 1.5" - L1 = 63.5mm (BS 6006 British Standard)
- 2" - L1 = 88.5mm (BS 6006 British Standard)
Technical Drawing
Technical Dimensions
| Size (OD) | L1 (mm) | Overall Length (mm) | Wall Thickness (mm) | Standard |
|---|---|---|---|---|
| 1/2" | 19 | 38 | 1.3 | AS 5005 (Australian) |
| 3/4" | 28.5 | 57 | 1.3 | AS 5005 (Australian) |
| 1" | 43.5 | 87 | 1.3 | BS 6006 (British) |
| 1.5" | 63.5 | 127 | 1.3 | BS 6006 (British) |
| 2" | 88.5 | 177 | 1.3 | BS 6006 (British) |
Note: L1 is half the length from the center of the tee to the end of each branch. Overall Length is L1 doubled. Wall Thickness is the tee’s thickness.
