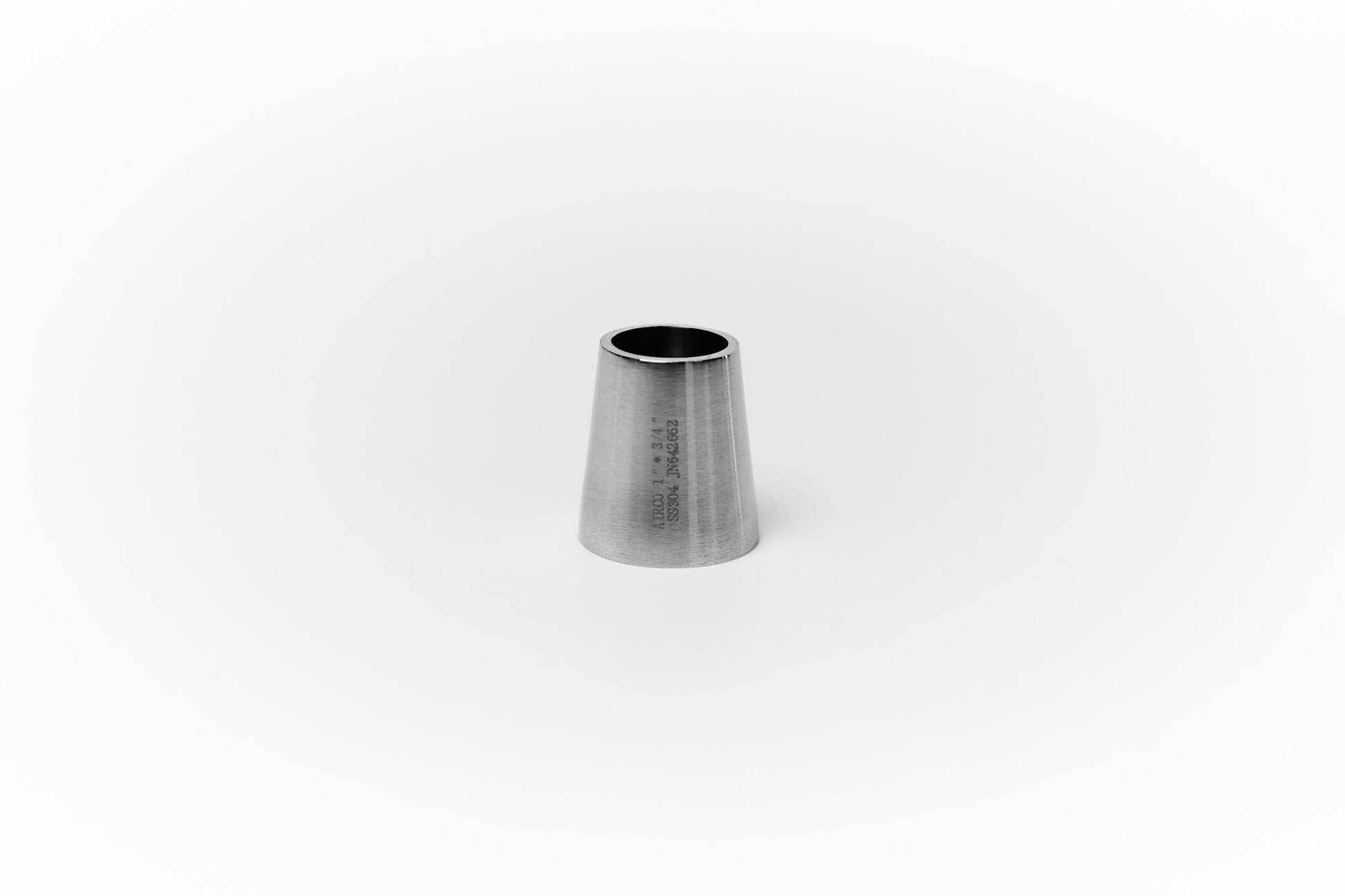

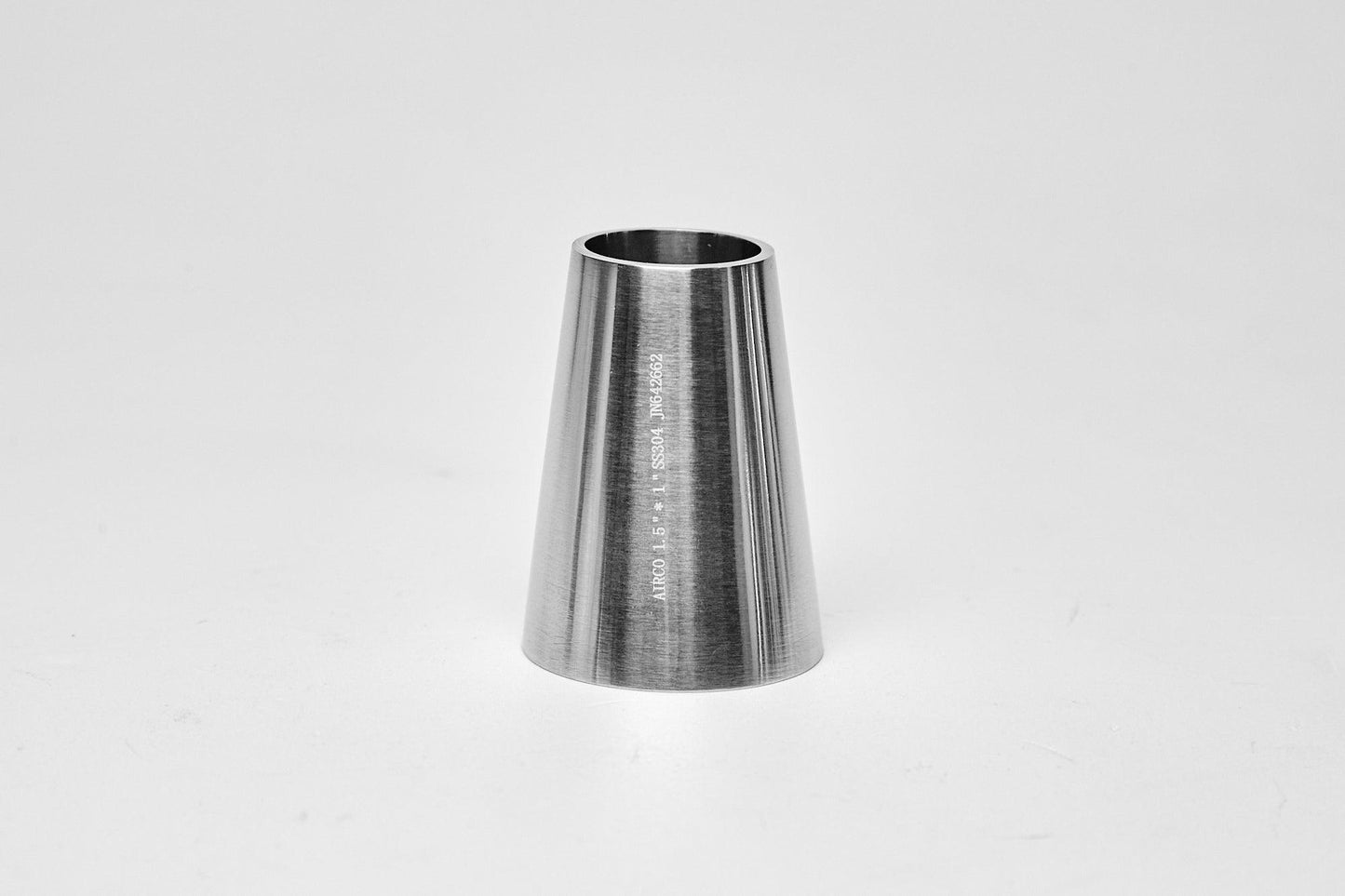

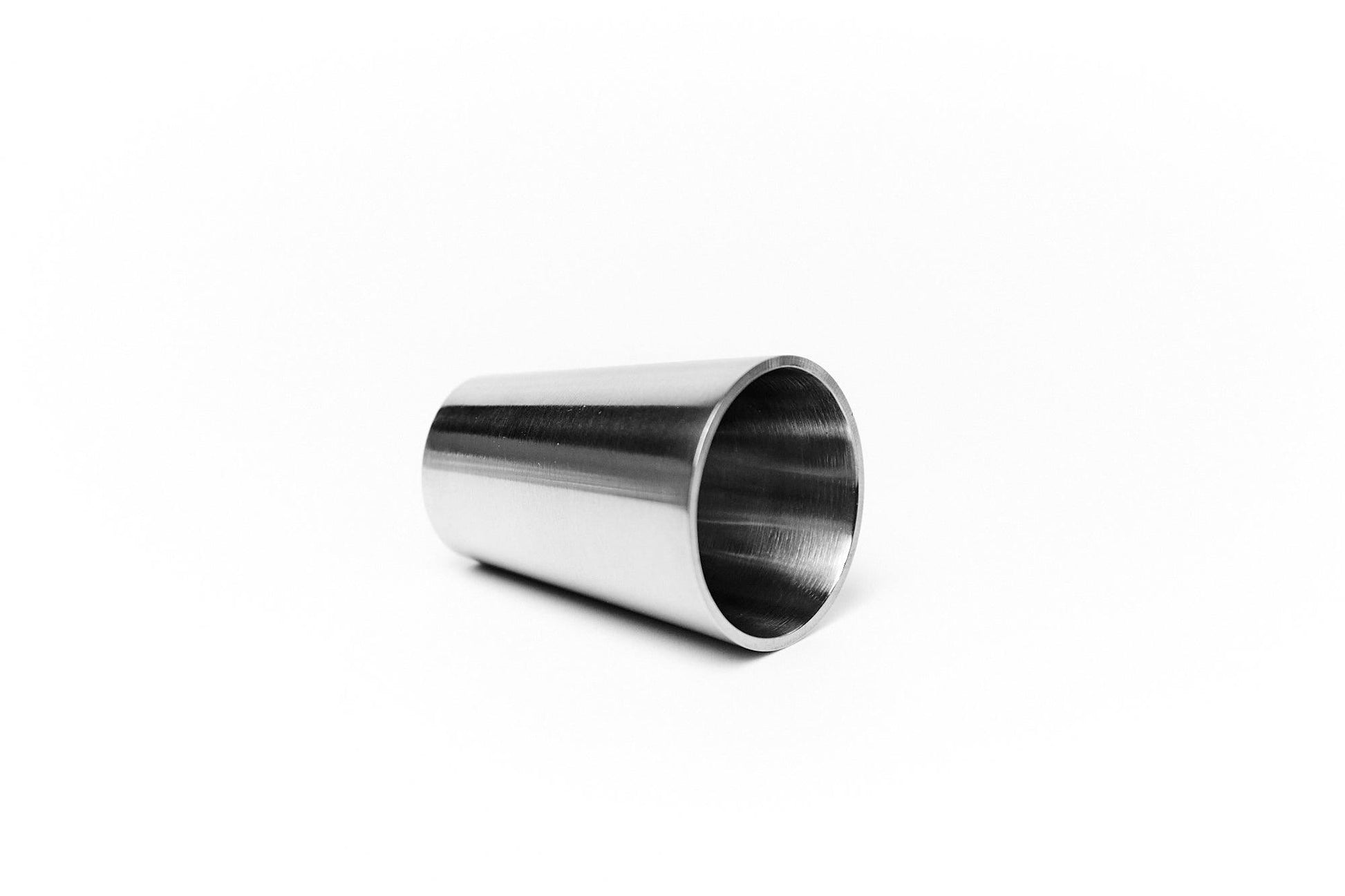

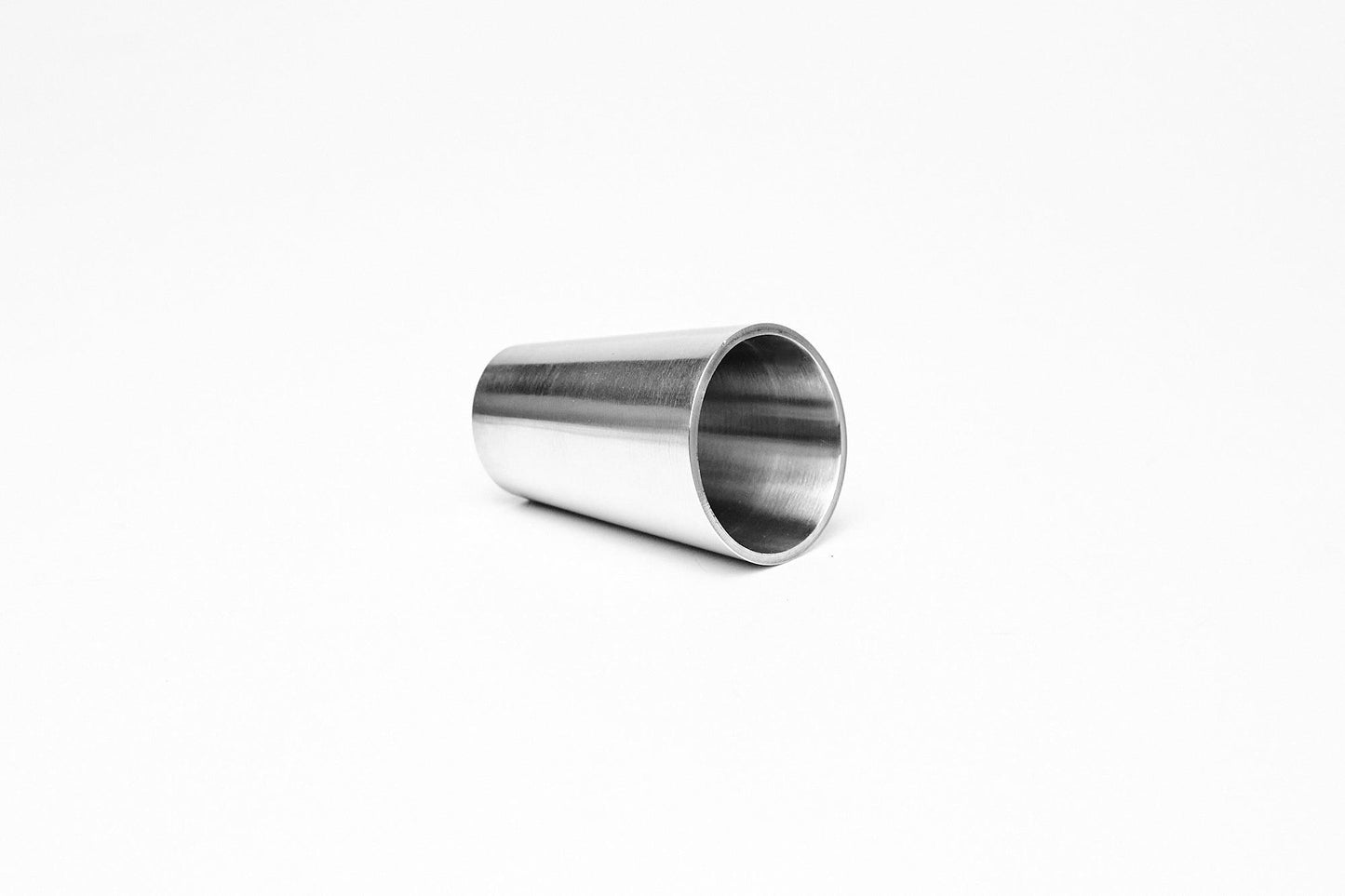

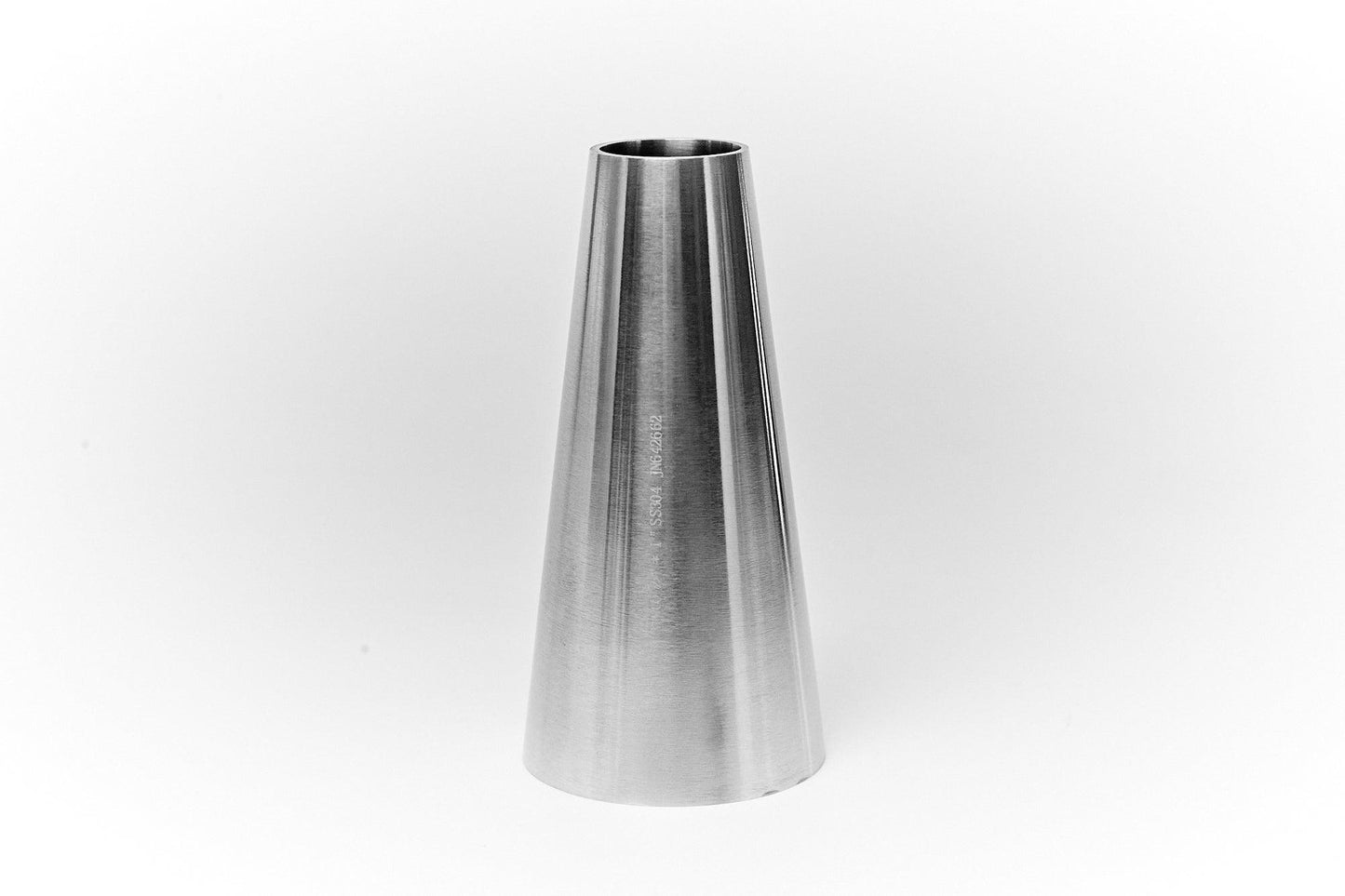

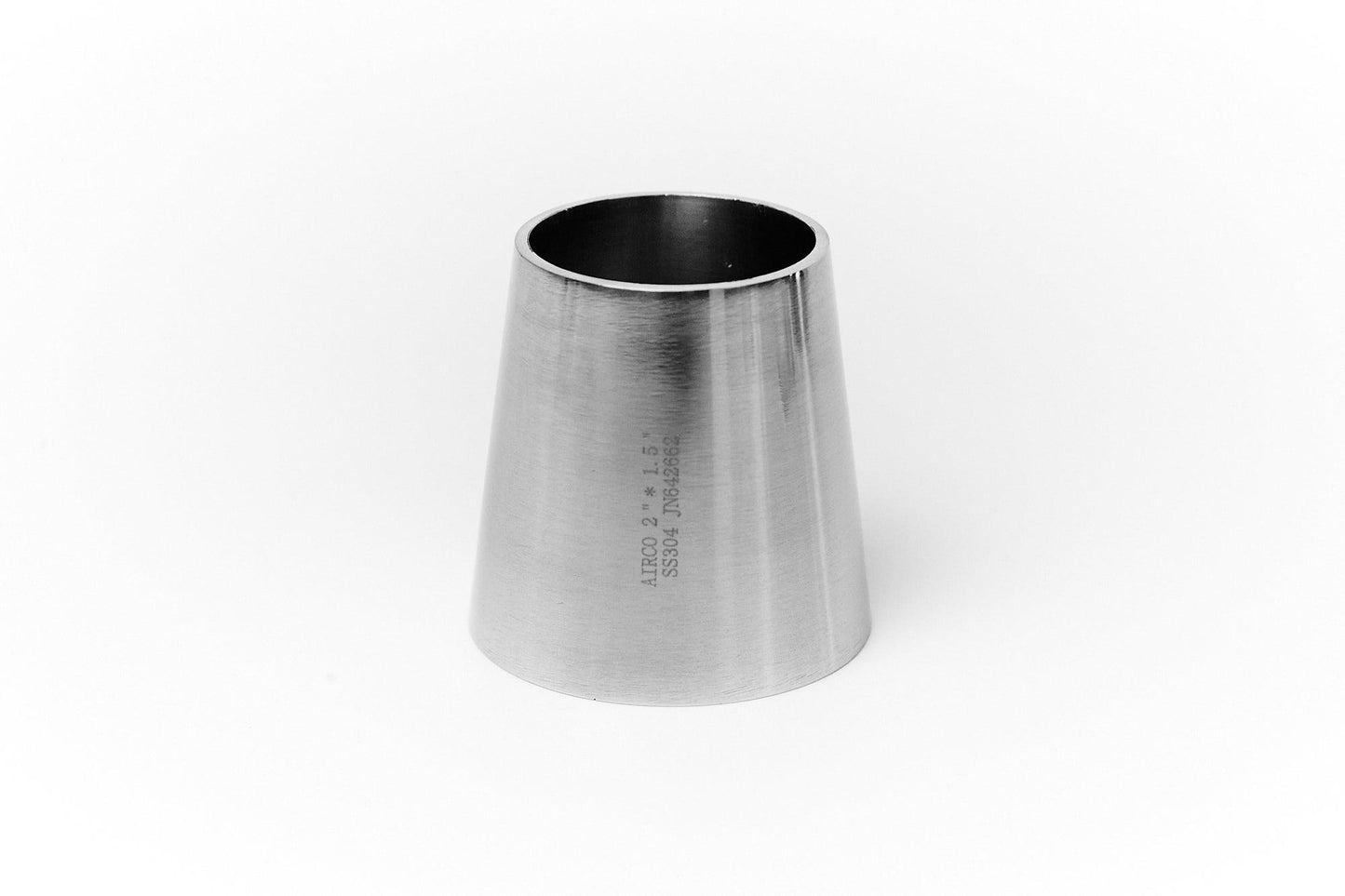

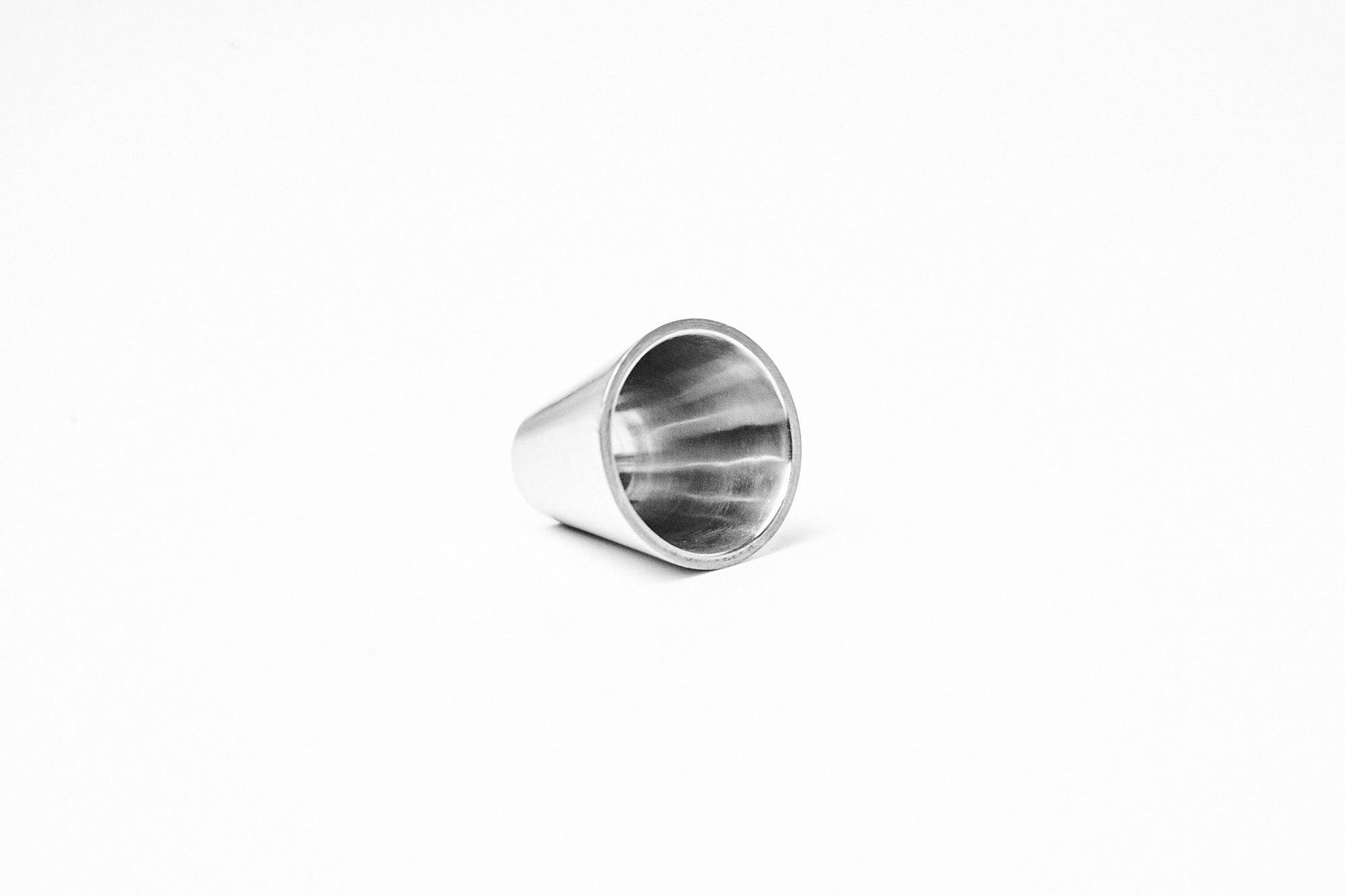

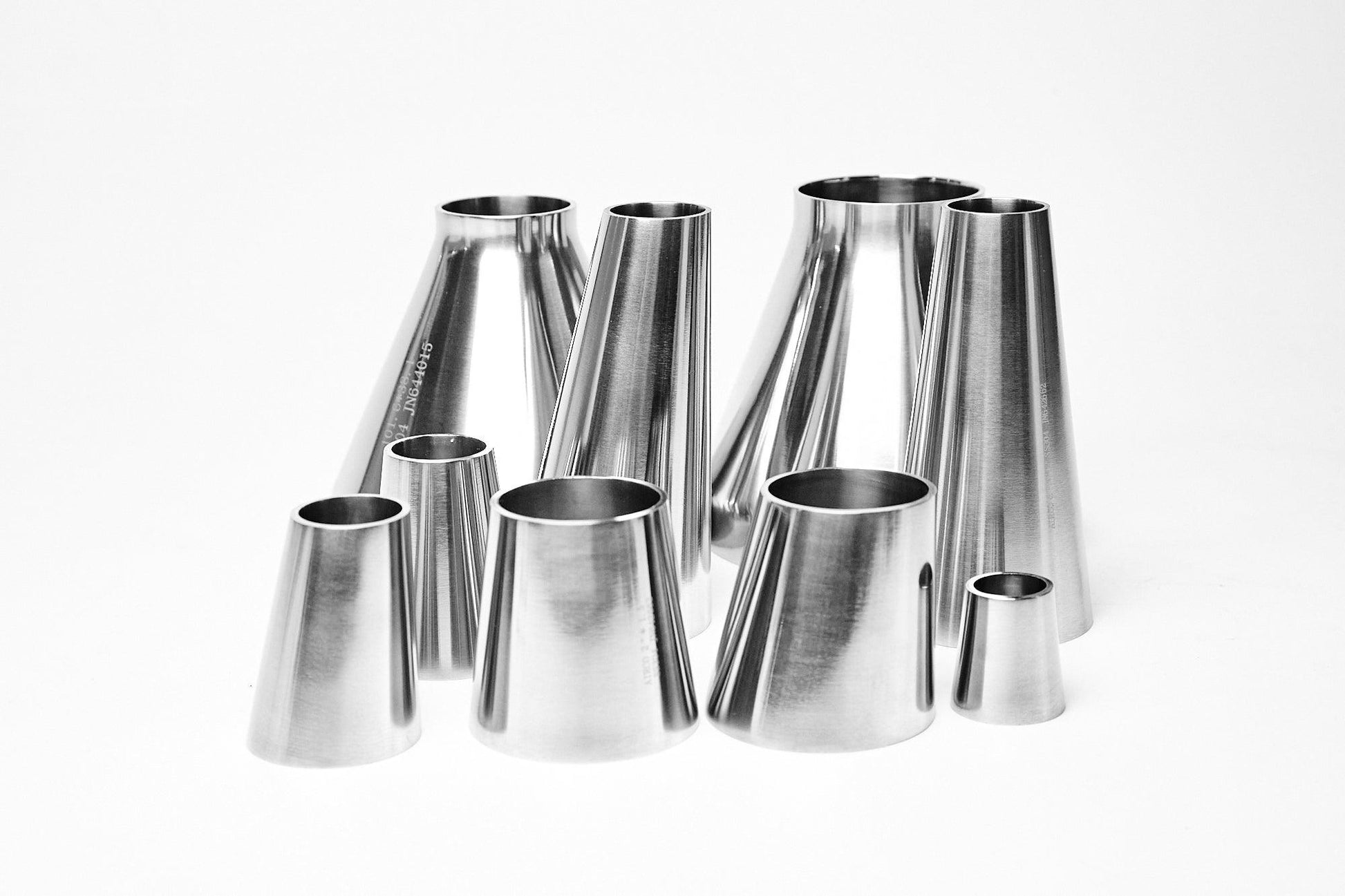

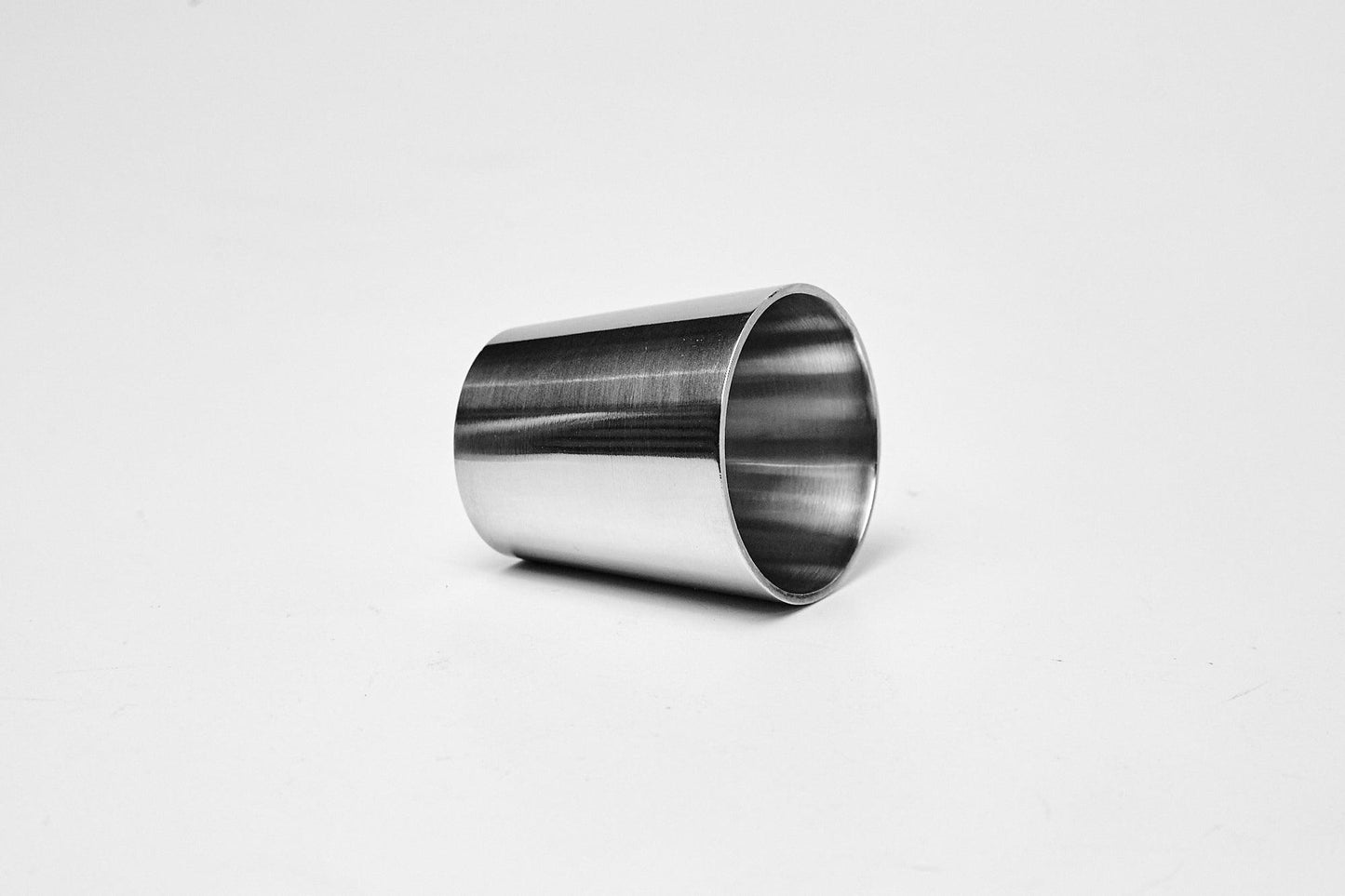

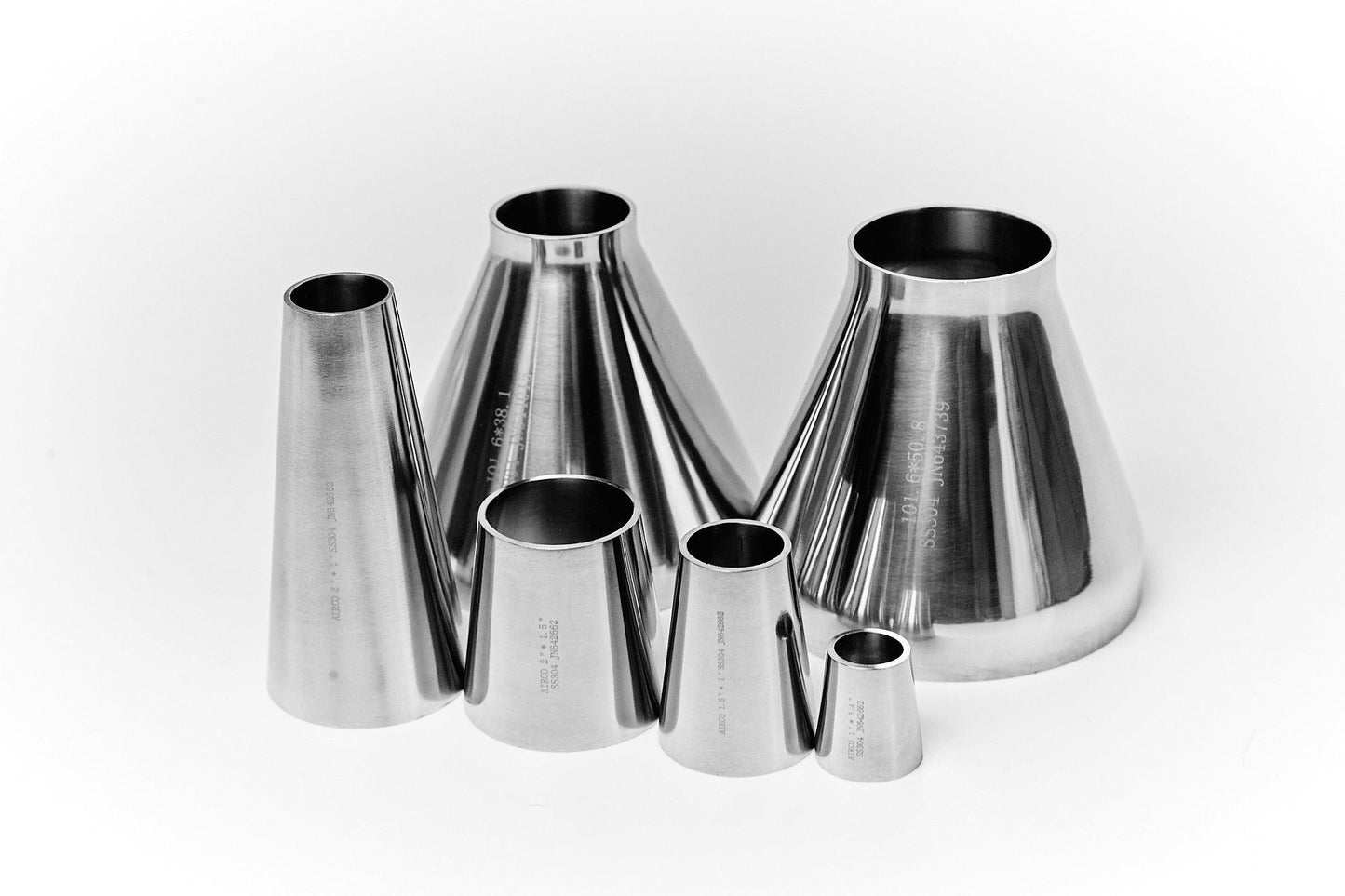

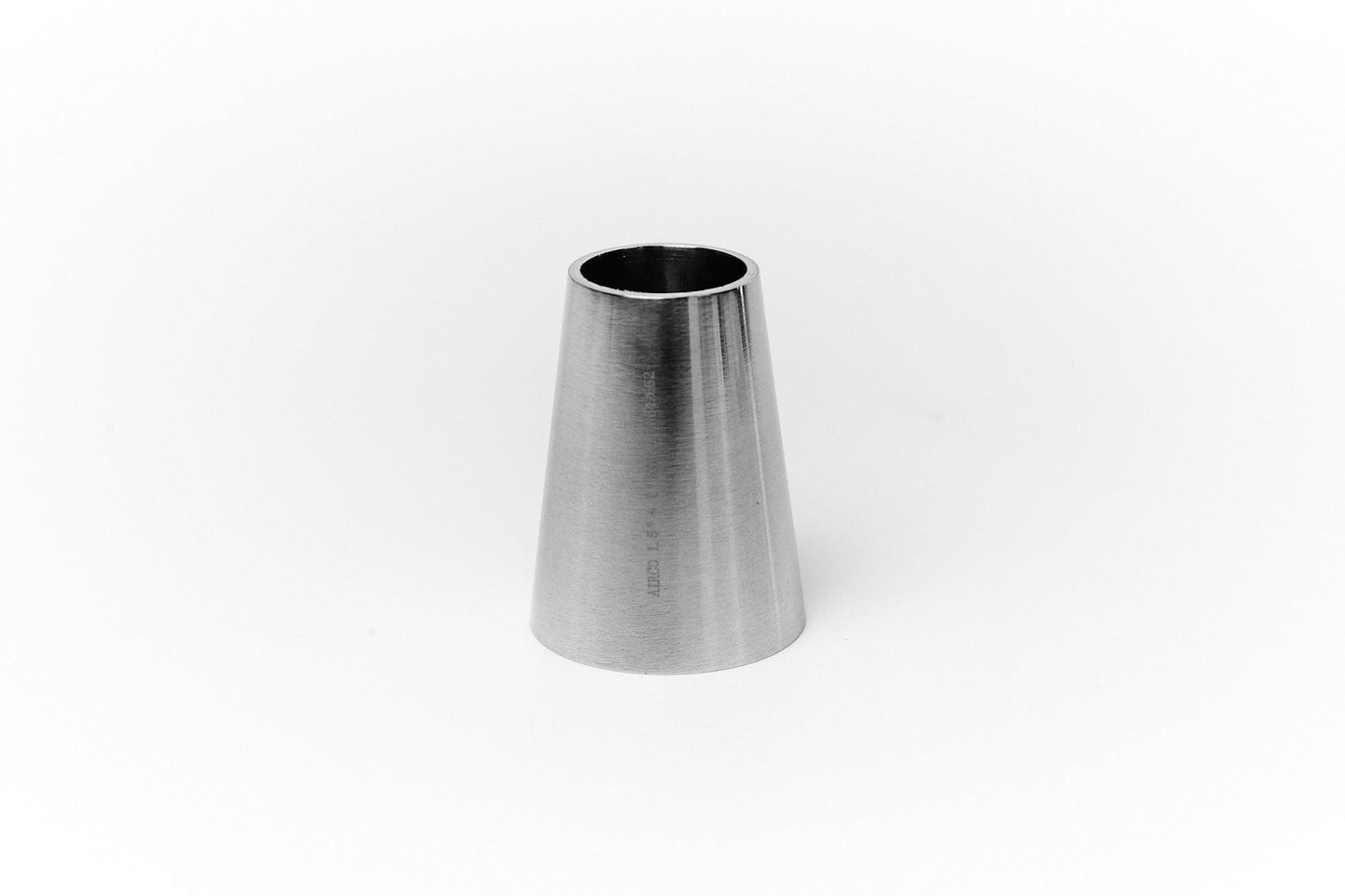

Weld Reducers - Concentric & Eccentric SS304

Weld Reducers - Concentric & Eccentric SS304

Regular price £3.76 GBP
Regular price Sale price £3.76 GBP
Sale Sold out

Overview

High-quality 304 Stainless Steel Cone Reducers with a polished finish, available in both concentric and eccentric configurations. These reducers are designed for industrial and processing applications, offering a smooth internal surface for optimal flow, clean weld-ready edges, and excellent corrosion resistance for a variety of environments.

Key Features

  • 304 Stainless Steel: Ensures corrosion resistance and durability.
  • Polished Finish: Well-polished for both visible and concealed installations.
  • Concentric & Eccentric Options: Symmetrical or offset designs to suit various installation needs.
  • Smooth Internal Surface: Optimizes flow and reduces resistance.
  • Weld-Ready Edges: Clean edges for secure welding.

Specifications

  • Material: 304 Stainless Steel
  • Finish: Polished for enhanced durability and aesthetics
  • Configuration: Available in concentric and eccentric designs
  • Manufacturing: ISO Certified production
  • Installation: Weld-ready with clean edges

Applications

  • Food and Beverage Processing: Ideal for dairy, brewing, and food manufacturing.
  • Chemical Processing: Excellent chemical resistance for various applications.
  • Industrial Manufacturing: Suitable for sanitary fluid transfer.
  • Exhaust Systems: Perfect for automotive and industrial exhaust fabrication.
  • HVAC Systems: Ideal for air handling and ventilation ducting.
  • Marine Applications: Corrosion-resistant for marine environments.
  • Pneumatic Systems: Effective for compressed air systems.
  • Water Treatment: Suitable for water processing and filtration.
  • Oil and Gas: Appropriate for non-critical fluid transfer.

Available Sizes

Concentric Options

  • 1" to 1/2" (25.4mm to 12.7mm)
  • 1" to 3/4" (25.4mm to 19.05mm)
  • 1.5" to 1" (38.1mm to 25.4mm)
  • 2" to 1" (50.8mm to 25.4mm)
  • 4" to 1.5" (101.6mm to 38.1mm)
  • 4" to 2" (101.6mm to 50.8mm)
  • 2" to 1.5" (50.8mm to 38.1mm)

Eccentric Options

  • 1.5" to 1" (38.1mm to 25.4mm)
  • 2" to 1" (50.8mm to 25.4mm)
  • 2" to 1.5" (50.8mm to 38.1mm)

Understanding Configurations

Concentric Reducers: Feature symmetrical reduction about the centerline, ideal for vertical installations where centralized flow is crucial.

Eccentric Reducers: Incorporate an offset design with one flat side, perfect for horizontal piping where preventing air pockets or maintaining consistent pipe alignment is essential.

Size Diagrams

Config Size Diagram

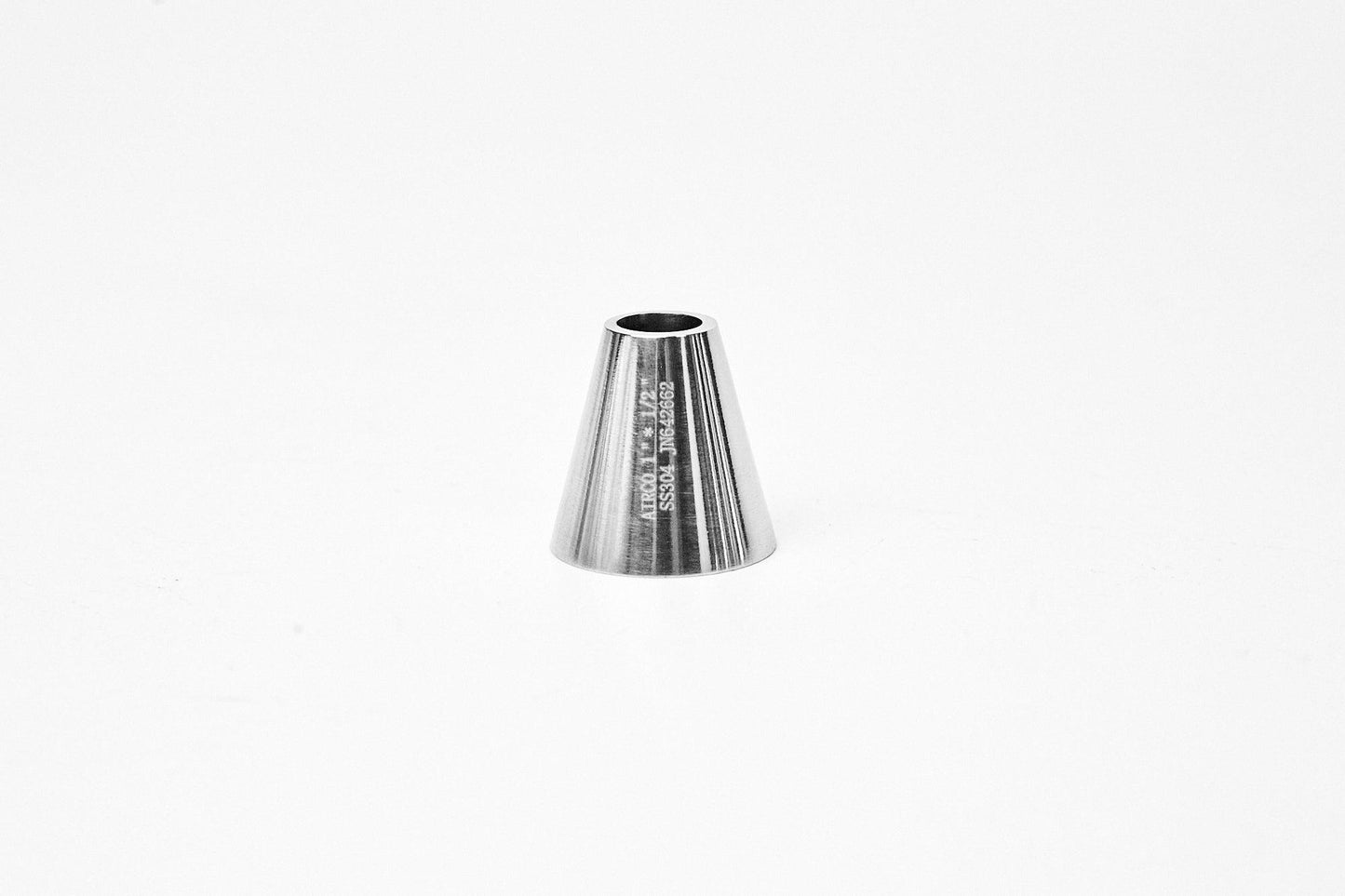

Concentric 1" to 0.5" 1 inch to 0.5 inch Concentric Reducer

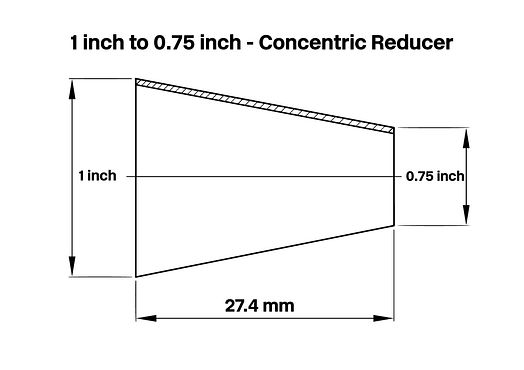

Concentric 1" to 0.75" 1 inch to 0.75 inch Concentric Reducer

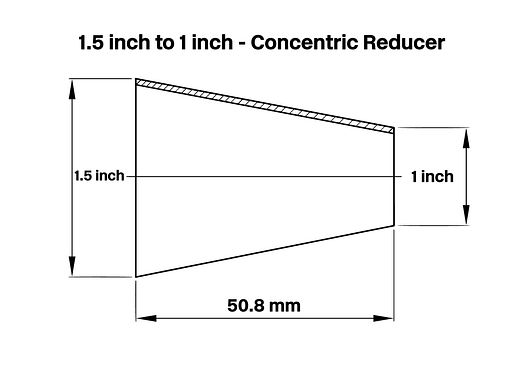

Concentric 1.5" to 1" 1.5 inch to 1 inch Concentric Reducer

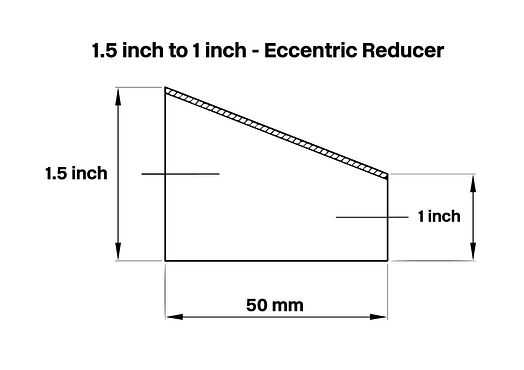

Eccentric 1.5" to 1" 1.5 inch to 1 inch Eccentric Reducer

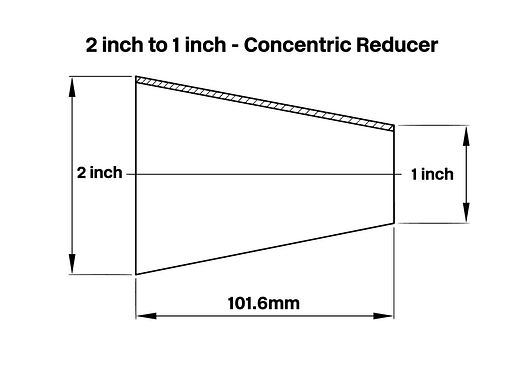

Concentric 2" to 1" 2 inch to 1 inch Concentric Reducer

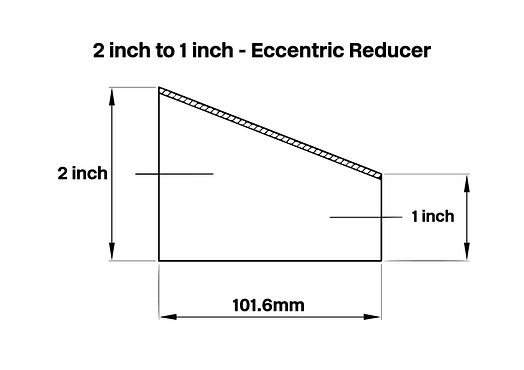

Eccentric 2" to 1" 2 inch to 1 inch Eccentric Reducer

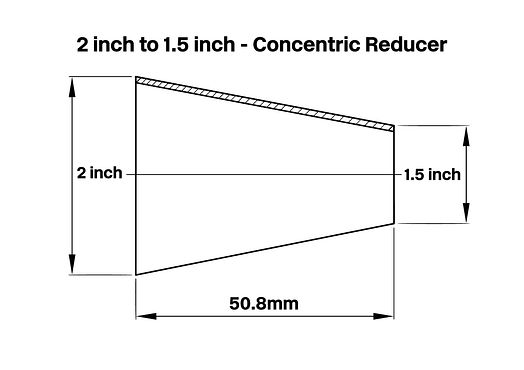

Concentric 2" to 1.5" 2 inch to 1.5 inch Concentric Reducer

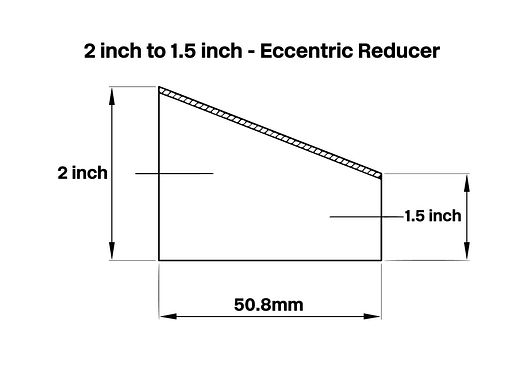

Eccentric 2" to 1.5" 2 inch to 1.5 inch Eccentric Reducer

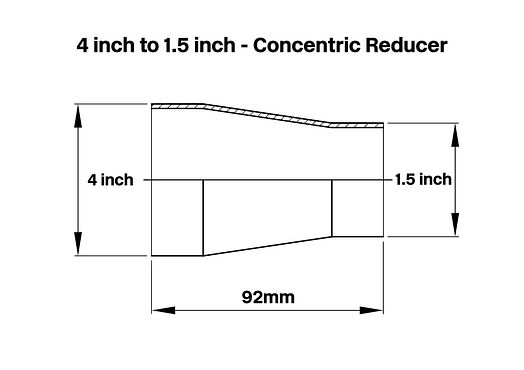

Concentric 4" to 1.5" 4 inch to 1.5 inch Concentric Reducer

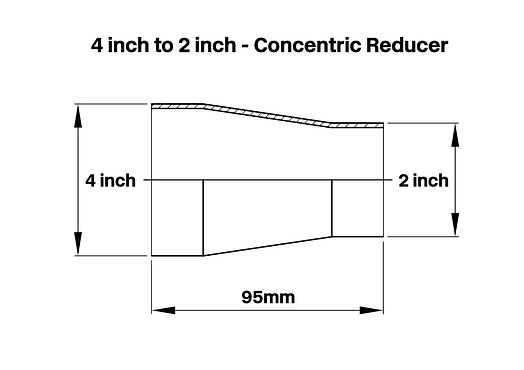

Concentric 4" to 2" 4 inch to 2 inch Concentric Reducer
